Striebel & John Flush-mounted distributor

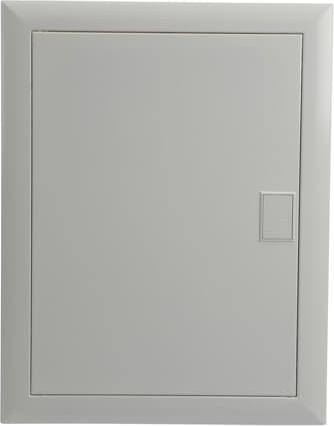

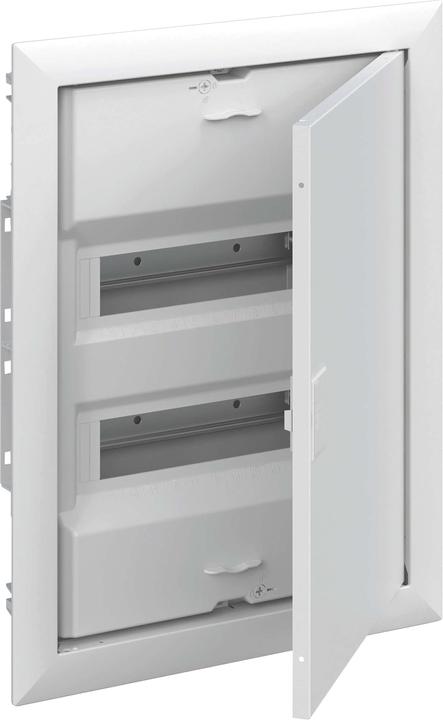

Striebel&John Flush-Mounted Distribution Board UK624N3

Manufacturer: Striebel&John
Description: Flush-mounted distribution board 24PLE IP30 with door
Type: UK624N3
Mounting type: Flush-mounted
Number of rows: 2
Width in division units: 12
Type of cover: Door
Cover design: Closed
Transparent cover/door: No
Material of housing: Plastic
Height: 497 mm
Width: 384 mm
Depth: 97 mm
Installation depth: 75 mm
Installation height: 355 mm
Installation width: 280 mm
Internal depth: 75 mm
Ground terminal block: Yes
Neutral terminal block: Yes
DIN rail: Yes
With mounting plate: No
Mounting option: Yes
EMC version: No
Color: White
RAL number: 9016
Protection class (IP): IP30
With lock: Yes
Type of locking: Push button
Signal-passing door: No

The circuit distribution boards of the UK600 series are designed for flush mounting. They impress with many new and unique technical features. A connection space that is up to 200% larger allows for easy and efficient installation of devices. The removable device carrier can be positioned within the distribution board as needed, ensuring simple installation. Clever details such as the cable entry sliders with integrated terminal holder and the variable use in solid or drywall constructions highlight the high flexibility of the distribution boards. With an optionally available interchangeable frame, the UK600 quickly becomes an eye-catcher and integrates into any environment. The distribution boards can be used for flush-mounted and hollow wall installations and carry a VDE mark. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24.
