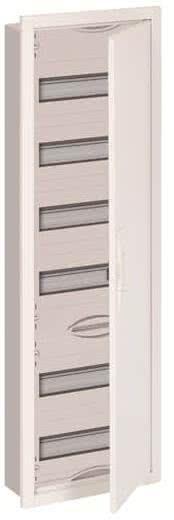

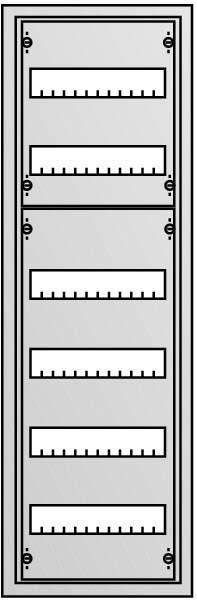

Striebel & John Flush-mounted distributor

Striebel & John Surface-Mounted Distribution Board 6 Rows U61

Manufacturer: Striebel & John
Designation: Surface-Mounted Distribution Board 6 Rows
Type: U61
Mounting Type: Flush-mounted
Number of Rows: 6
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: No
Material of Housing: Steel
Height: 984 mm
Width: 310 mm
Depth: 120 mm
Installation Depth: 120 mm
Installation Height: 984 mm
Installation Width: 310 mm
Internal Depth: 106 mm
Ground Terminal Block: Yes
Neutral Terminal Block: Yes
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: White
RAL Number: 9016
Protection Class (IP): IP31
With Lock: Yes
Type of Locking: Other
Signal-Passing Door: No

The small distribution boards of the U series are designed for flush mounting. These boards are used indoors in residential buildings, commercial buildings, or industrial applications. The housings are delivered with a mounting frame and door and feature upper, lower, and side cable entry options. All flush-mounted small distribution boards can be easily prepared for hollow wall installation using the hollow wall sets available as accessories. Each field also comes standard with cable catch options at the top and bottom, significantly simplifying cable installation. The housings meet the protection class IP31. Color white RAL 9016, powder-coated.
