Steinel 067144

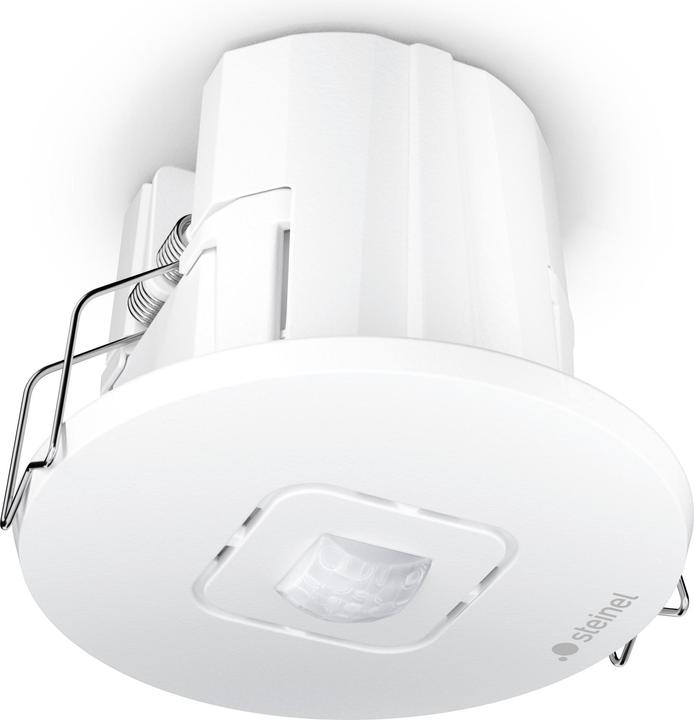

Steinel presence detector IRMicroOffice 067144

Manufacturer: Steinel
Designation: Presence detector DALI-2 APC WS EN
Type: IRMicroOffice 067144
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: Other
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Colour: White
RAL number (similar): 9003
Transparent: No
Anti-creep protection/back field monitoring: Yes
Animal track: No
Staircase monitoring: No
Response brightness adjustable: Yes
Teach function for response brightness: Yes
Self-learning switch-off delay: No
Optimum mounting height: 2.8 m
Max. range to one side: 3 m
Max. range to the other side: 3 m
Range to one side: 3 m
Max. range frontal: 3 m
Detection field diameter on floor: 4 m
Detection angle vertical: 90°
Detection angle horizontal: 360°
Min. on-time: 5 s
Max. off-time: 60 min
Max. duty cycle: 60 min

Steinel presence detector IRMicroOffice 067144: more details
Slim, precise and intelligent. Demanded by architects and planners, made by Steinel. The IR Micro Office fulfills many wishes. Its low installation height makes it perfect for applications where no disruptive installations on the ceiling are desired. The micro precision lens measures just 15 x 15 mm. The 360° infrared presence detector covers 36 m². As a DALI-2 Single Master Application Controller, it controls up to 20 DALI devices in broadcast mode. In this way, it offers optimum lighting management for individual room solutions, including constant light control. Settings and networking are easily realized via Bluetooth Mesh.
