Product details

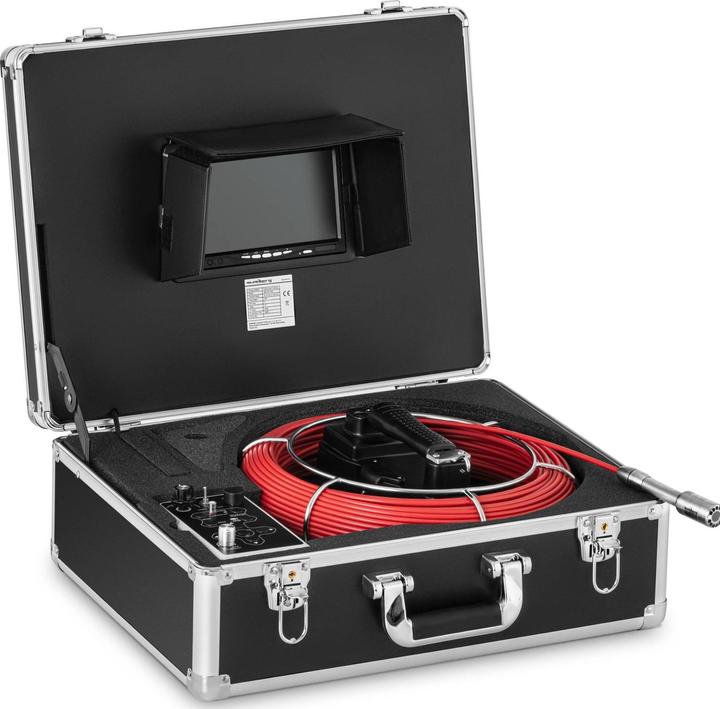

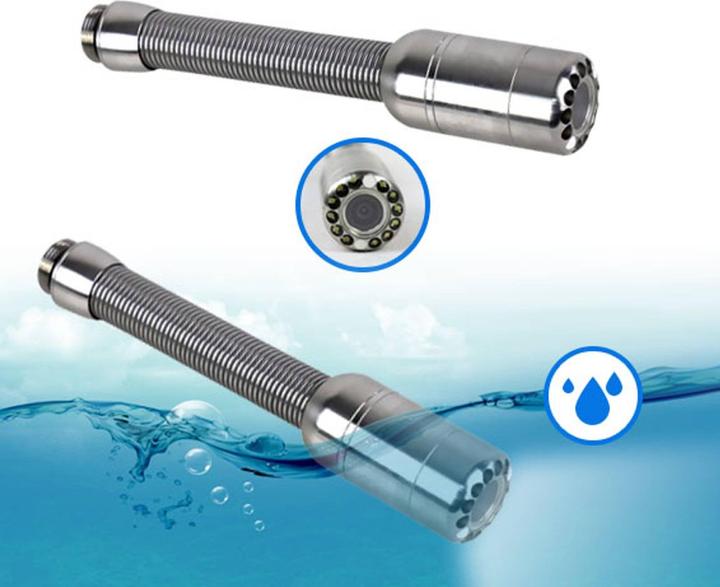

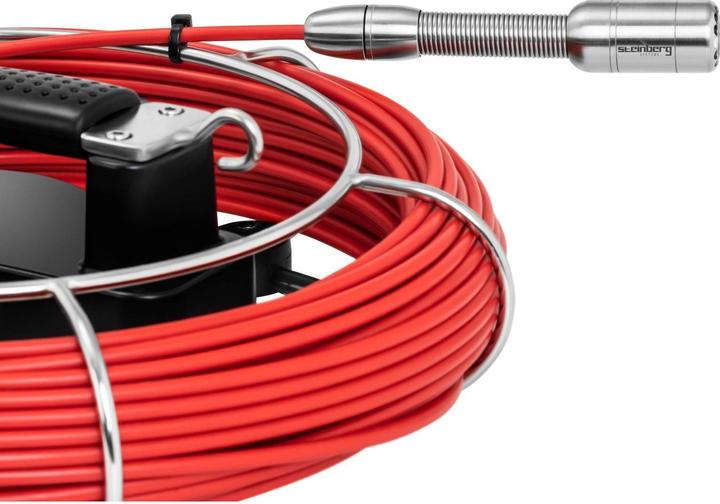

With the sewer camera, you have the inside of the pipe on screen. The cause of a blockage or damage is often hidden deep inside the pipe system. The SBS-EC-500 pipe camera from Steinberg Systems is the first choice for gaining an impression of pipework and inspecting damaged areas in detail. The camera head made of alloyed aluminium is guided into the pipe using a 30 m fibreglass cable. The sewer camera is suitable for drains with different diameters. 12 LED lamps integrated in the camera head provide the necessary light. You can view the inside of the pipes on the LCD TFT monitor.
Material | ABS, Aluminium alloy, Copper, Fibreglass, Polypropylene, Stainless steel |
Endoscope camera type | Endoscope camera |
Camera cable | 50 m |
Probe diameter | 5 mm |
Item number | 36980847 |
Manufacturer | Steinberg |
Category | Endoscope camera |
Manufacturer no. | SBS-EC-500 |
Release date | 7.7.2023 |
Colour | Black, Red |
Material group | Glass, Metal, Plastic |
Material | ABS, Aluminium alloy, Copper, Fibreglass, Polypropylene, Stainless steel |
Endoscope camera type | Endoscope camera |
Camera cable | 50 m |
Probe diameter | 5 mm |
Display type | TFT Color Monitor |
Transmission type | MicroSD card |
Additional properties | Display, USB, Waterproof |
Power supply | Rechargeable battery operated |
Battery type | Li-ion |
Capacity | 4.40 Ah |
Battery | Rechargeable battery |
Battery category | Device batteries |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 30 m cable, 7" TFT monitor, Base unit, Battery with charger, Cable, Cable reel, Camera head 23 mm, Connection cable, Control box, Guide stars (40, 80 mm), Manual, Microphone, Remote control, SD card 8 GB, Tube camera SBS-EC-500, Turnscrew, USB stick |
Length | 47.30 cm |
Width | 18 cm |
Height | 39.50 cm |
Weight | 7840 g |
Ingredients | With the sewer camera, you have the inside of the pipe on screenThe cause of a blockage or damage is often hidden deep in the pipe system. The SBS-EC-500 pipe camera from Steinberg Systems is the first choice for gaining an impression of pipework and inspecting damaged areas in detail. The camera head made of alloyed aluminium is guided into the pipe using a 30 m fibreglass cable. The sewer camera is suitable for drains with different diameters. 12 LED lamps integrated in the camera head provide the necessary light. You can view the inside of the pipes on the LCD TFT monitor.Technical detailsPower supply: 100 - 240 V / 50/60 Hz 1.5 AA battery: Lithium Ion 4.400 mAh / 12.6 VMaterial housing, case: ABSMaterial camera head: aluminium alloyMaterial cable: fibreglass, copper, PP sheathMaterial cable reel: stainless steelDisplay: LCDType display: 7" TFT colour monitorSize sensor: 1/4 "Dimensions head: 23 x 120 mmRotation angle camera head: 90°Length probe with cable: 30 mDiameter probe cable: 5 mmViewing angle: 105°Memory: SD card 256 GB (8 GB included)USB port: YesLED light: YesNumber of LEDs: 12Automatic switch-off: NoProtection class: IP68Film format: MP4Magnification: 10x, digitalGuide stars: 40 / 80 mmScope of deliveryTubular camera SBS-EC-500, 7" TFT monitor, base unit, control box, connection cable, cable, camera head 23 mm, guide stars (40, 80 mm), battery with charger, SD card 8 GB, USB stick, microphone, screwdriver, remote control, 30 m cable, cable reel, operating instructions. |
Specifications may include unverified machine translations.
