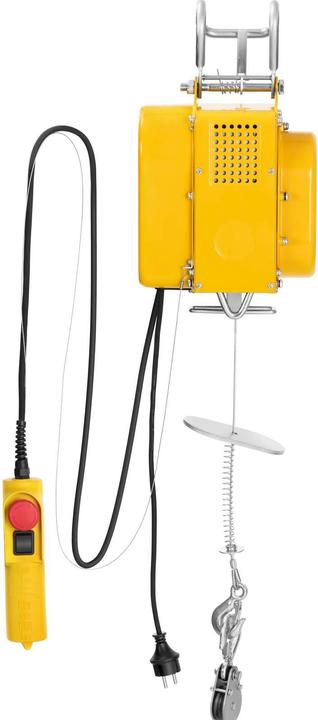

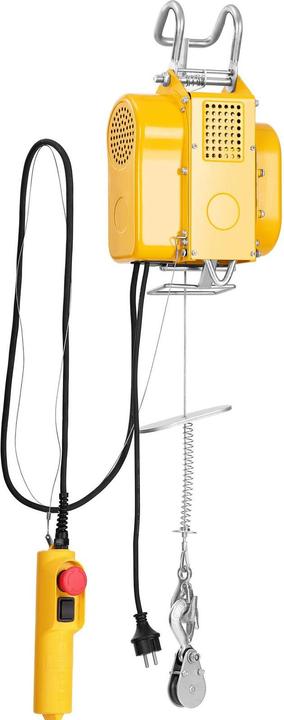

Steinberg Electric Hoist - 1050 W - 600 kg - 18 m
Product details
Electric hoist - 1,050 W - 600 kg - 18 m
The electric hoist SBS-EH-600/18 from Steinberg Systems is ideal for lifting heavy loads in the warehouse and workshop. With its 18 m steel cable, the electric hoist has a load capacity of 300 kg, which can be increased to 600 kg by using the included pulley. The wire rope hoist is specially designed for indoor use and can be mounted on the wall, a scaffolding pole, or on a swivel arm.

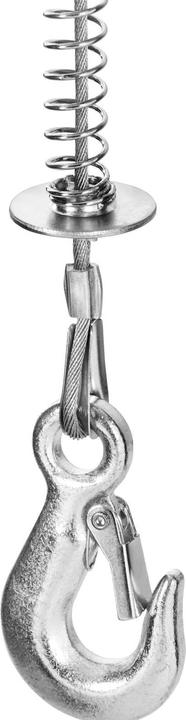

The cable hoist has a 1,050 W motor that enables it to lift heavy loads up to 300 kg to a height of up to 18 m. With the electric wire rope hoist, work in the workshop and warehouse can be done in no time at all. With a hoisting speed of 8 m/min, you are always one step ahead. The solid steel cable is twist-resistant, low-wear, and particularly durable.
When the pulley is inserted, the lifting height is halved to 6 m and the lifting speed to 4 m/min. At the same time, the load on the hoist increases to 600 kg, allowing heavy loads to be lifted. This means that the cable hoist has a doubled load capacity when using the pulley.
Technical details:
Model: SBS-EH-600/18
Voltage: 230 V
Load capacity - single draft: 300 kg
Load capacity - deflection pulley: 600 kg
Max. lifting height - single draft: 18 m
Max. lifting height - deflection pulley: 6 m
Lifting speed - single draft: 8 m/min
Lifting speed - deflection pulley: 4 m/min
Material: Steel, copper
Rope material: Steel
IP protection class: IP54
Cable diameter: 4.5 mm
Motor power: 1,050 W
Max. load: 600 kg
Delivery contents: Electric hoist SBS-EH-600/18, instruction manual.
Rope hoist + workshop crane type | Hoist |
Load capacity | 600 kg |
Lifting height | 18 m |
Power supply | Electrical connection |
Weight | 20.30 kg |
Item number | 36980956 |
Manufacturer | Steinberg |
Category | Hoists + workshop cranes |
Manufacturer no. | SBS-EH-600/18 |
Release date | 7.7.2023 |
Exact colour description | Black |
Colour | Black |
Material | Copper, Steel |
Material group | Metal |
Rope hoist + workshop crane type | Hoist |
Load capacity | 600 kg |
Lifting height | 18 m |
Main Hub | 8 m/min |
Strand material | Tightrope |
Power supply | Electrical connection |
Mains voltage | 230 V |
Power | 1050 W |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 1800 cm |
Weight | 20.30 kg |
Ingredients | Up with the load - easy for the wire rope hoist from Steinberg SystemsThe SBS-EH-600/18 wire rope hoist from Steinberg Systems is ideal for lifting heavy loads in warehouses and workshops. With its 18 m steel cable, it has a pulling force of 300 kg, which can be increased to 600 kg by using the pulley supplied. The electric cable winch has been specially designed for indoor use and can be attached to the wall, a scaffolding pole or a swivel arm. The wire rope hoist has a 1050 W motor, which allows heavy loads of up to 300 kg to be lifted at a height of up to 18 m. The electric wire rope hoist makes light work of employees in the workshop and warehouse. With a lifting speed of 8 m/min, you are always in the lead. The solid steel cable, which is protected against twisting, is low-wear and therefore particularly durable. When the return pulley is inserted, the lifting height is halved to 6 m and the lifting speed to 4 m/min. At the same time, the load capacity of the wire rope hoist is increased to 600 kg, allowing heavy loads to be lifted. The wire rope hoist therefore has twice the pulling force when using the return pulley. Technical detailsVoltage: 230 VHoisting speed without guide pulley: 8 m/minPulling capacity without guide pulley: 300 kgHoisting speed with guide pulley: 4 m/minPulling capacity with guide pulley: 600 kgMax. hoisting height without guide pulley: 18 mMax. hoisting height with guide pulley: 6 mLoad hook: : 6 mLoad hook: Yes Emergency stop switch: Yes Material: Steel, copper Max. load capacity: 600 kg Motor power: 1050 W Rope diameter: 4.5 mm Rope material: Steel Protection class: IP54 Scope of deliveryWire hoist SBS-EH-600/18, operating instructions. |
