Steinberg Electric Chain Hoist - 500 kg - 3 m
Product details

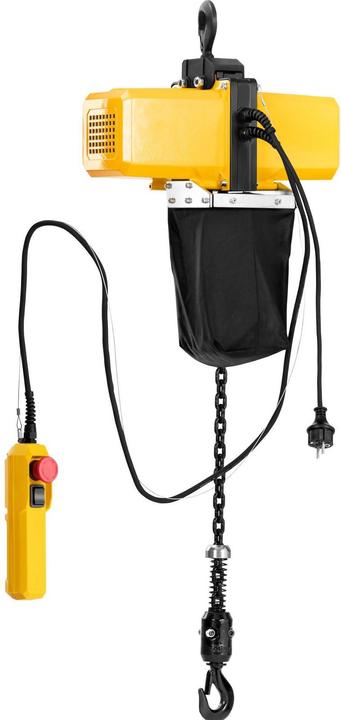

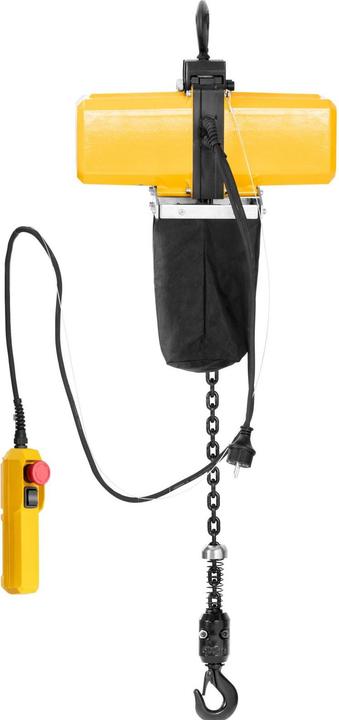

Electric chain hoist - 500 kg - 3 m
The electric chain hoist SBS-ECH-500/3 from Steinberg Systems lifts and lowers heavy loads up to 500 kg reliably and quickly. It can be used flexibly and is controlled comfortably and safely with a remote control, featuring durable and stable chains. With a lifting height of 3 m, this electric chain hoist is perfect for warehouses, garages, workshops, working at height, and many other applications. It can be easily attached indoors via a sturdy hook.
The powerful 680 W electric motor enables fast and effortless lifting and lowering of heavy objects with a lifting speed of up to 3 m/min. The remote control is connected to the chain hoist via a long cable, allowing you to control the electric hoist flexibly and from a safe distance. In case of danger, the emergency switch on the remote control can be pressed to stop the hoist. The load hook is equipped with a safety interlock that ensures hazard-free transport of the attached goods.
The stainless steel chain of the electric chain hoist measures 6.3 mm in diameter and is low-wear and durable, making it particularly suitable for lifting heavy loads of up to 500 kg. The backstop enables safe lifting of different goods. The steel housing is extremely resistant, reducing the risk of wear marks such as scratches, chipping, and corrosion. The cable hoist is rated with protection class IP54 and is protected against dirt and water; it also has thermal overload protection.
Technical details:
- Model: SBS-ECH-500/3
- Chain diameter: 6.3 mm
- Voltage: 230 V
- Load: 500 kg
- Max. lifting height: 3 m
- Material: Steel, copper
- IP protection class: IP54
- Motor power: 680 W
- Max. load: 500 kg
- Max. lifting speed: 3 m/min
Delivery contents:
- Electric chain hoist SBS-ECH-500/3
- Instruction manual.
Rope hoist + workshop crane type | Pulley block |
Load capacity | 500 kg |
Lifting height | 3 m |
Power supply | Electrical connection |
Weight | 18.50 kg |
Item number | 34182027 |
Manufacturer | Steinberg |
Category | Hoists + workshop cranes |
Manufacturer no. | SBS-ECH-500/3 |
Release date | 17.5.2023 |
Exact colour description | Grey |
Colour | Grey |
Material | Copper, Steel |
Material group | Metal |
Rope hoist + workshop crane type | Pulley block |
Load capacity | 500 kg |
Lifting height | 3 m |
Main Hub | 3 m/min |
Strand material | Chain |
Power supply | Electrical connection |
Mains voltage | 230 V |
Power | 680 W |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 300 cm |
Height | 300 cm |
Weight | 18.50 kg |
Ingredients | Lift more easily with the electric chain hoistThe SBS-ECH-500/3 electric chain hoist from the Steinberg Systems brand reliably and quickly lifts and lowers heavy loads of up to 500 kg. It can be used flexibly, can be operated conveniently and safely with a remote control and impresses with its hard-wearing, stable chains. With a lifting height of 3 m, the electric chain hoist is perfect for warehouses, garages, workshops, employees working at height and many other applications. It is very easy to attach indoors using a sturdy hook. The powerful 680 W electric motor enables heavy objects to be lifted and lowered quickly and effortlessly at a lifting speed of up to 3 m/min. The remote control is connected to the chain hoist via a long cable. If the situation becomes dangerous, the emergency switch on the remote control can be pressed and the hoist stops. The load hook is equipped with a safety interlock to ensure the safe transport of the attached goods. The stainless steel chain of the electric chain hoist with a diameter of 6.3 mm is low-wear and durable, making it particularly suitable for lifting heavy loads of up to 500 kg. The backstop enables different goods to be lifted safely.Technical detailsVoltage: 230 VLoad: 500 kgChain diameter: 6.3 mmMax. lifting height: 3 mLoad hook: : 3 mMax. lifting height: 3 mLoad hook: Yes Emergency stop: YesMaterial: Steel, copper Max. load: 500 kgMotor power: 680 WhMax. lifting speed: 3 m/minProtection class: IP54 Scope of deliveryElectric chain hoist SBS-ECH-500/3, operating instructions. |
