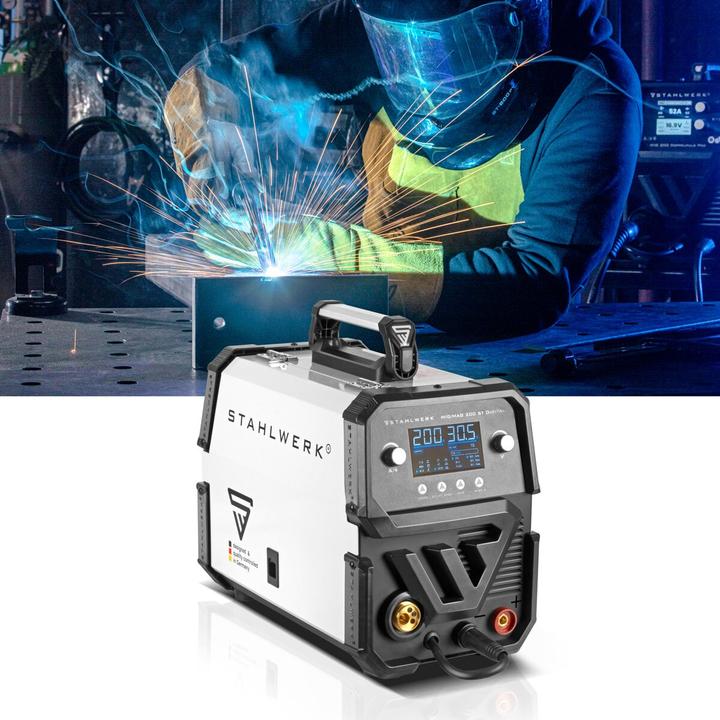

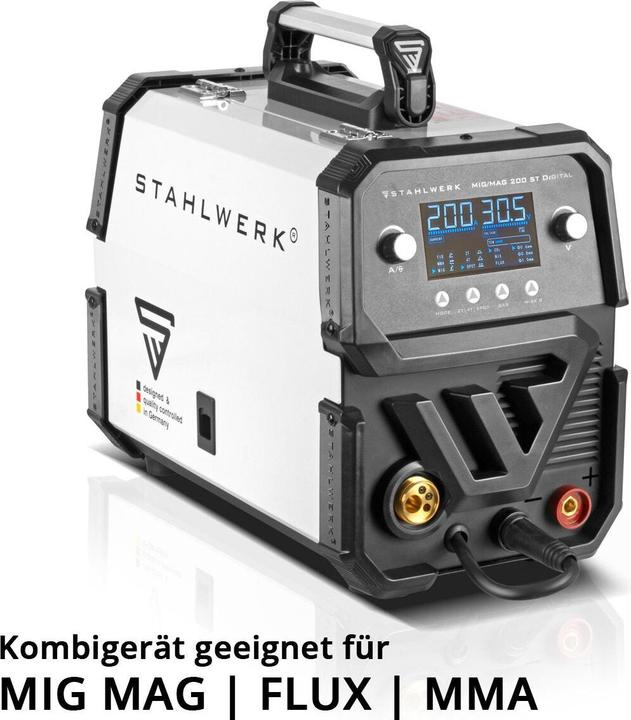

Stahlwerk Welding machine MIG MAG 200 ST Digital IGBT shielding gas with 200 A
Supplied by
Priara GmbH DE
free shipping
Properties
MIG MAG - gas metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG: e.g. argon) or active (MAG: e.g. CO2) gases. Gas and welding wire come from one torch head and enable welding work to be carried out with just one hand.
Technical data
Model: Steelworks MIG MAG 200 ST digital welding machine
Output current MIG / MMA: 40-200 A
Protection class: IP21S

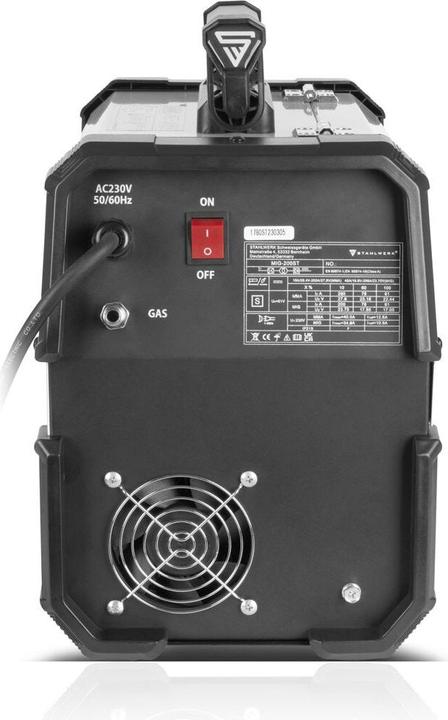

Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
Mains frequency: 50/60 Hz
Maximum rated current (I1max) MIG/MAG: 34.6 A / 40 A
Maximum effective mains current (I1eff) MIG/MAG: 10.9 A / 12.6 A
Weight: 10.6 kg

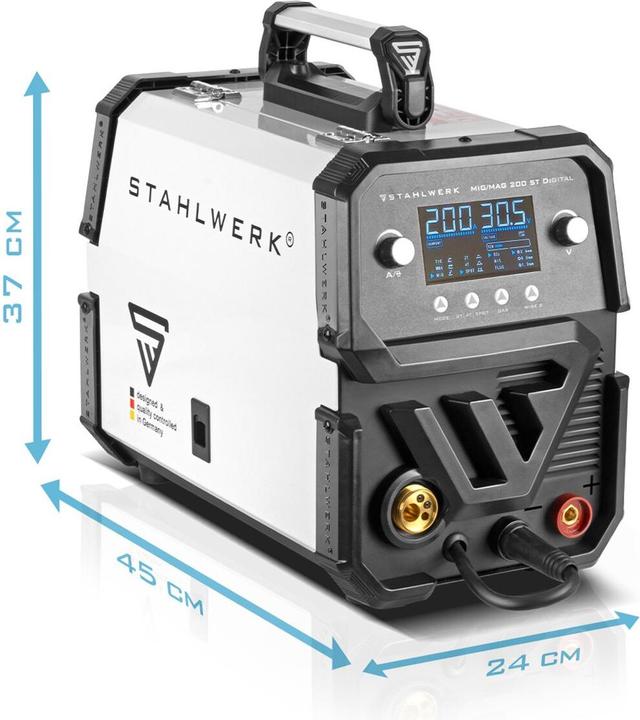

Dimensions L x W x H (mm): 450 x 240 x 370
Mains connection: Schuko type CEE 7/7
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TüV Rheinland LGA Products GmbH

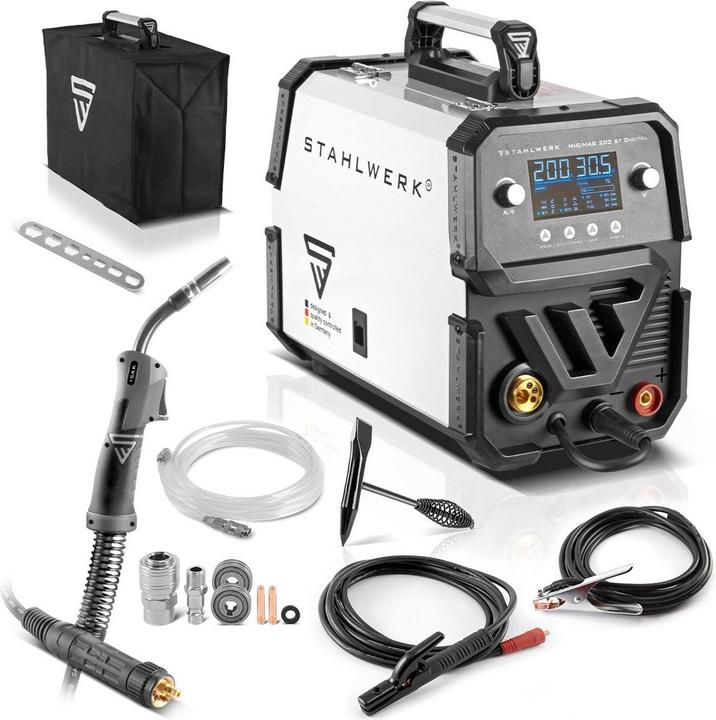

Scope of delivery

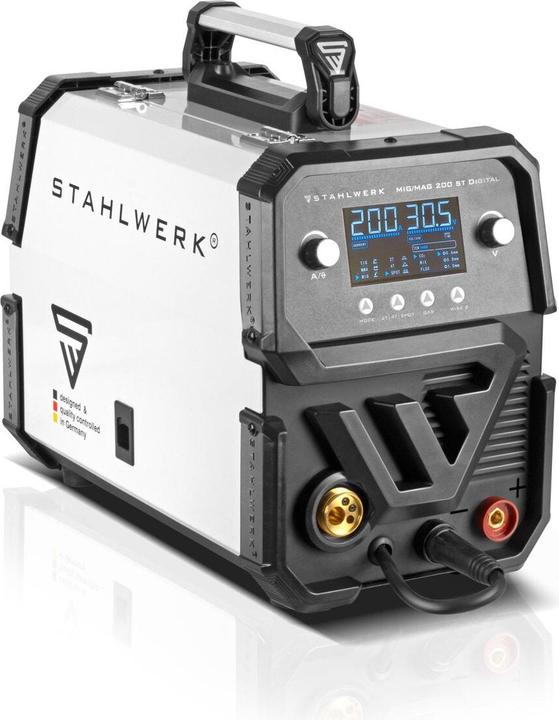

1 x Stahlwerk MIG MAG 200 ST digital welding machine
1 x AK-15 professional MIG welding torch with 3 m hose package and Euro central connection
1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG MAG torch): 1 x - gas nozzle, 1 x contact tip 0.8 mm, 1 x gas nozzle holder
1 x earth cable 3 m (Ø 25 mm²)
1 x electrode holder 3 m (ø 25 mm²)
1 x Gas connection hose with quick coupling 5 m
1 x connection set for pressure reducer
2 x contact tip (0.8 / 1.0 each)
1 x installation spanner
1 x slag hammer

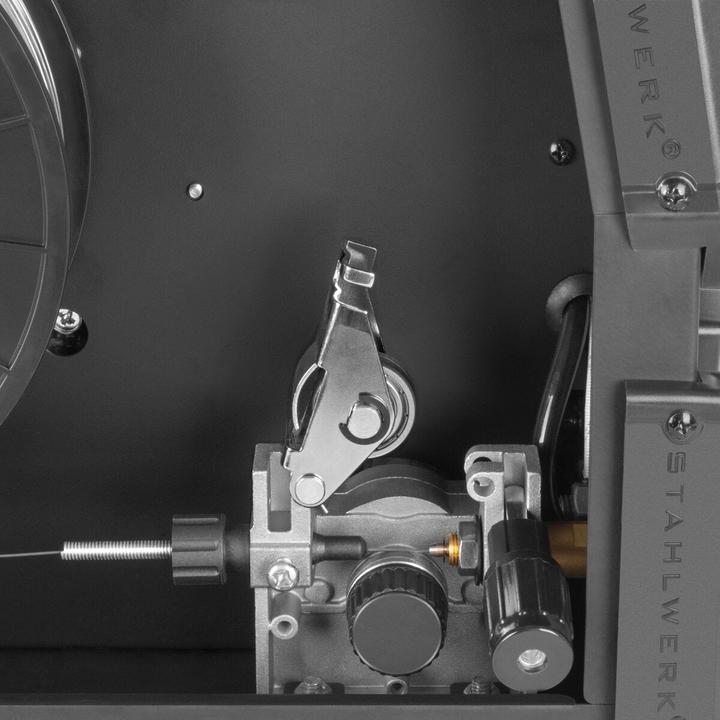

3 x wire guide rollers 0.6 mm / 0.8 mm, 1.0 mm / 1.2 mm, (0.8 mm / 1.0 mm is already installed in the device)
1 x protective cover
Voltage | 230 V |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 40 A |
Item number | 46785798 |
Manufacturer | Stahlwerk |
Category | Welding machines |
Manufacturer no. | 1132 |
Release date | 24.6.2024 |
Sales rank in Category Welding machines | 28 of 453 |
Colour | White |
Exact colour description | White |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 40 A |
Power source | Electrical connection |
Voltage | 230 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.45 m |
Width | 0.24 m |
Height | 0.37 m |
Weight | 10.60 kg |
Length | 61 cm |
Width | 53 cm |
Height | 41 cm |
Weight | 18.69 kg |
