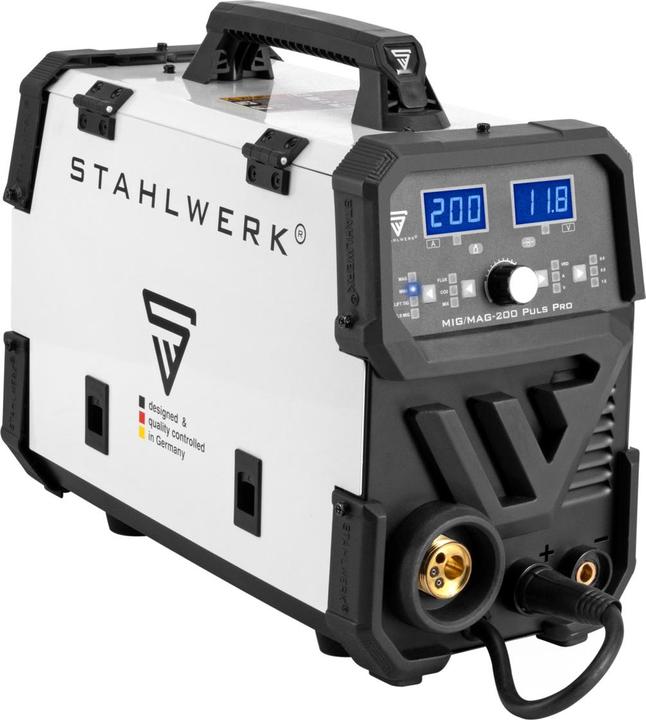

Stahlwerk Welding machine MIG MAG 200 Pulse Pro IGBT shielding gas combi device with 200 A

Ratings
BrandMore from Stahlwerk
Test reportsVery good based on 1 test
Delivered between Tue, 17.6. and Fri, 20.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Properties

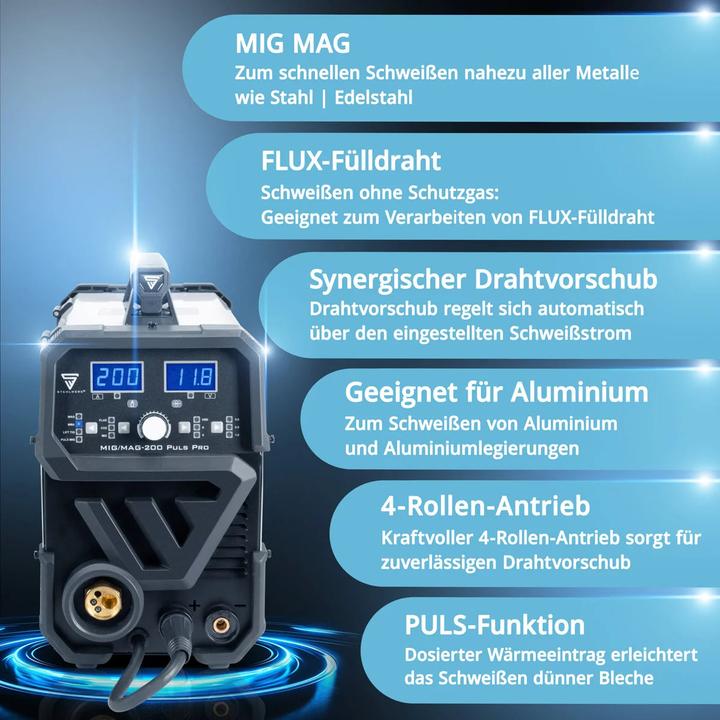

Steelworks MIG/MAG 200 Pulse Pro IGBT welding machine fully synergic 5 in 1 combination device with genuine 200 ampere 2 reel drive / cored wire, MIG MAG, ARC MMA, Lift TIG, MIG Pulse for aluminium welding

Technical data

Output current MIG/MAG (0.6 / 0.8 / 1.0): 20 - 100A / 40 - 200A / 50 - 200A
Pulse MIG (1.0): 20 - 170A
MMA/LIFT-TIG: 20 - 200A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Maximum mains current (I1max) MIG / MMA / LIFT-TIG: 32A / 38A / 25A
Maximum effective mains current (I1eff) MIG / MMA / LIFT-TIG: 12.4A / 14.7A / 9.7A
Weight: 10.8 kg

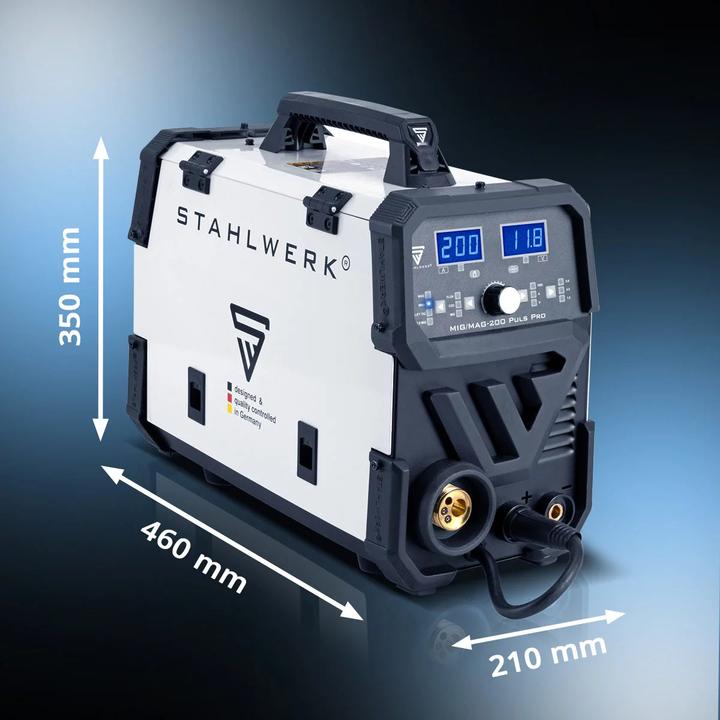

Dimensions L x W x H (mm): 460 x 210 x 350
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)

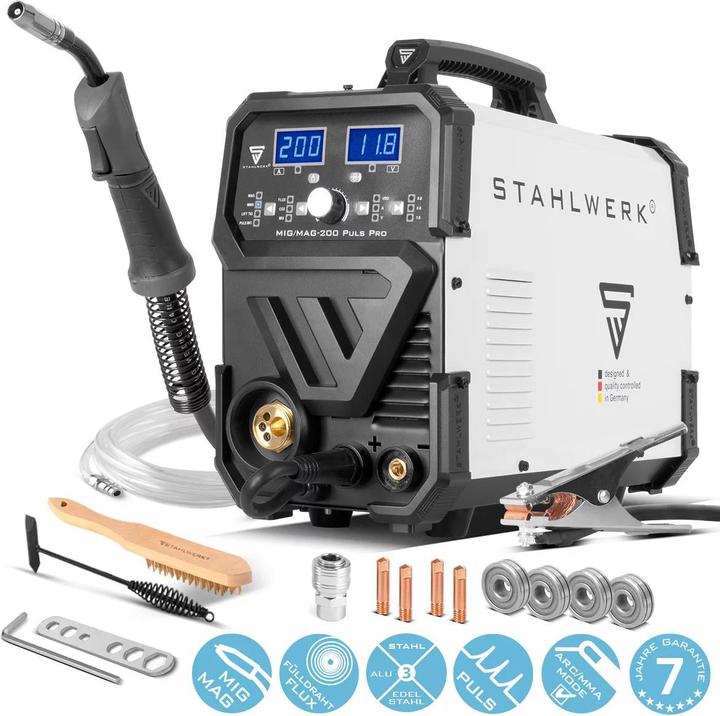

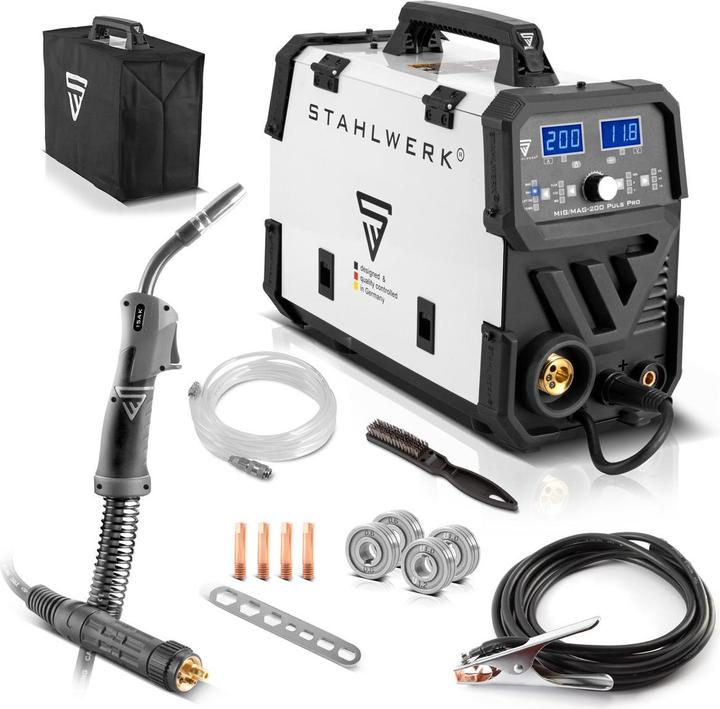

Scope of delivery

1 x Steelworks MIG/MAG 200 Puls Pro IGBT welding machine

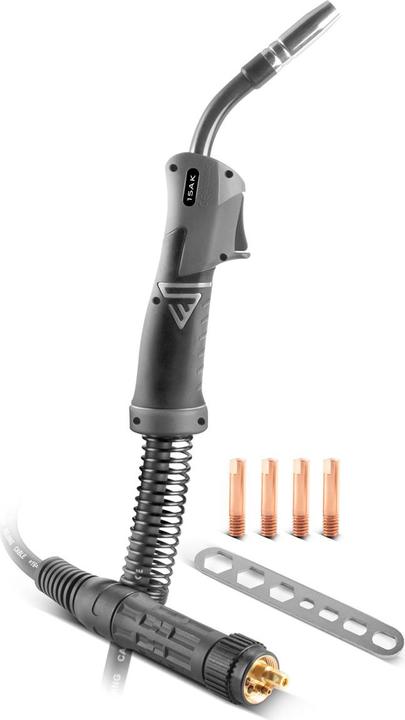

1 x Professional MIG welding torch AK-15 / hose package 3 metres
1 x earth cable 3 metres
1 x contact tip M6 x 28 - ø 1.0 mm for aluminium
1 x contact tip M6 x 28 - ø 0.6 mm for steel
1 x contact tip M6 x 28 - ø 0.8 mm for steel
1 x contact tip M6 x 28 - ø 1.0 mm for steel
2 x wire guide rollers 0.8 mm & 1.0 mm with 'V' profile (already installed in the device)
1 x steel mill wire guide rollers set of 4 V 0.6/0.8 + U 1.0/1.2
1 x wire brush
1 x Gas connection hose with quick coupling 5 metres
1 x protective cover

Key specifications

Voltage
230 V
Max. Welding current
200 A
Min. welding current
20 A
Item number
46785801

General information

Manufacturer
Stahlwerk
Category
Welding machines
Manufacturer no.
1138
Release date
24.6.2024

Colour

Colour
White
Exact colour description
White

Welding device properties

Max. Welding current
200 A
Min. welding current
20 A

Power supply

Power source
Electrical connection
Voltage
230 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
0.46 m
Width
0.21 m
Height
0.35 m
Weight
10.80 kg

30-day right of return
7 years Warranty (Bring-in)

Compare products

Goes with

Reviews & Ratings

Warranty score

How often does a product of this brand in the «Welding machines» category have a defect within the first 24 months?

Source: Digitec Galaxus
  • 1.Mytovosn
    0 %
  • 2.Stahlwerk
    1.4 %
  • 3.Güde
    2 %

Warranty case duration

How many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?

Source: Digitec Galaxus
  • 1.Stahlwerk
    20 days
  • Güde
    Not enough data
  • Mytovosn
    Not enough data

Return rate

How often is a product of this brand in the «Welding machines» category returned?

Source: Digitec Galaxus
  • 1.Mytovosn
    0 %
  • 2.Güde
    1 %
  • 3.Stahlwerk
    2.4 %
Source: Digitec Galaxus

Translation: machine translated
Very good92/100
Heimwerker Praxis Logo
Rank 1 out of 2Heimwerker PraxisZwei Schweißgeräte für Heim- und Handwerker im TestReleaseApril 2024
  • PositiveCompact
  • PositiveHigh-quality processed

    The two welding machines MIG/ MAG 200 Puls Pro + and MTM-200 ST from Stahlwerk clearly show in the test that they were manufactured by a "specialist". They offer many functions, are powerful and both achieve a good to very good value for money.

    Go to complete test report
