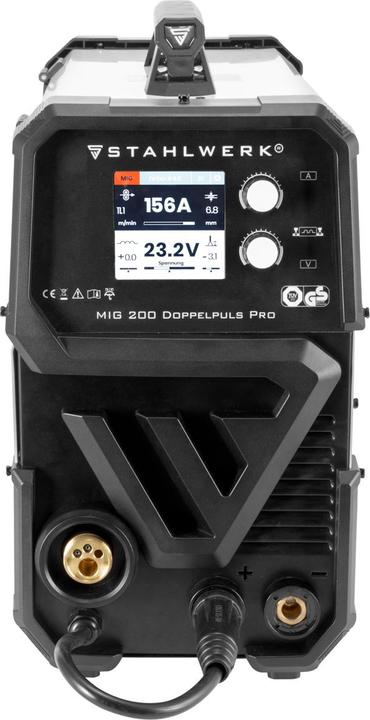

Stahlwerk Welding machine MIG MAG 200 double pulse Pro fully synergic 200 ampere

Properties:

The powerful STAHLWERK MIG 200 double-pulse Pro gas-shielded arc welder features a convenient pulse and double-pulse function, operating at up to 200 amps. The special double pulse function enables clean, precise welding of thin sheets. This function is particularly useful when processing aluminum, as the welding current is regulated in optimum timing with the wire feed, effectively breaking up the oxide layer.

Technical data:

Output current MIG / MIG pulse / MMA: 50 - 200 A (MIG) / 30 - 170 A (MIG pulse) / 20 - 180 A (MMA)
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 38 A
Maximum effective mains current (I1eff): 14.7 A
Open circuit voltage (U0): 62 V
Weight: 17.25 kg
Dimensions L x W x H (mm): 590 x 240 x 430 mm
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)

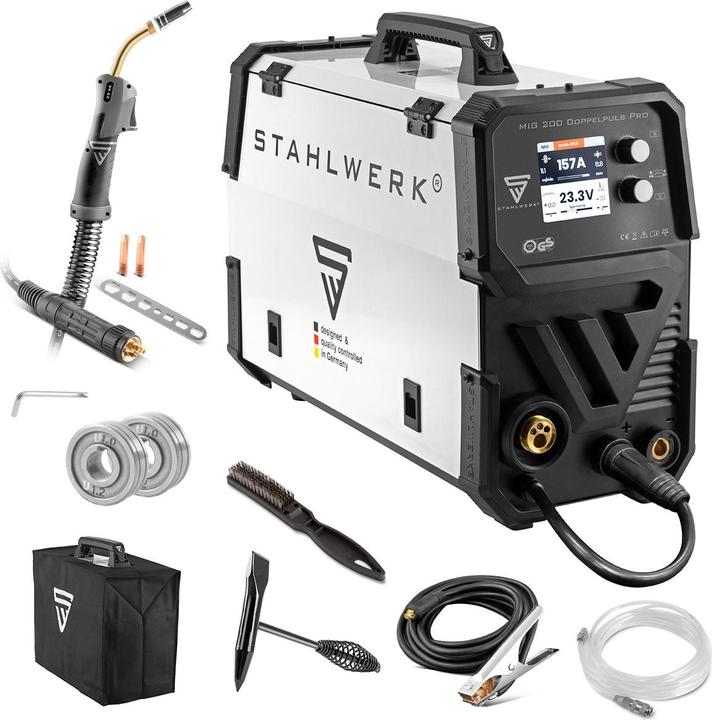

Scope of delivery:

1 x STAHLWERK MIG 200 double pulse Pro
1 x AK-25 professional MIG welding torch / 3 metre hose package with Euro central connection
1 x 3-piece MIG accessory set (already pre-assembled on the MIG/MAG torch)

• 1 x gas nozzle
• 1 x contact tip 0.8 mm
• 1 x gas nozzle holder

1 x gas connection hose with quick coupling 3 metres
1 x earth cable 3 metres (25 mm² with 13 mm mandrel)
1 x contact tip M6 x 28 x 0.8 mm
1 x contact tip M6 x 28 x 1.0 mm
2 x wire guide rollers 0.8 & 1.0 mm with V-profile for steel (already installed in the device)
2 x wire guide roller 1.0 & 1.2 mm with U-profile for aluminum
1 x wire brush
1 x assembly spanner
1 x protective cover.
