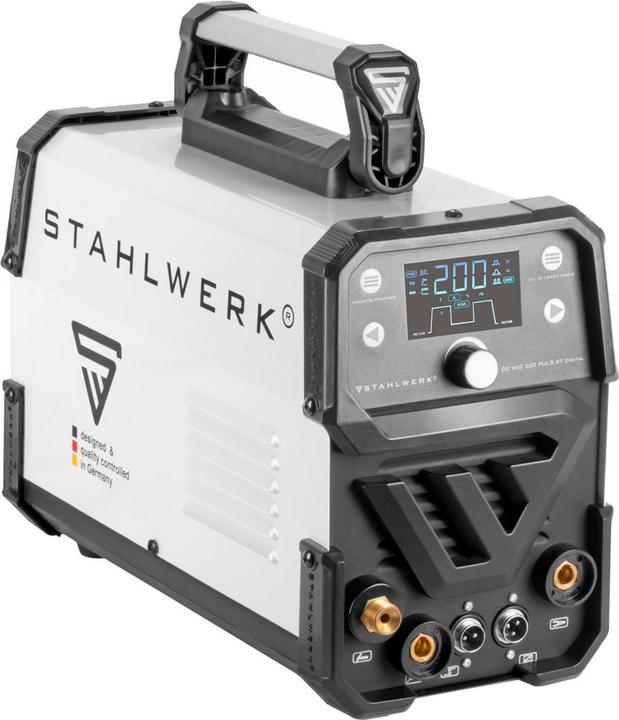

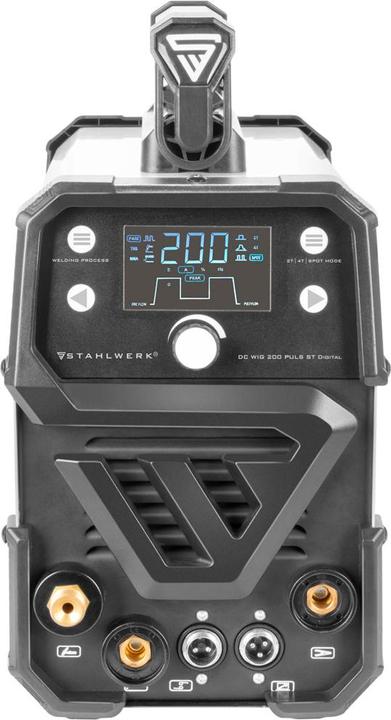

Stahlwerk Welding machine DC TIG 200 Pulse ST Digital MMA Spot and pulse function

Properties

DC TIG welding - direct current (DC). Welding of almost all metals, such as steel, stainless steel, copper and many more. Note: Not suitable for aluminium - an AC/DC device is required for this.

Note

The device is not intended for use in residential areas where power is supplied via a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

Technical data

Model: Steel mill welder DC TIG 200 Pulse ST Digital
Output current TIG: 8 - 200 A / MMA: 20-200 A
TIG duty cycle (40°C): 20% at 200 A / 100% at 89.5 A
MMA duty cycle (40°C): 10% at 200 A / 100% at 63 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Weight: 9.7 kg

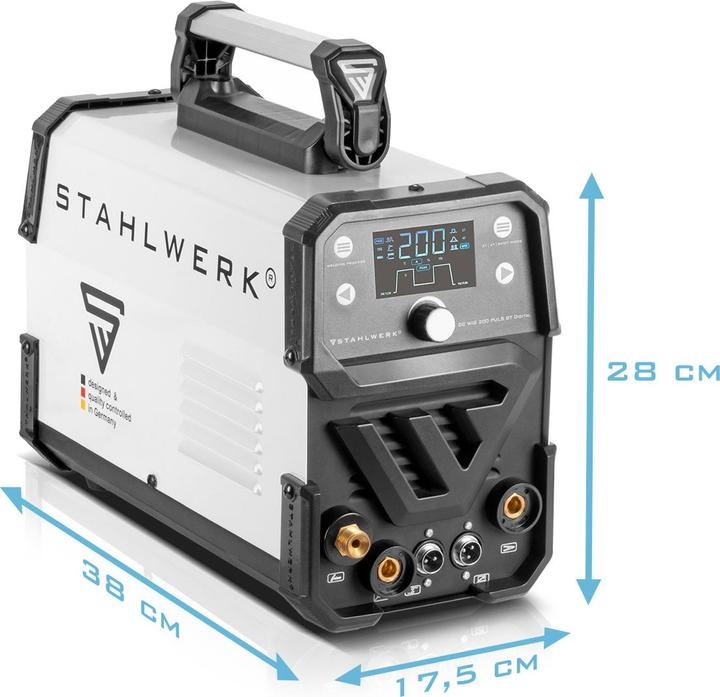

Dimensions L x W x H (mm): 380 x 175 x 280 mm
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by TüV Rheinland LGA Products GmbH

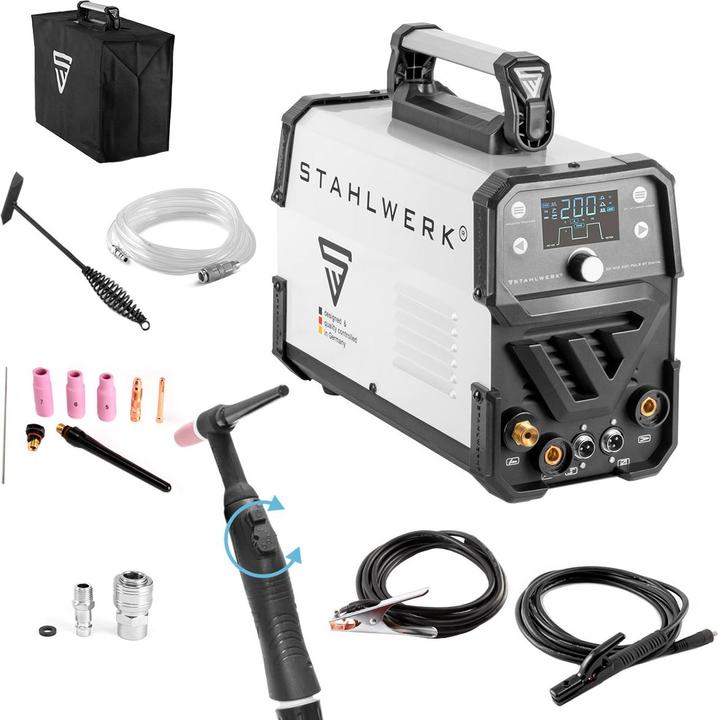

Scope of delivery

1 x DC TIG 200 Pulse ST Digital steelwork welding machine
1 x Professional TIG welding torch WP-26FR / hose package 5 metres* with adjustment wheel for remote control of the welding current on the handle, ball joint and flexible torch head
1 x TIG TIG accessory set 8 pieces: 3 x gas nozzles sizes: 5, 6, 7, 1 x clamping sleeve size 1.6, 1 x clamping sleeve housing size 1.6, 2 x torch caps - one short and one long, 1 x universal tungsten electrode 1.6 mm
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x gas connection hose with quick coupling 5 metres
1 x slag hammer
1 x protective cover
