Name: Welding machine ARC 200 Synergic Pro MMA Lift TIG IGBT Inverter 200 A
Brand: Stahlwerk
SKU: 46785809
Price: 205 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Stahlwerk

Properties


 MMA / E-Hand. Manual electrode welding is a universal welding process as it can be used under almost all conditions.
 Anti-stick. If the electrode sticks to the workpiece, the welding current is automatically reduced. The electrode does not anneal and can be easily detached from the workpiece.
 Hotstart. Automatic voltage increase at the start for better ignition results. Prevents the sticking of the rod electrode by briefly superimposing the set welding current and heats up the start of the weld seam more quickly.
 IGBT technology. Powerful, innovative solution that sets new standards in welding technology.
 Smart cooling. A powerful fan enables maximum duty cycle to be utilised thanks to excellent cooling.
 Equipped with solid 13 mm professional connection sockets, the device guarantees maximum performance.


Technical data


 Model: Stahlwerk ARC 200 Synergic Pro welding machine
 Output current MMA/Lift TIG: 10 -200 A
 Duty cycle (40°C): 10% at 200 A / 100% at 63 A
 Protection class: IP21S
 Mains voltage: 1 x 230 V AC (+-15%)
 Mains frequency: 50/60 Hz
 Maximum mains current (I1max): 40 A
 Maximum effective mains current (I1eff): 12,6 A
 Weight: 4.2 kg
 Dimensions L x W x H (mm): 275 x 155 x 275
 Mains connection: CEE 7/7 Schuko plug
 Standards: IEC 60974-1; EN 60974-10 (Class A)
 Certified by: SGS Standards Technical Services Co, Ltd


Scope of delivery


 1 x Stahlwerk ARC 200 Synergic Pro welding machine
 1 x electrode holder 3 m
 1 x earth cable 3 m
 1 x steel brush
 1 x slag hammer
 1 x protective cover

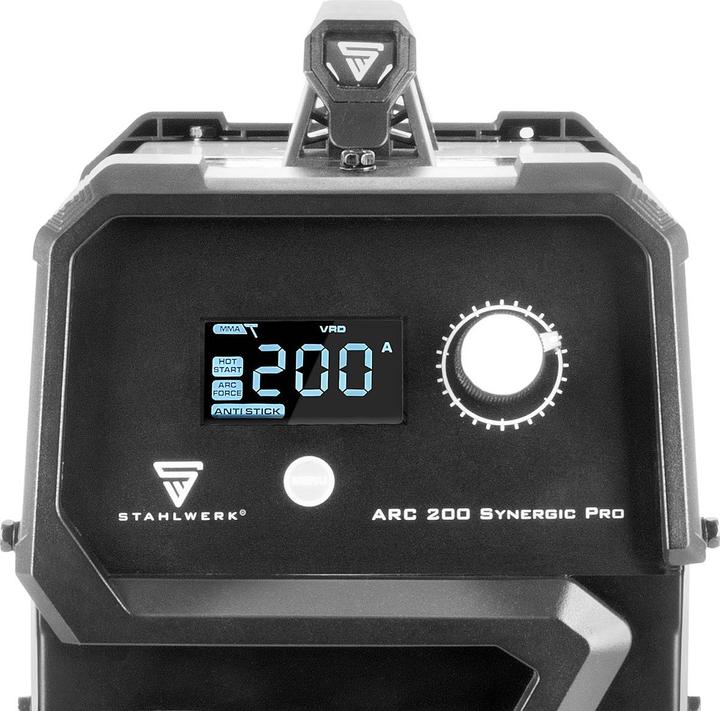

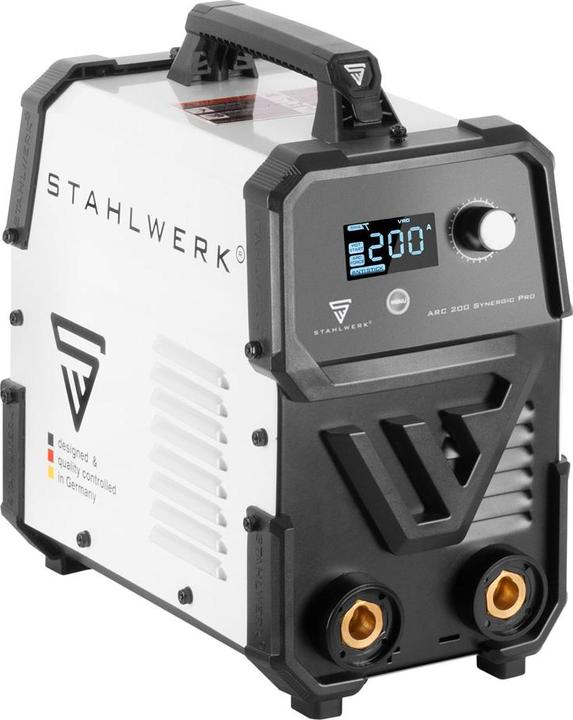

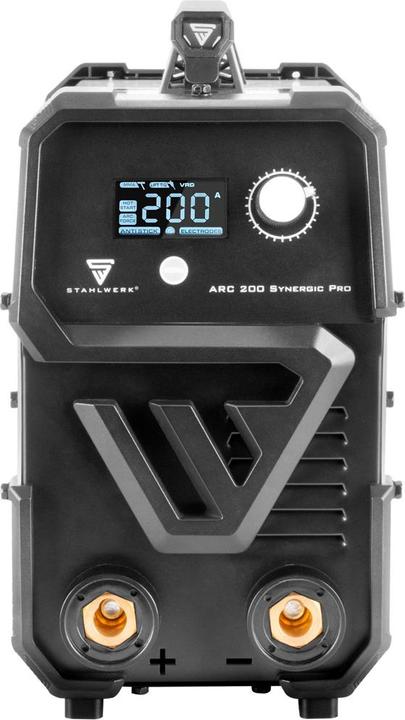

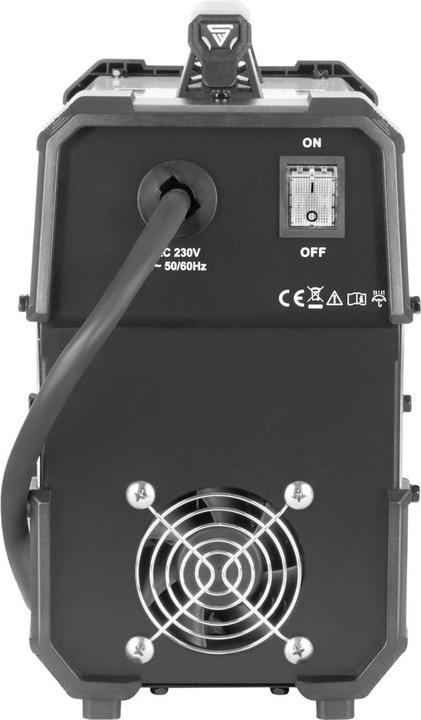

Actual product image Stahlwerk Welding machine ARC 200 Synergic Pro MMA Lift TIG IGBT Inverter 200 A
