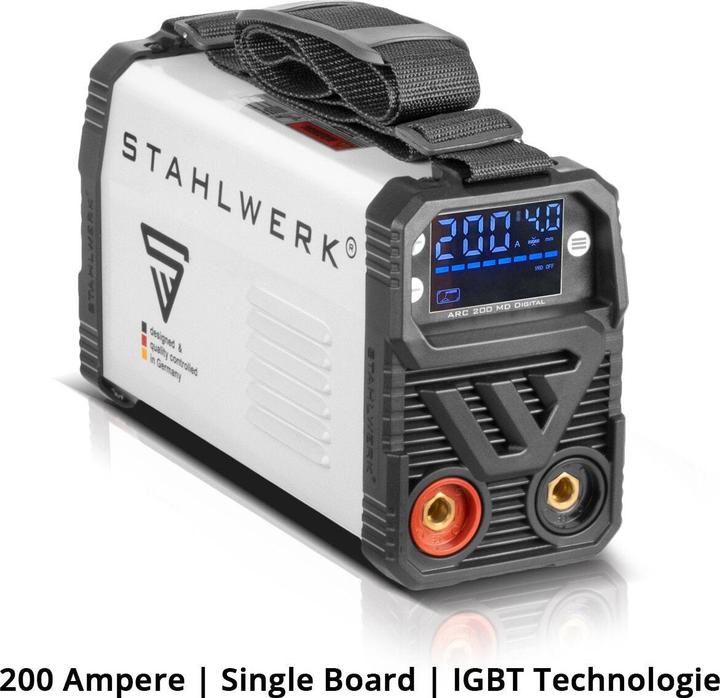

Stahlwerk Welding machine ARC 200 MD Digital - DC MMA Lift-TIG Inverter 200 Ampere

Properties

MMA electrode welding / ARC welding - a universal welding process. An electric arc melts the electrode to form the weld seam. No shielding gas is required and can therefore be used flexibly at any location.
With our optionally available WP-17V Universal Lift TIG torch, it can be expanded into a DC TIG welding unit.

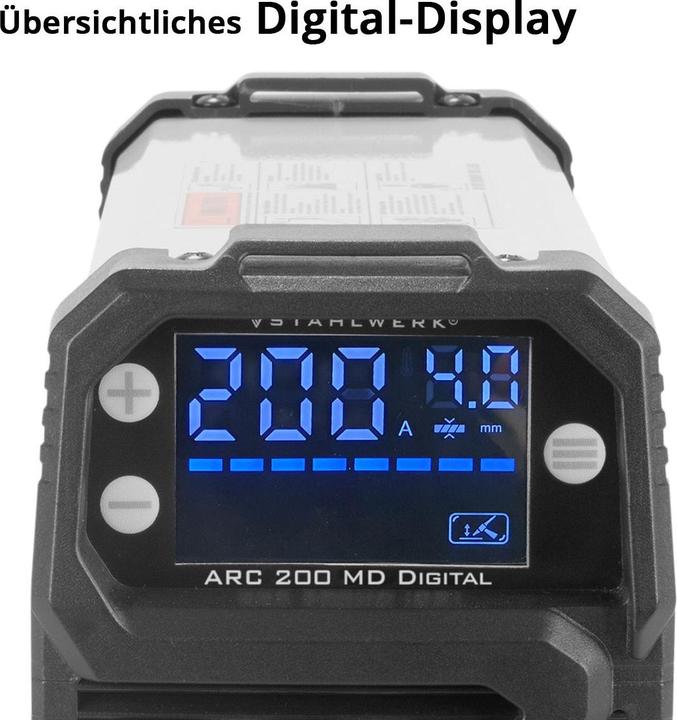

The set welding parameters can be easily read on a clear digital display. The various modes can be set quickly using the intuitive menu.

Note: The device is not intended for use in residential areas where power is supplied via a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

Technical data

Output current MMA: 30-200 A
Protection class: IP21S
Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 40.3A
Maximum effective mains current (I1eff): 13,3A
Weight: 3.2 kg
Dimensions L x W x H (mm): 245 x 100 x 160
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
IGBT board type: Single board

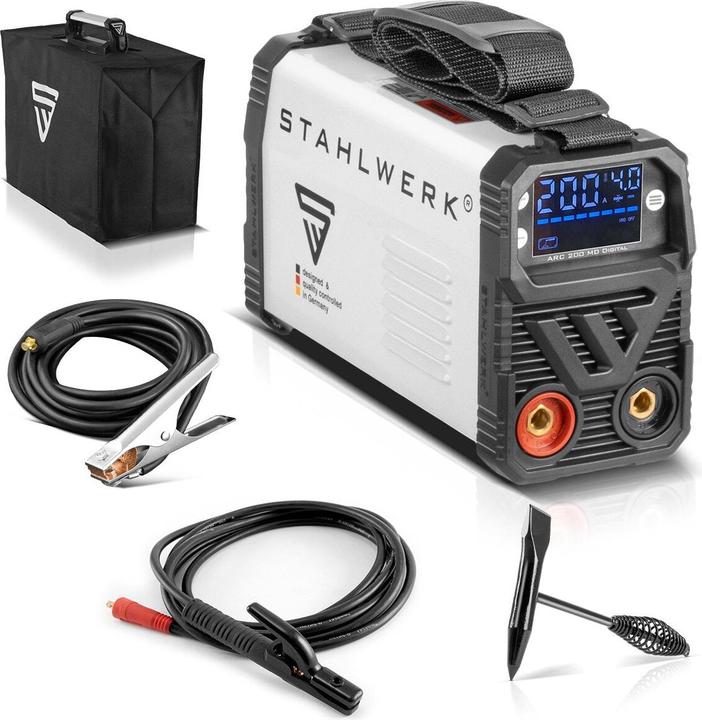

Scope of delivery

1 x The ARC 200 MD IGBT steelwork welding machine
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x protective cover
1 x slag hammer
1 x wooden wire brush
