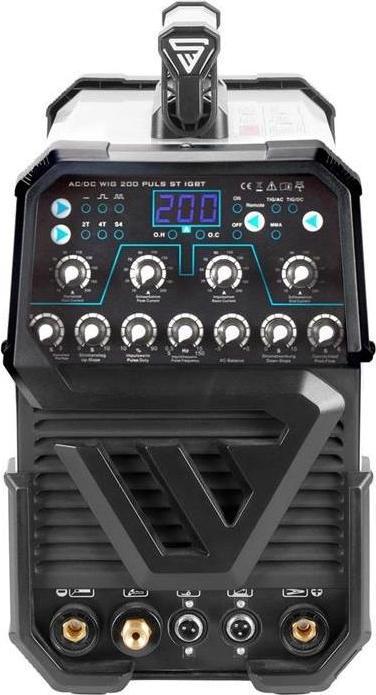

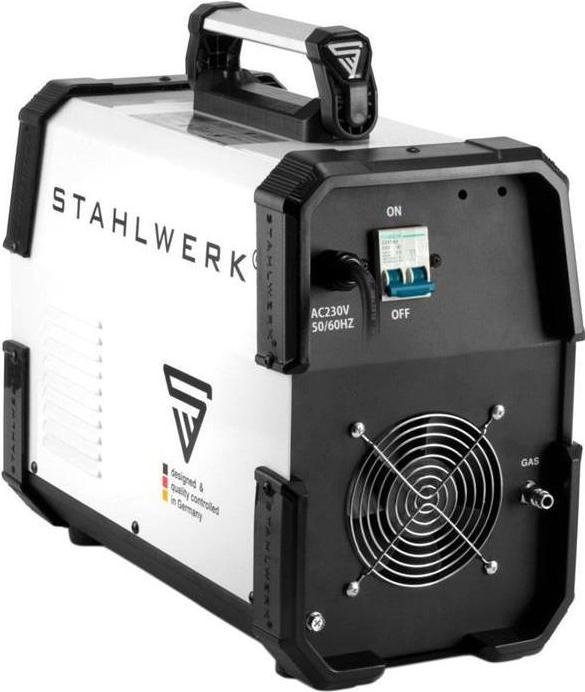

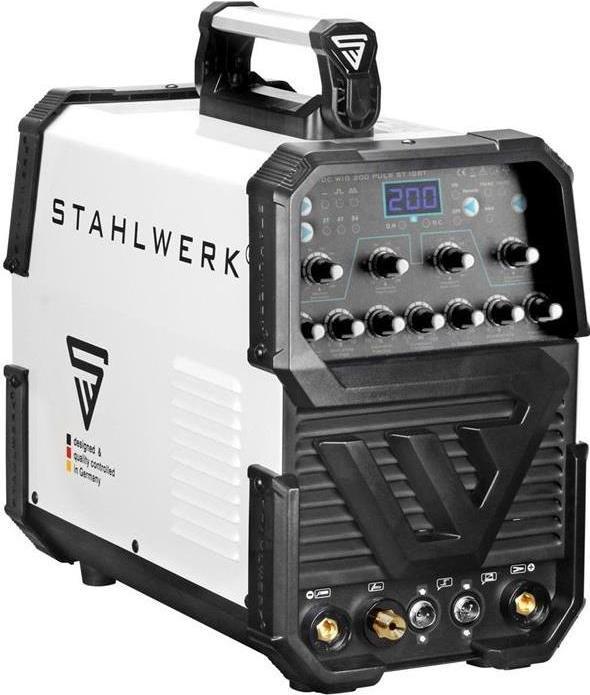

Stahlwerk Welding machine AC/DC TIG 200 Pulse ST IGBT / 200 A

Properties

AC/DC TIG welding - alternating current (AC) and direct current (DC). Welding of almost all metals, such as steel, stainless steel, aluminium, copper and many more.

• 2 in 1 combination device - TIG & MMA welding is possible up to 200A.

Technical data

Output current TIG / MMA: 10-200 A
Protection class: IP21S
Insulation class: F
Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) (TIG / MMA): 27.7 A / 39.7 A
Maximum effective mains current (I1eff) (TIG / MMA): 14.5 A / 13.5 A
Weight: 12.9 kg
Dimensions L x W x H (mm): 455 x 220 x 370
Mains connection: Schuko type CEE 7/7
Standards: IEC 60974-1; EN 60974-10 (Class A)

Scope of delivery

1 x steelworks AC/DC TIG 200 pulse ST IGBT
1 x Professional TIG welding torch WP-26FR / hose package 3 metres* with adjustment wheel for remote control of the welding current on the handle, ball joint and flexible torch head
1 x TIG TIG accessory set 8 pieces:

3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size: 1.6
1 x clamping sleeve housing size: 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode

*Pre-assembled accessories from the picture of the welding torch are part of the 8-piece set.
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire brush
1 x gas connection hose with quick coupling 5 metres
