Stahlwerk Variable stop with mounting magnet for welding tables D16 hole system

Stahlwerk universal stop for welding tables with D16 hole system

Features

The universal stop is compatible with welding tables or perforated plates with a hole diameter of 16 mm.
Suitable for industry, trade and DIY, the universal stop can be used in a variety of ways, is highly resilient and extremely wear-resistant.

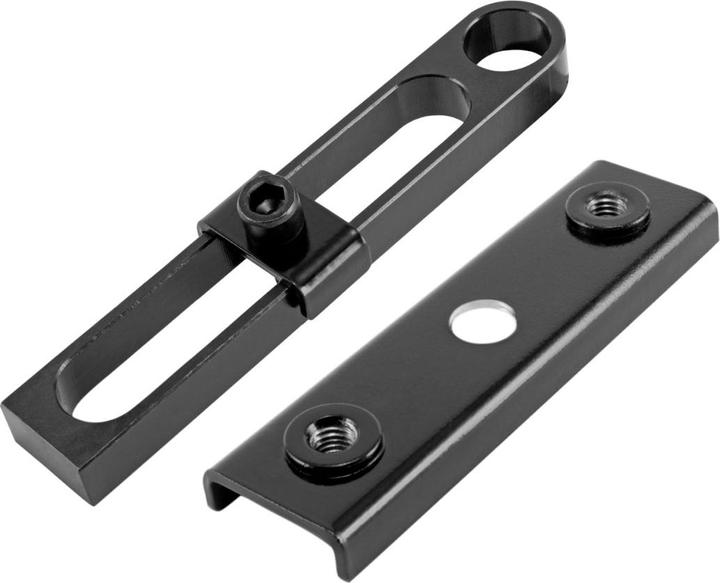

The positioning aid consists of a threaded plate that adheres under the perforated plate using a magnet. The variable rail is attached to the threaded plate on the top of the table using the integrated hexagon socket screw. A recess at the end of the rail accepts bolts from the D16 programme.
Combine the stop with our modular stop bolts to create a versatile fastening solution.
Precision milling from solid material

Technical data

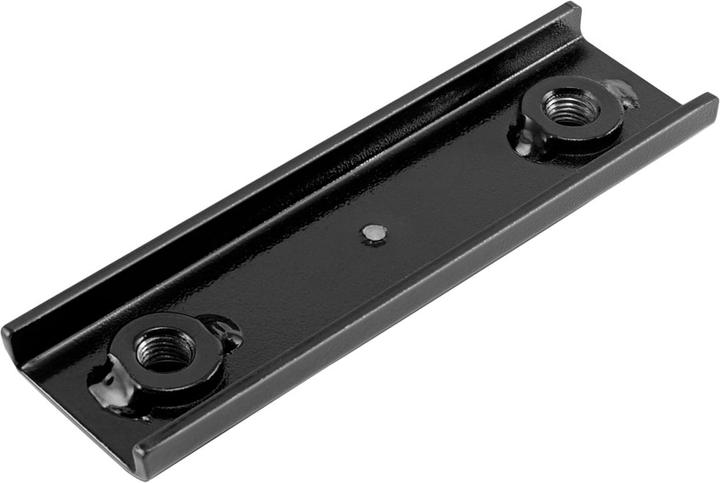

Dimensions threaded plate (L x W x H): 136 x 35 x 13 mm

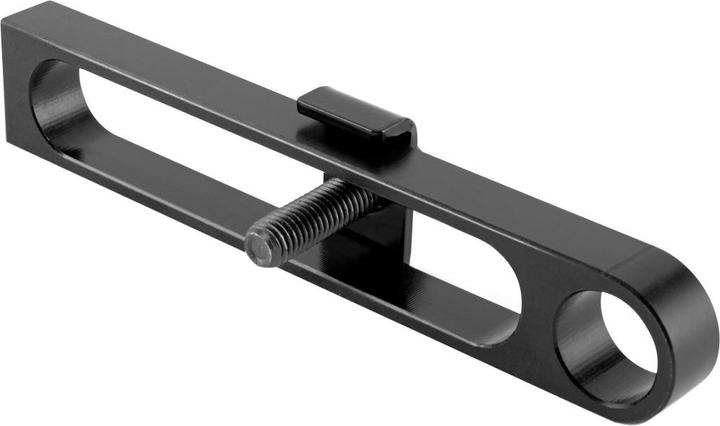

Variable rail dimensions (L x W x H): 150 x 28 x 15 mm
Weight of threaded plate approx.: 180 g
Weight of variable rail approx.: 300 g
Diameter of recess for centring bolt: 16 mm
Retaining clip: M8 hexagon socket
Material: Burnished steel

Scope of delivery

1 x Threaded plate with magnet for the D16 hole system
1 x Variable rail with recess for stop bolt in D16 hole system and retaining clip with M8 hexagon socket
