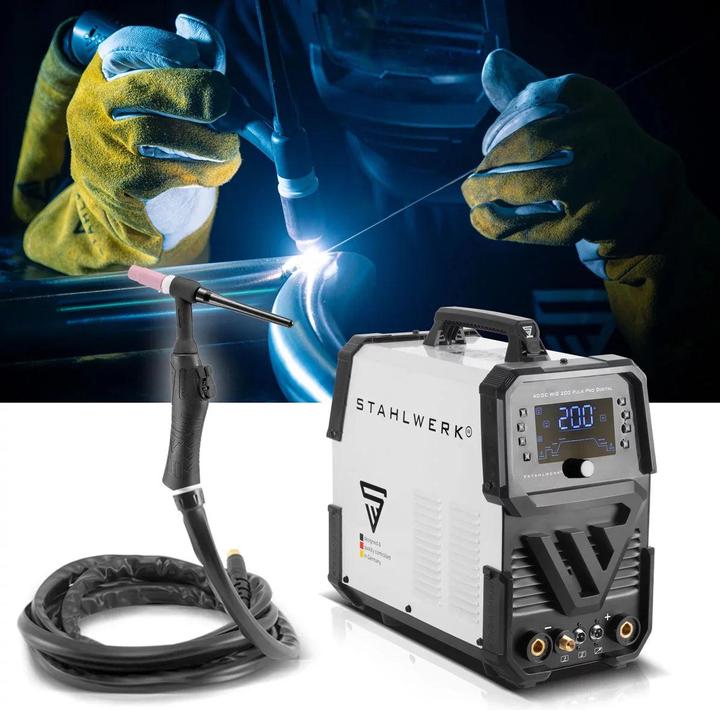

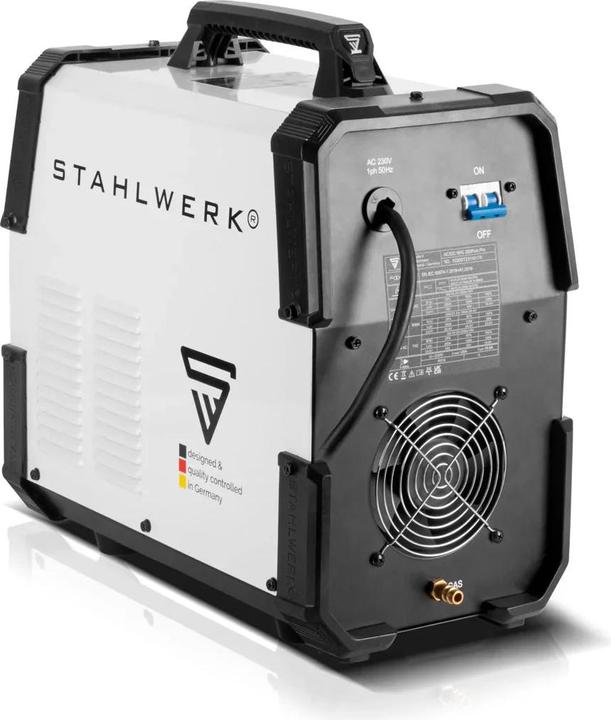

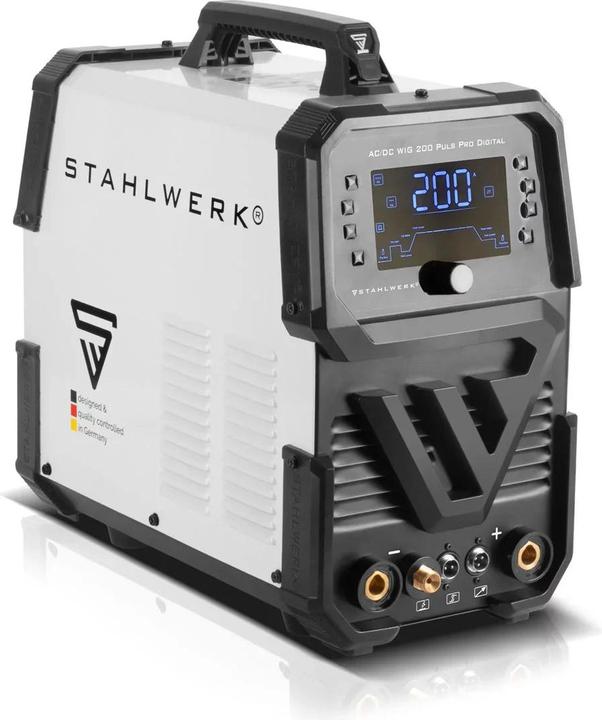

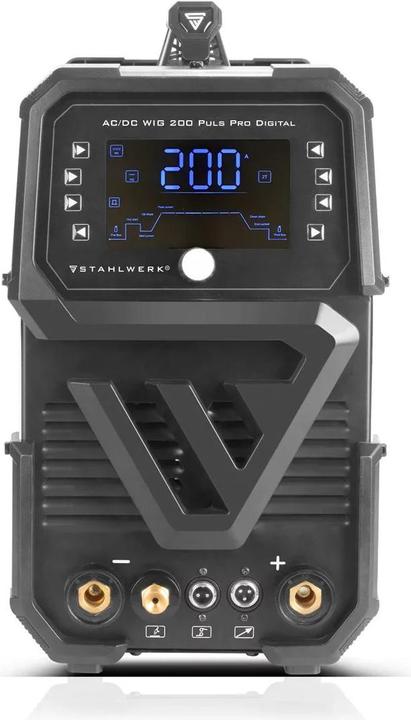

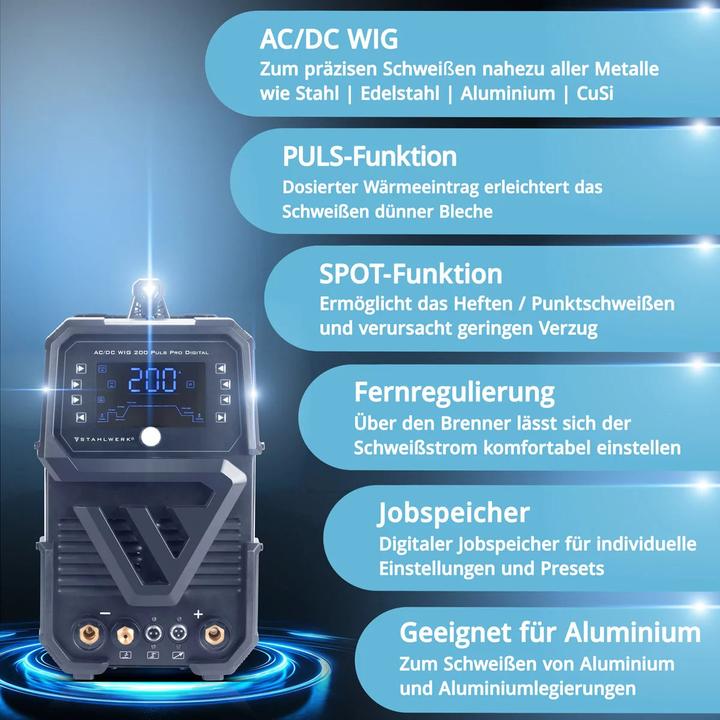

Stahlwerk Shielding gas welder AC/DC TIG 200 Pulse Pro Digital Fully equipped

Technical data

Output current (TIG / MMA): 5 - 200 A / 30 - 160 A
TIG duty cycle (40°C): 25% at 200 A / 60% at 150 A / 100% at 120 A
MMA duty cycle (40°C): 25% at 160 A / 60% at 110 A / 100% at 90 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50 Hz
Open circuit voltage (TIG DC and MMA / TIG AC): 68 V / 48 V
Maximum mains current (I1max) | (TIG / MMA): 28 A
Maximum effective mains current (I1eff) | (TIG / MMA): 15.6 A

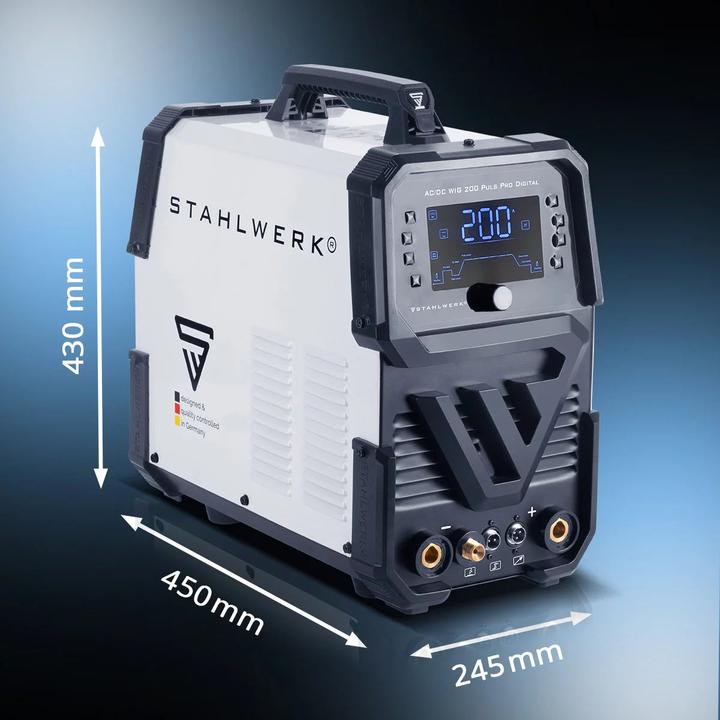

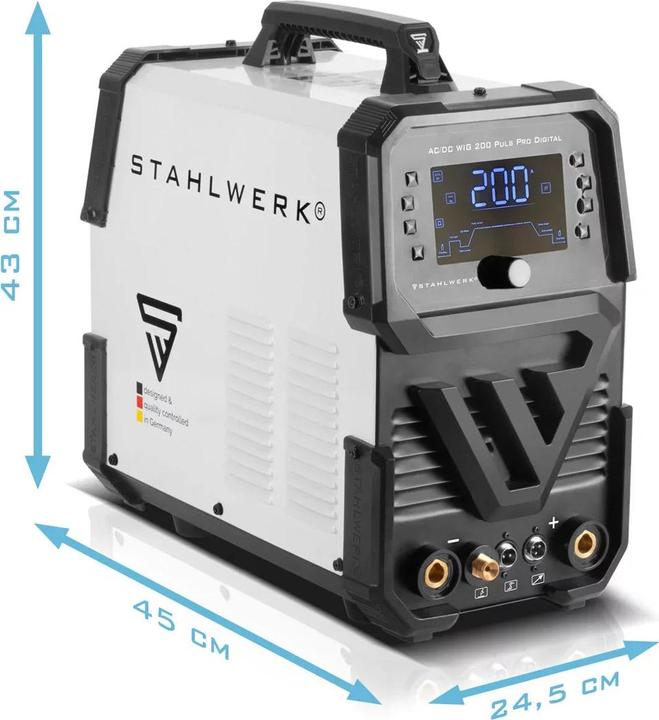

Dimensions L x W x H (mm): 450 x 245 x 430
Standards: IEC 60974-1; EN 60974-10 (Class A)

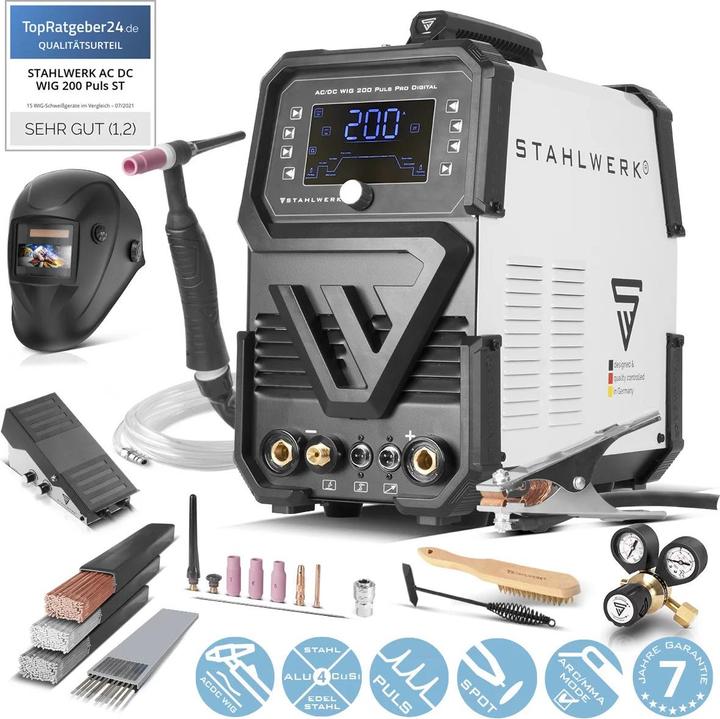

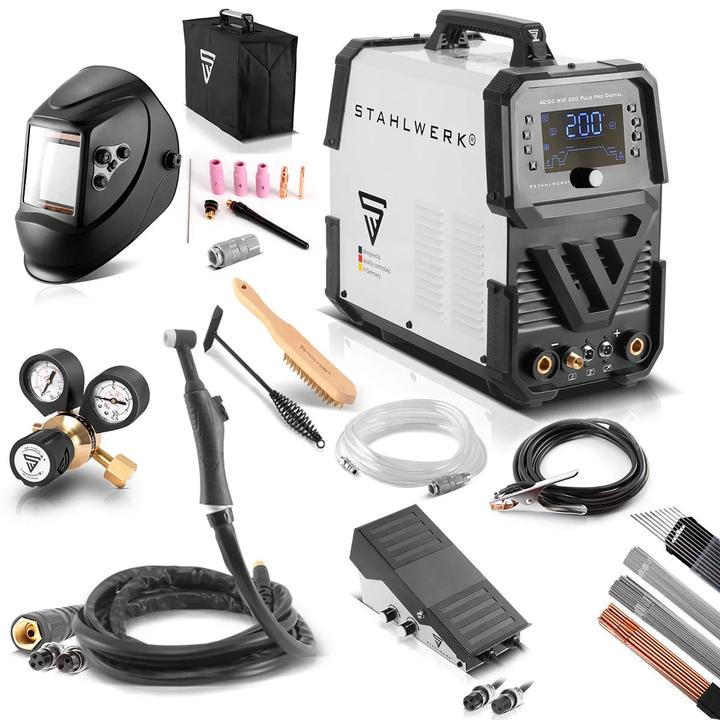

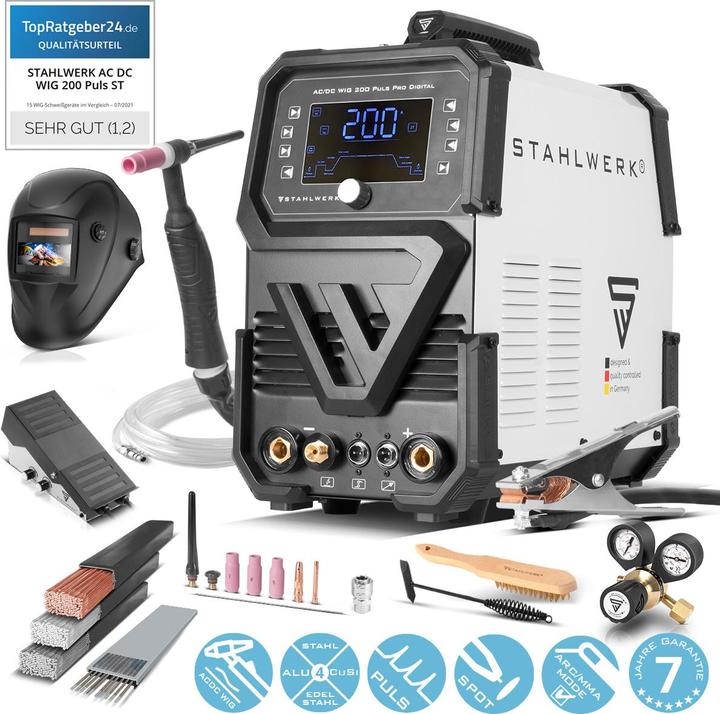

Scope of delivery

1 x Steelworks AC/DC TIG 200 Puls Pro Digital welding machine

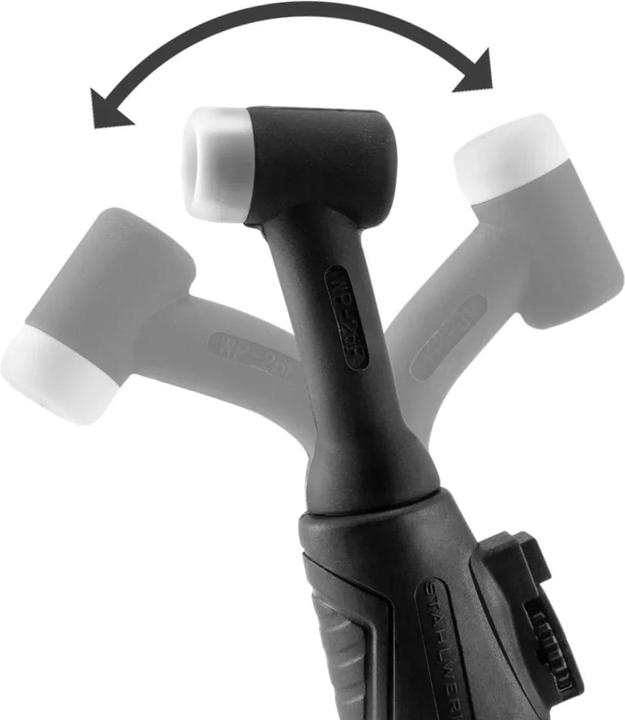

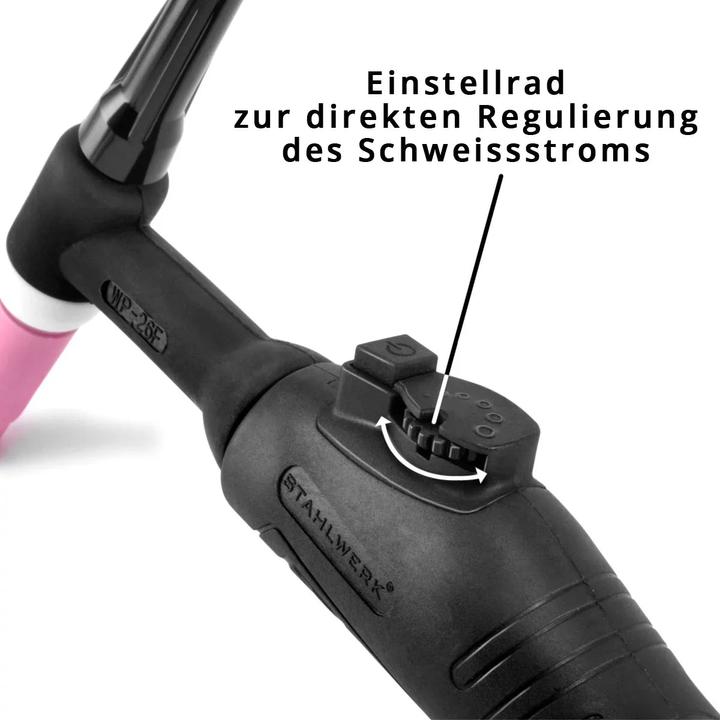

1 x Professional TIG welding torch "WP-26 FR" / 3 metre hose package with remote control. Flexible torch head and kink protection on the gas connection.
1 x TIG TIG accessory set 8 pieces:
3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode 1.6 mm
* Pre-assembled accessories from the illustration of the welding torch are included in the 8-piece set.
1 x gas connection hose with quick coupling 5 m
1 x earth clamp 3 m cable with 13 mm pin plug
1 x quick coupling gas pressure reducer incl. O-seal
1 x WIG ER70S G3 steel welding rods
1 x welding rods TIG ER307Si high-alloy stainless steel
1 x welding rods TIG ER4043Si5 high-alloy aluminium
1 x tungsten electrodes / welding electrodes
1 x TIG foot pedal Puls Pro with 4 m cable
1 x slag hammer
1 x wire brush
1 x protective cover
1 x pressure reducer
1 x professional welding helmet
