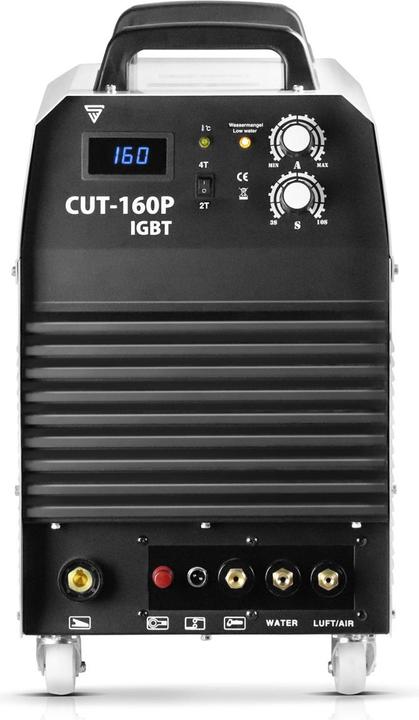

Stahlwerk Plasma cutter CUT 160 P IGBT with 160 amps with pilot ignition

Properties

Plasma / CUT - A plasma jet is generated by means of electricity, which melts the material, which is then removed with compressed air. All conductive metals such as standard steel, stainless steel, copper, aluminium, titanium and many more can be cut precisely and effortlessly.
Cutting thickness - Depending on the material, cuts of up to 52 mm are possible. Structural steel S235 up to 52 mm, V2A or V4A up to 48 mm, aluminium up to 42 mm.

Technical data

Output current: 20-160 A
Protection class: IP21S
Mains voltage: 400 V AC (+-15%) / 3 Ph
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 42 A
Maximum effective mains current (I1eff): 16,3 A
Weight of appliance: 38.3 kg
Dimensions L x W x H (mm) Device: 630 x 320 x 600
Mains connection: CEE32 plug
Air pressure: 10 bar
Air flow: min. 240 L / min
Weight of water cooler: 14 kg
Dimensions L x W x H (mm): 460 x 255 x 370
Standards: IEC 60974-1; EN 60974-10 (Class A)

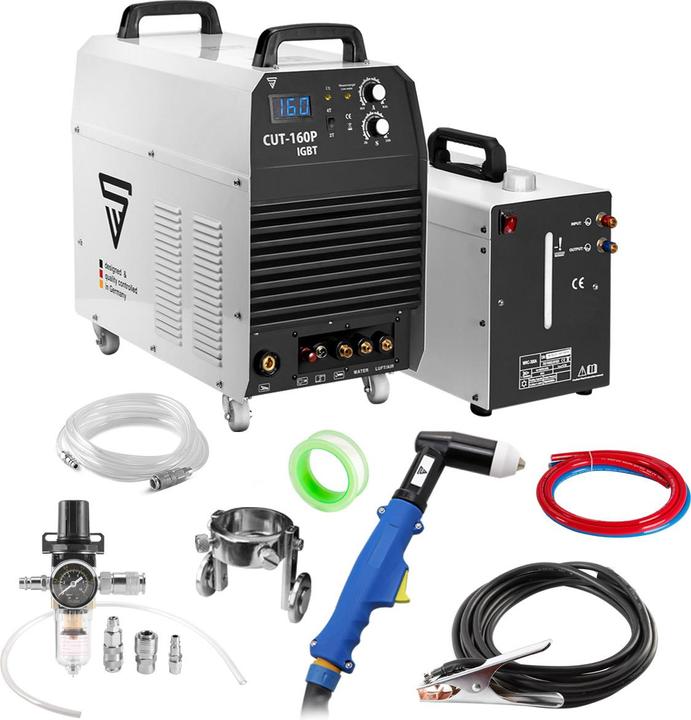

Scope of delivery

1 x The CUT 160 P steelwork plasma cutter
1 x Professional plasma hose package WSD-200, 5 metres
1 x 3-piece plasma accessory set (3 parts are already pre-assembled on the plasma torch):

1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap

1 x 5 metre earth cable
1 x guide carriage with spacer
1 x Water separator with pressure gauge and snap-on quick-release couplings
1 x Air connection hose with snap-on quick-release coupling 5 metres

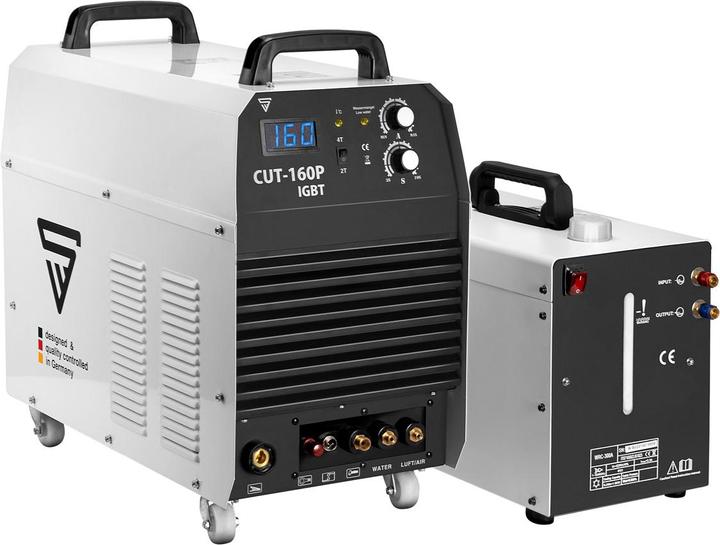

1 x Water cooler with connecting hoses to the device
1 x Teflon tape
