Stahlwerk Panel lifter PH-465 ST 1.92-4.86 m, load capacity up to 68 kg

Properties

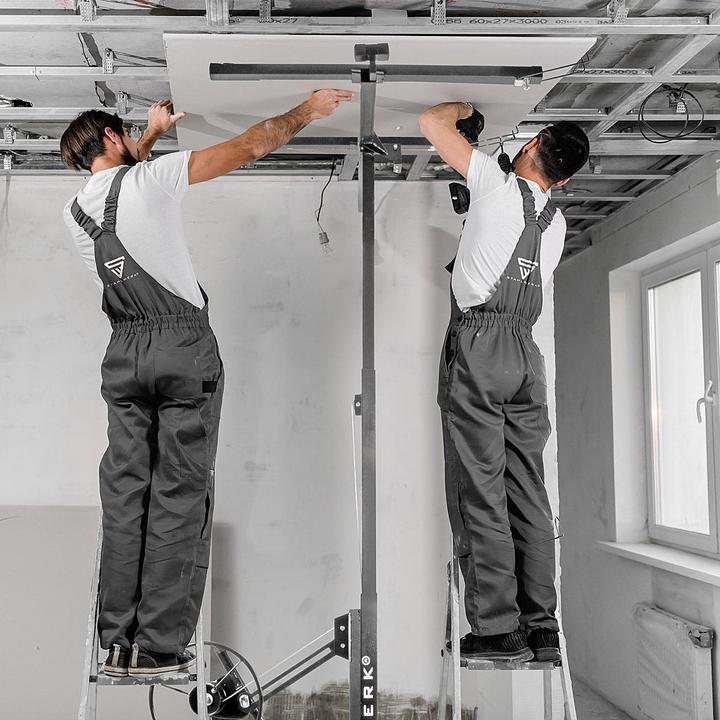

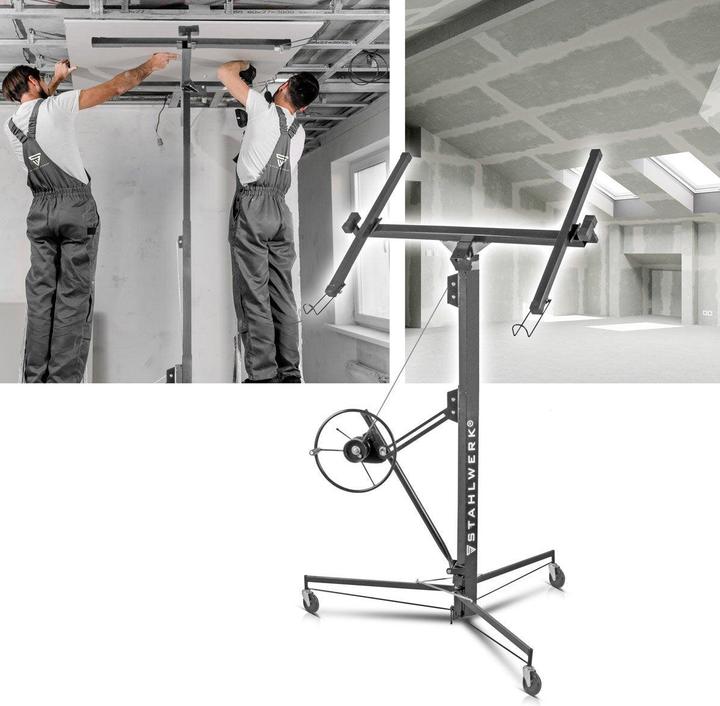

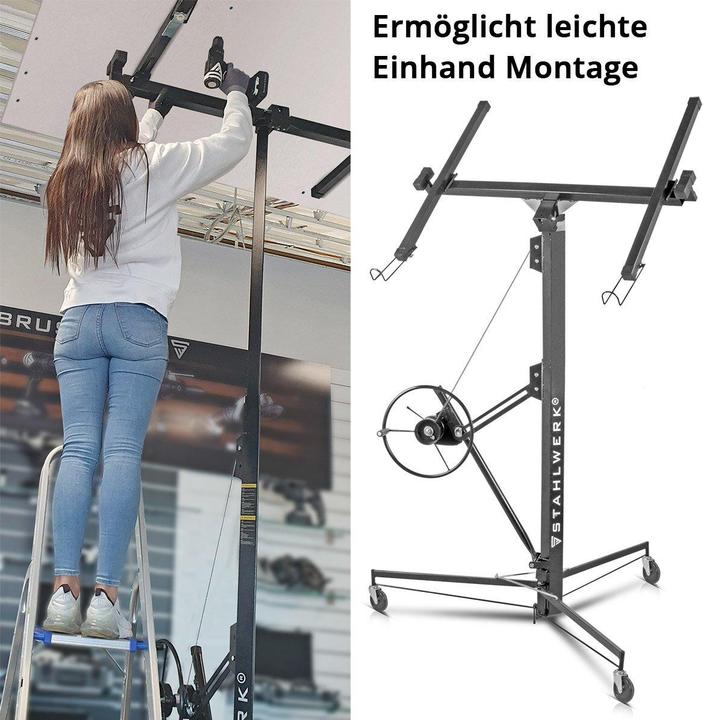

With a flexible working height of 192-486 cm, the universal panel lifter is ideal for professional installation work in interior finishing and drywall construction and is easy to operate by just one person thanks to its stable design.

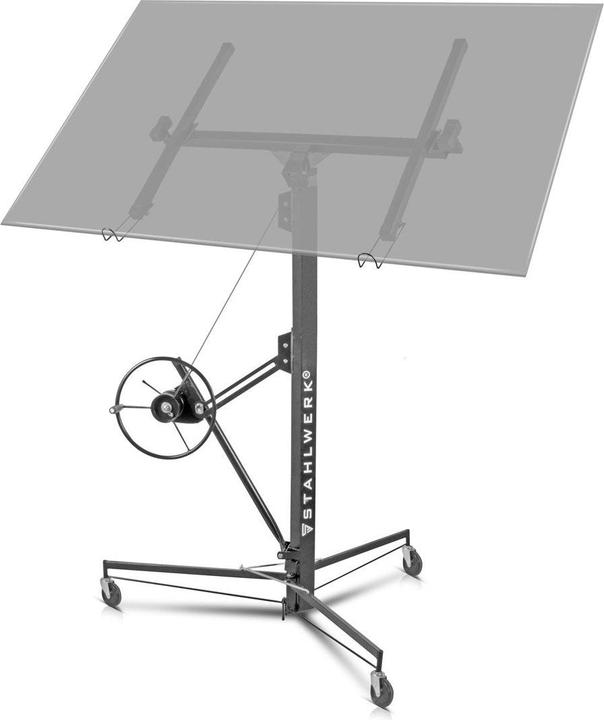

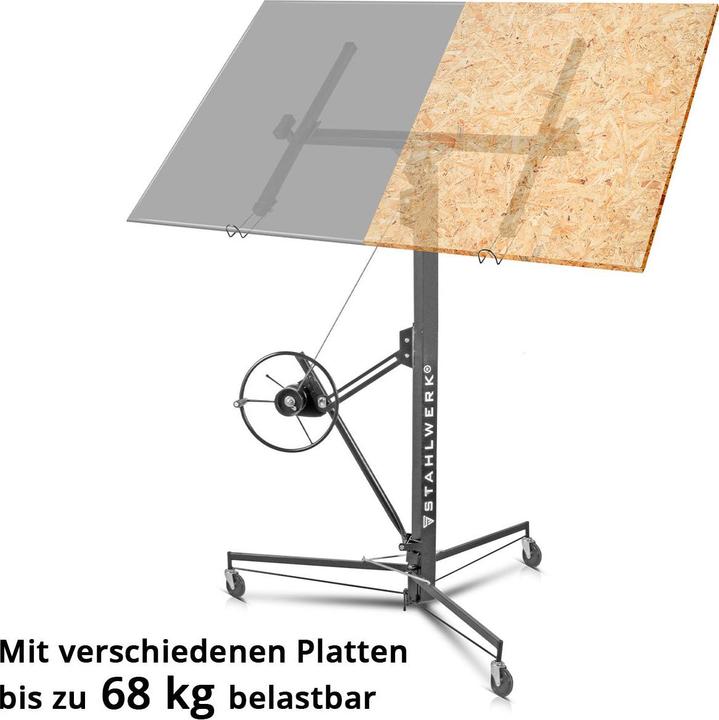

The panel lift can be used to effortlessly lift plasterboard, plasterboard, chipboard, wood and metal panels or ceiling panelling up to a size of 487 x 122 cm and a maximum weight of 68 kg and bring them into the desired position.

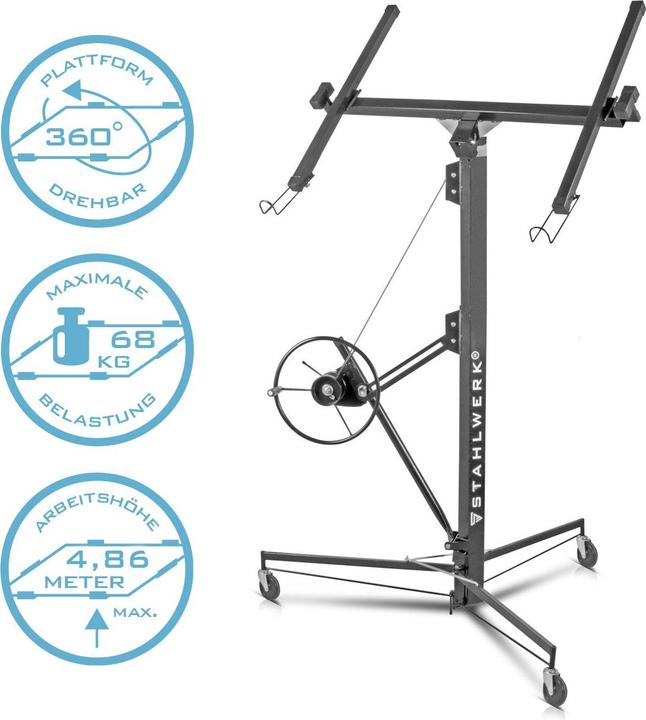

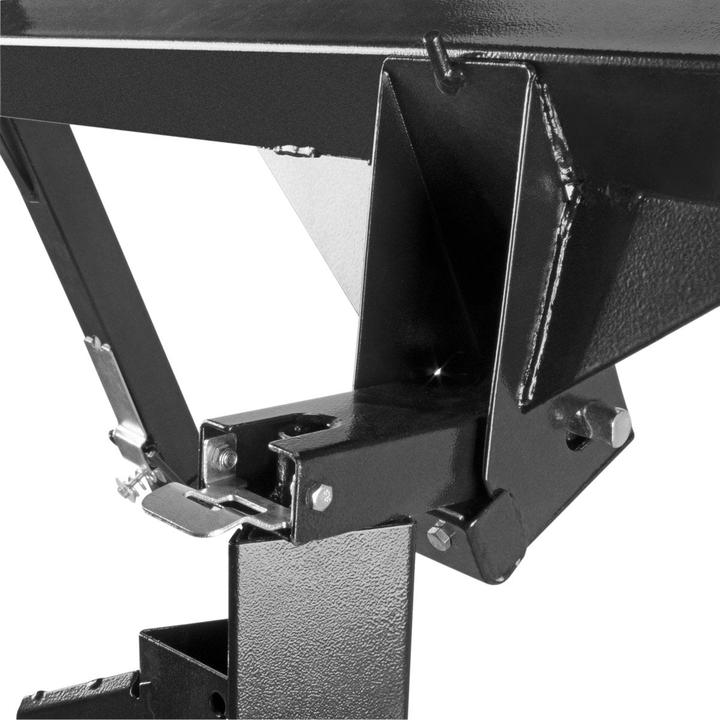

The mounting lift allows the panels to be rotated horizontally by 360 degrees and tilted up to 65.5 degrees and ensures easy overhead or wall mounting.

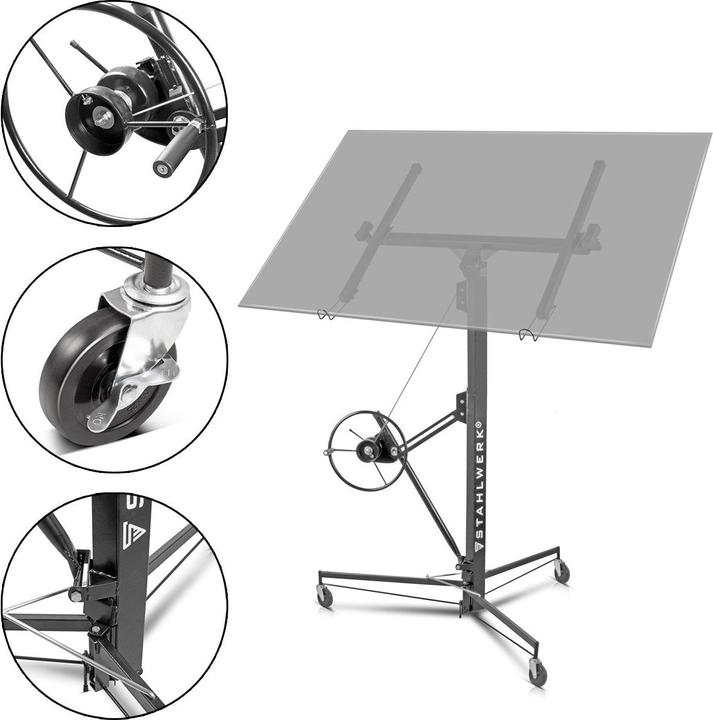

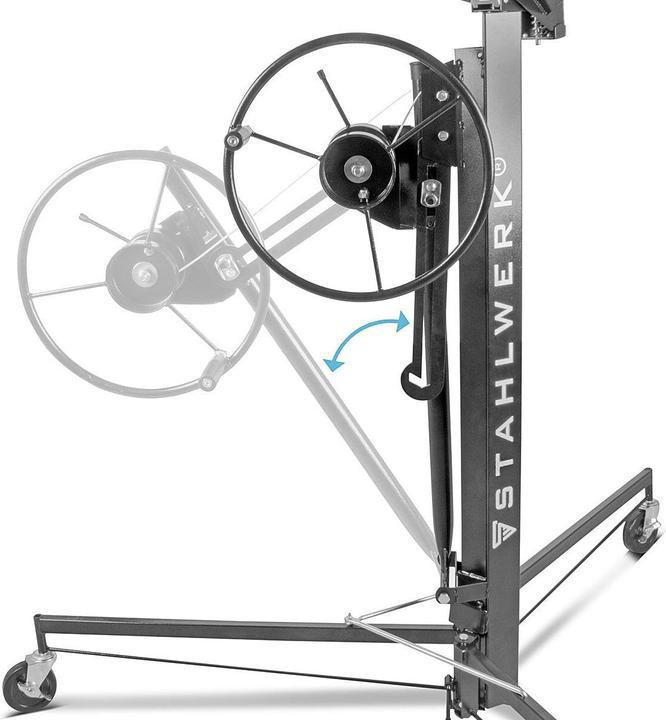

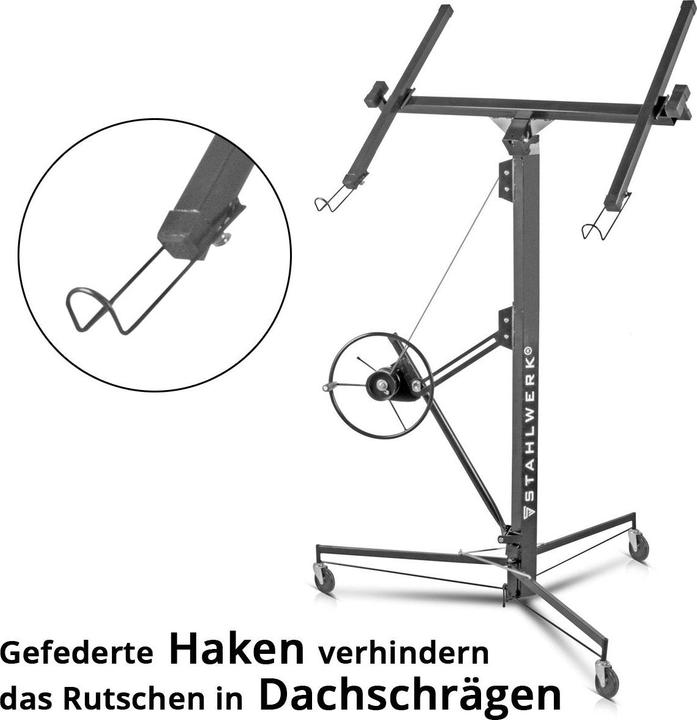

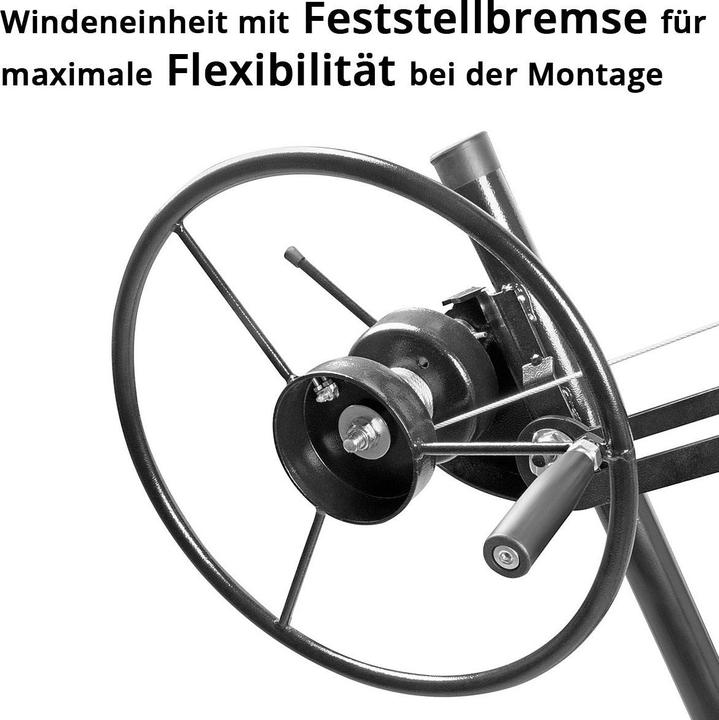

The compact design can be individually adjusted in height using a practical winch with parking brake and is extremely flexible thanks to the three-stage telescopic panel supports.

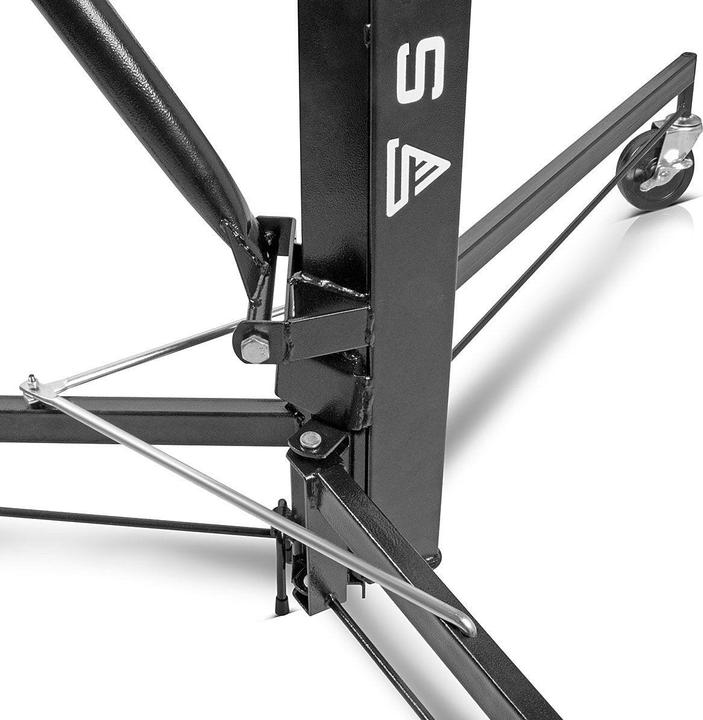

Fold-out brackets on the stabilisers of the panel lifter ensure maximum safety.
The assembly lifter can be lowered to a height of 192 cm for easy loading.

Technical data

Model: Stahlwerk universal drywall panel lifter
Dimensions: 1420 x 1220 x 1330 mm
Dimension (stand base unit): 1420 x 1220 x 200 mm
Maximum load: 68 kg

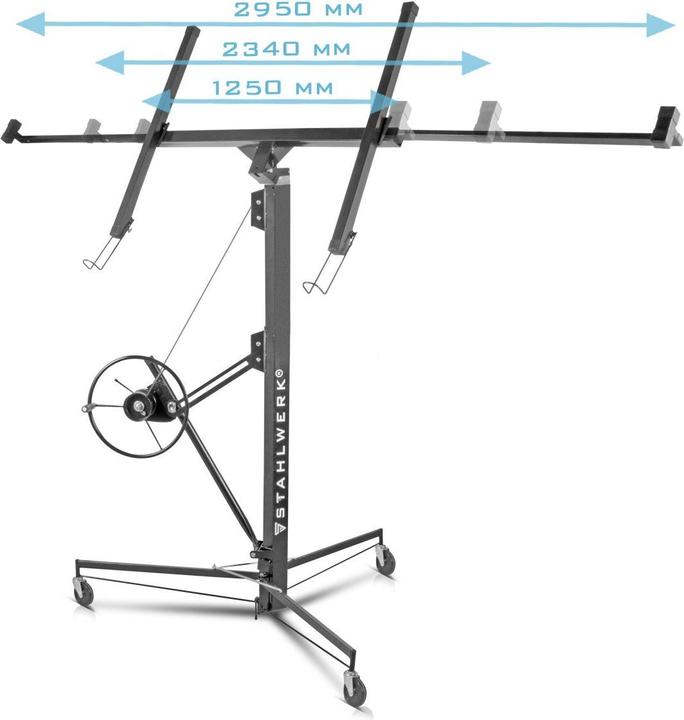

Support surface: 1250 / 2340 / 2950 x 900 + 160 (mounting bracket) mm
Support surface properties: 360° horizontal swivelling / 65.5° tiltable

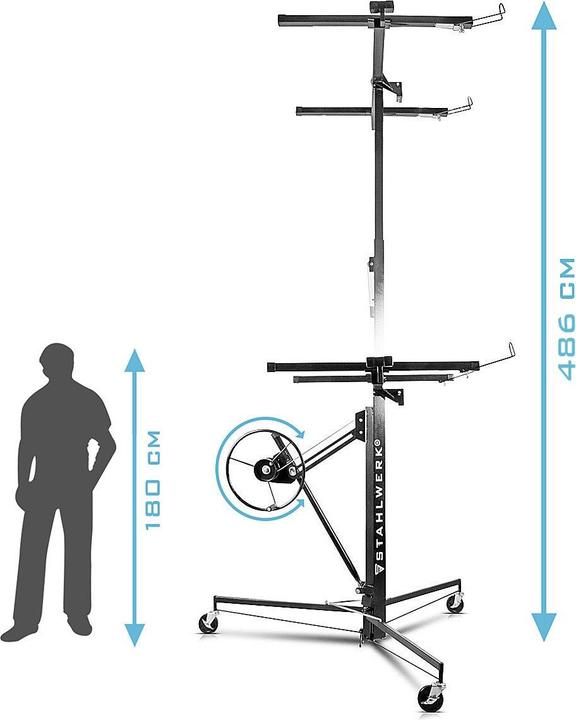

Minimum working height: 1.92 m
Maximum working height: 4.86 m
Weight: 38 kg

Scope of delivery

1 x Stahlwerk drywall panel lifter
