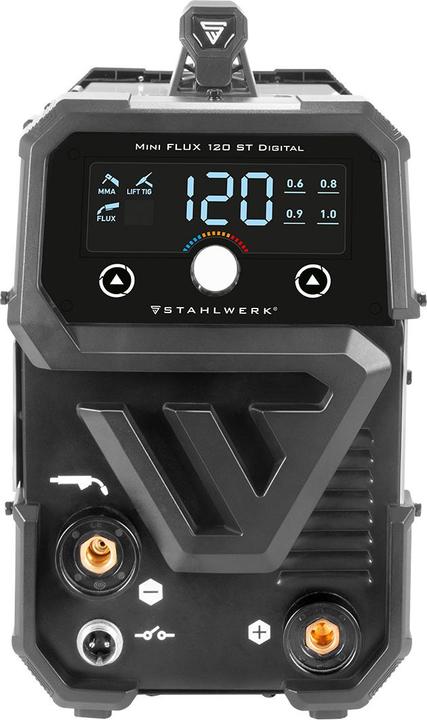

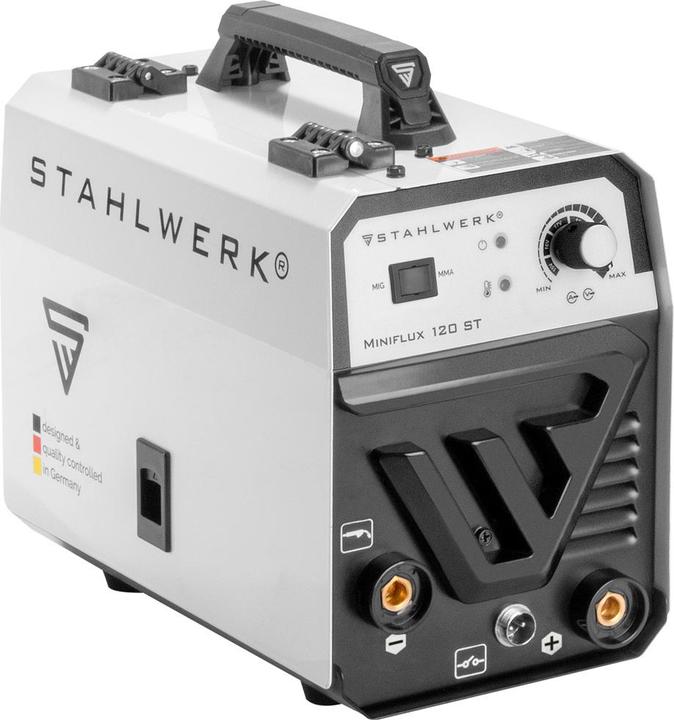

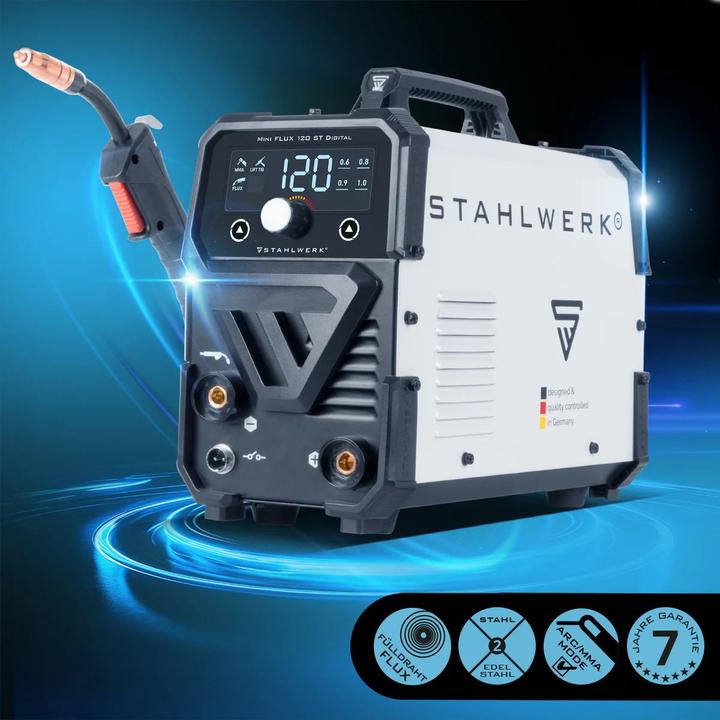

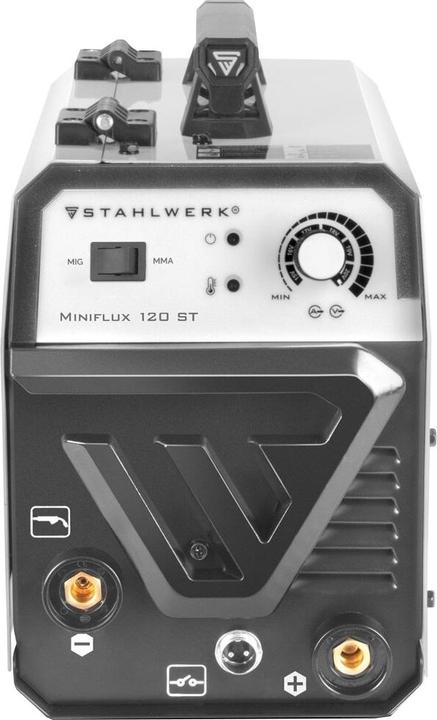

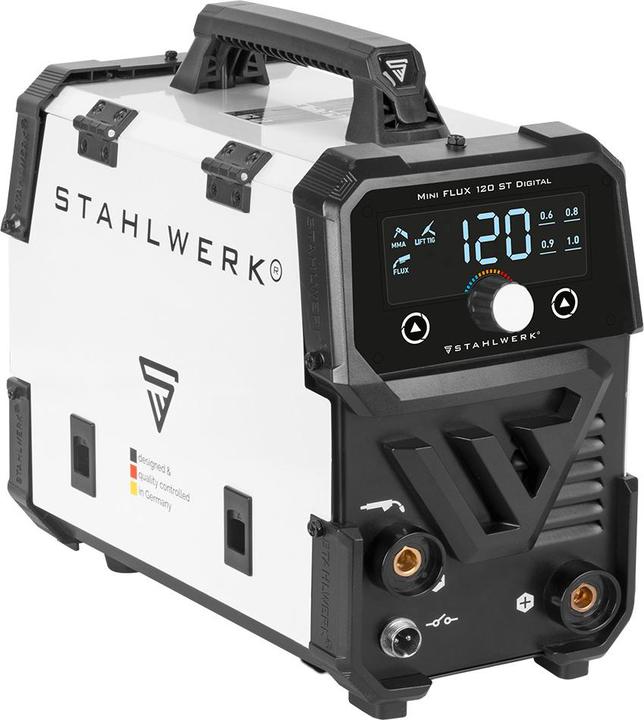

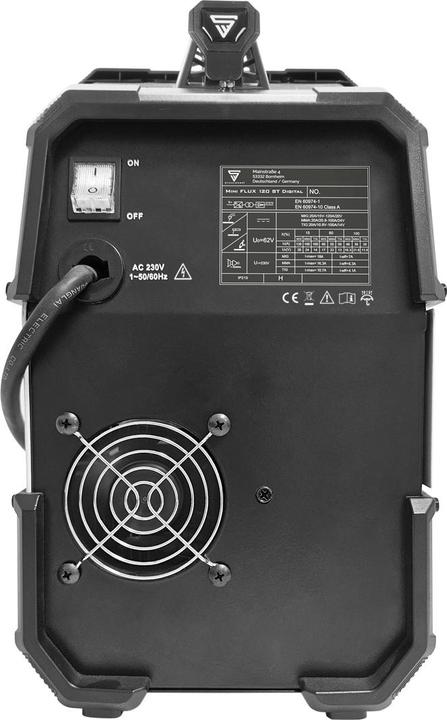

Stahlwerk Mini Flux 120 ST with ARC

Note: To avoid damaging the device, please observe the following instructions: The closure of the wire spool features a bayonet lock. This must first be pressed against the spring when loosening and then turned to the left. After inserting the spool, the closure must be pressed again and then turned to the right to close.

Note: The device is not intended for use in residential areas where the power supply is provided by a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated disturbances.

Technical Data

Model: STAHLWERK Mini FLUX 120 ST Flux-Cored Welding Machine
Output Current FLUX: 20 - 120 A
Output Current ARC / MMA: 20 - 100 A
Duty Cycle (40°C): 15% at 120 A / 100% at 46 A
Protection Class: IP21S
Mains Voltage: 1 x 230 V AC
Mains Frequency: 50/60 Hz
Maximum Mains Current (I1max): 17.3 A
Largest Effective Mains Current (I1eff): 6.7 A
Suitable for Flux-Cored Wires: Ø 0.6 - Ø 1.0 mm
Weight: 4 kg

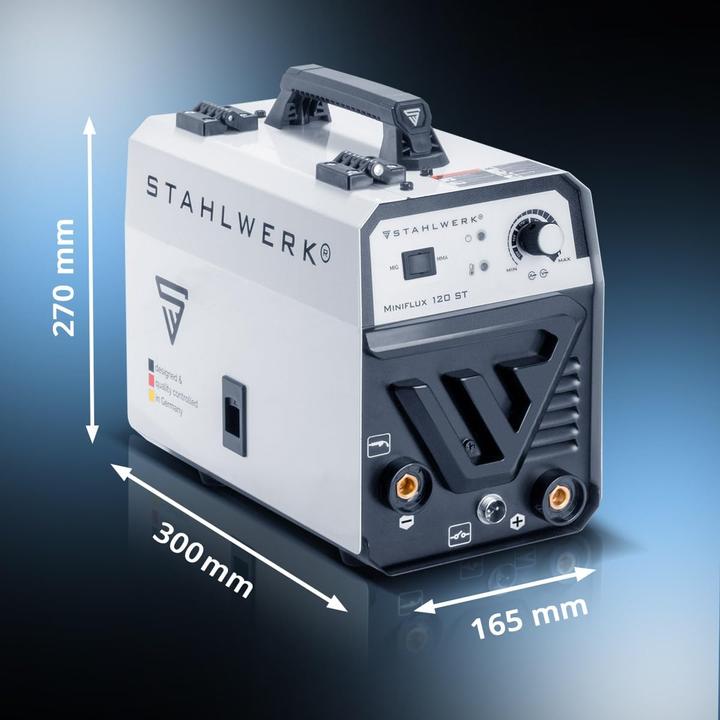

Dimensions L x W x H: 300 x 165 x 270 mm
Mains Connection: CEE 7/7 Schuko Plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co., Ltd.

Scope of Delivery

1 x STAHLWERK Mini FLUX 120 ST Flux-Cored Welding Machine
1 x FLUX Torch Hose Package 2 m
1 x Ground Cable 1.2 m
1 x Wire Guide Roller 0.6 / 0.8 / 0.9 / 1.0 mm knurled (pre-assembled)
1 x MIG MAG Premium Welding Wire Flux-Cored Wire E71T-GS Ø 0.9 mm 0.45 kg
1 x High-Quality Wire Brush
1 x Slag Hammer 300 g.
