Stahlwerk MIG MAG 200 Spot Pulse Pro

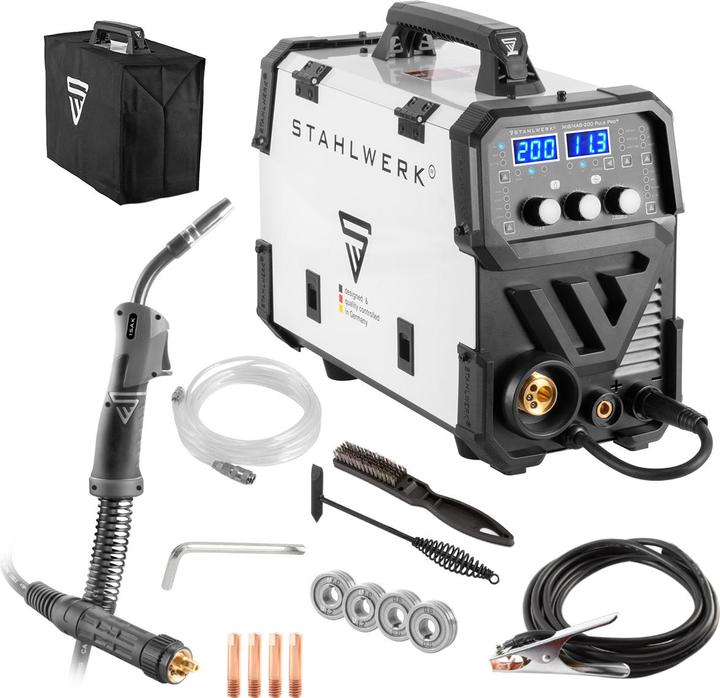

Note: The device is not intended for use in residential areas where the power supply is provided by a public low-voltage power supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference. Model: MIG MAG-200 Puls Pro Plus. Output current Lift-TIG / MMA: 20-180 A. MIG duty cycle (40°C): 15% at 200 A / 100% at 77 A. Duty cycle Lift-TIG / MMA (40°C): 15% at 180 A / 100% at 70 A. Protection class: IP21S. Mains voltage: 1 x 230 V AC (+-15%). Maximum mains current (I1max) MIG / Lift-TIG / MMA 32 A / 22 A / 34 A. Maximum effective mains current (I1eff) MIG / Lift-TIG / MMA 12.4 A / 8.5 A / 13.2 A. Weight: 10.8 kg. Dimensions L x W x H (mm): 460 x 210 x 350. Mains connection: CEE 7/7 Schuko plug. Mandrel connection: 9 mm. Standards: IEC 60974-1; EN 60974-10 (Class A). Certified by: SGS Standards Technical Services Co, Ltd. Scope of delivery: 1 x MIG MAG-200 Puls Pro Plus welding machine, 1 x AK-15 professional MIG welding torch / 3 m hose package, 1 x 3 m earth cable, 2 x 0.8 mm & 1.0 mm wire guide rolls with 'V' profile (already installed in the device), 2 x 0.6 mm & 0.8 mm wire guide rolls with 'V' profile, 2 x 0.6 mm & 0.8 mm wire guide rolls with 'V' profile, 2 x 0.6 mm & 0.8 mm0.6 mm & 0.8 mm with 'V' profile, 2 x wire guide rolls 1.0 mm & 1.2 mm with 'U' profile (for aluminium wire), 1 x wire brush, 1 x slag hammer, 1 x gas connection hose with quick coupling 5 m, 4 x power nozzles: M6 x 28 - ø 1.0 mm for aluminium, ø 0.6 mm for steel, ø 0.8 mm for steel, ø 1.0 mm for steel, 1 x installation spanner, 1 x protective cover.
