Properties
Flux-cored wire welding (FLUX) - welding without shielding gas. Welding with flux-cored wire is based on a similar process to MIG MAG welding, with the difference that no shielding gas needs to be supplied in this process.
Technical data

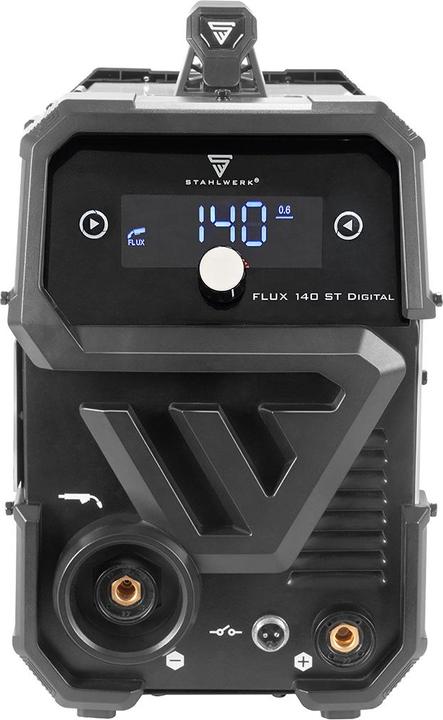

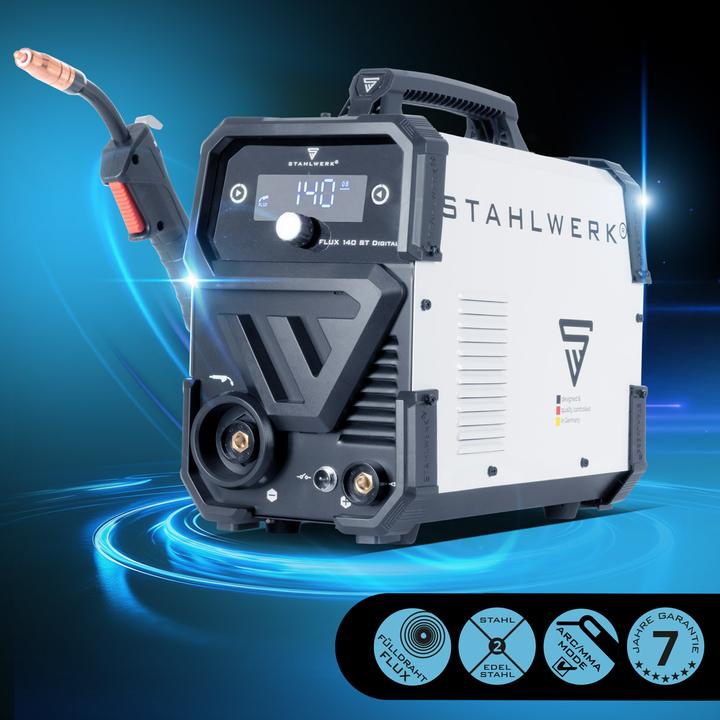

Model: Stahlwerk FLUX 140 ST digital welding machine
Output current FLUX | TIG | MMA: 20 - 140 A | 20 - 120 A (TIG/MMA)
Duty cycle FLUX (40°C): 15 % at 140 A / 60 % at 70 A / 100 % at 54 A (FLUX)
Duty cycle TIG | MMA (40°C): 15 % at 120 A / 60 % at 60 A / 100 % at 46 A (TIG/MMA)
Open circuit voltage U0: 62 V
Maximum mains current (I1max): 21 A | 20.6 A | 14.5 A (FLUX/MMA/WIG)
Maximum effective mains current (I1eff): 8.1 A | 8 A | 5.6 A (FLUX/MMA/WIG)
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Weight: 7 kg
Dimensions L x W x H (mm): 395 x 205 x 345
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd.
Scope of delivery
1 x Stahlwerk FLUX 140 ST digital welding machine
1 x Stahlwerk FLUX welding torch AK14 / MB14 2 m for wire thicknesses from 0.8 to 1.0 mm, 9 mm connecting mandrel with wire feed-through, 2-pin connection for switching operations
1 x earth cable 1 m (ø 20 mm²)
1 x nozzle holder (pre-assembled on torch)
1 x contact tip 0.9 (pre-assembled on torch)
1 x wire guide roller 0.6 mm / 0.8 mm, 0.9 mm, 1.0 mm (already installed in the device)
1 x wire brush
1 x slag hammer
1 x protective cover
1 x MIG MAG premium cored wire E71T-GS ø 0.9 mm / 0.45 kg S100/D100 wire reel
1 x welding wire MIG MAG premium cored wire E71T-GS 0.9 mm S100/D100 1 kg
1 x Professional welding helmet
Voltage | 230 V |
Welding device Type | Inverter welder |
Max. Welding current | 140 A |
Min. welding current | 20 A |
Item number | 58642995 |
Manufacturer | Stahlwerk |
Category | Welding machines |
Release date | 15.5.2025 |
Sales rank in Category Welding machines | 30 of 453 |
Colour | Grey |
Exact colour description | Black, Grey, White |
Welding device Type | Inverter welder |
Max. Welding current | 140 A |
Min. welding current | 20 A |
Power source | Electrical connection |
Voltage | 230 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.40 m |
Width | 0.21 m |
Height | 0.35 m |
Weight | 7 kg |
