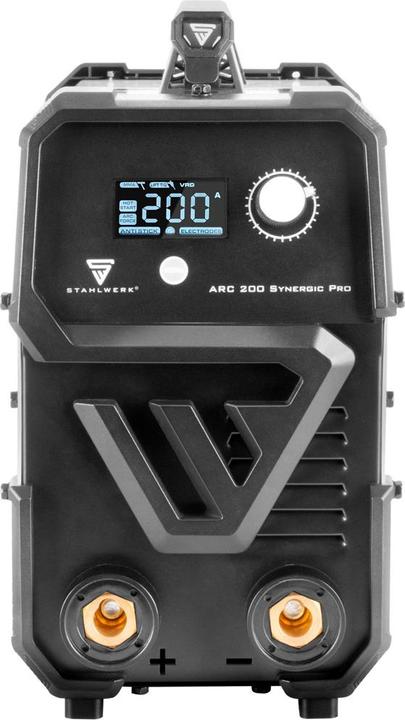

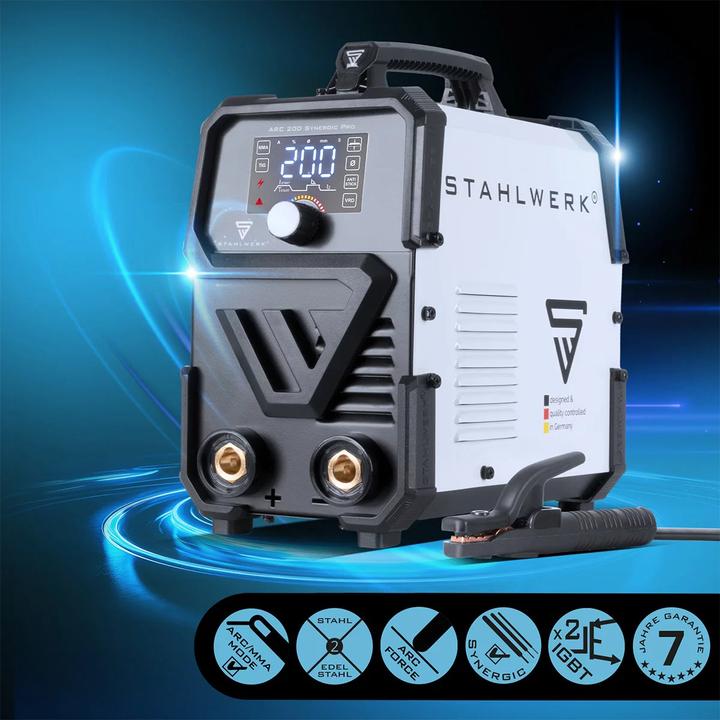

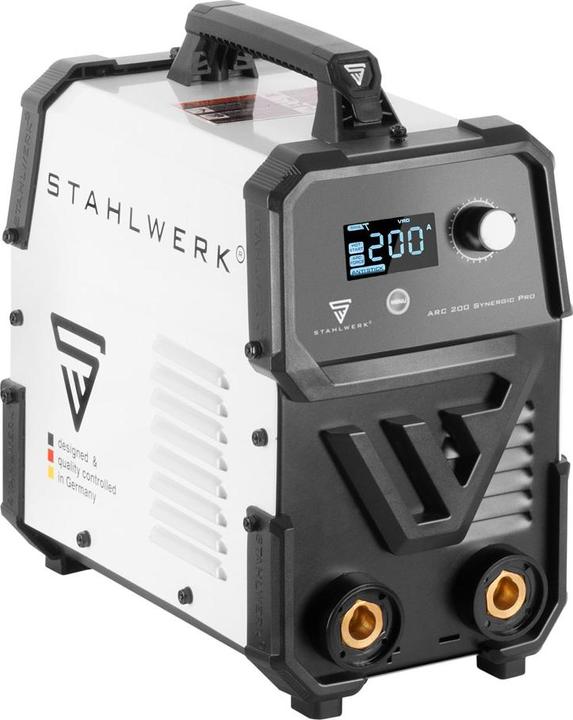

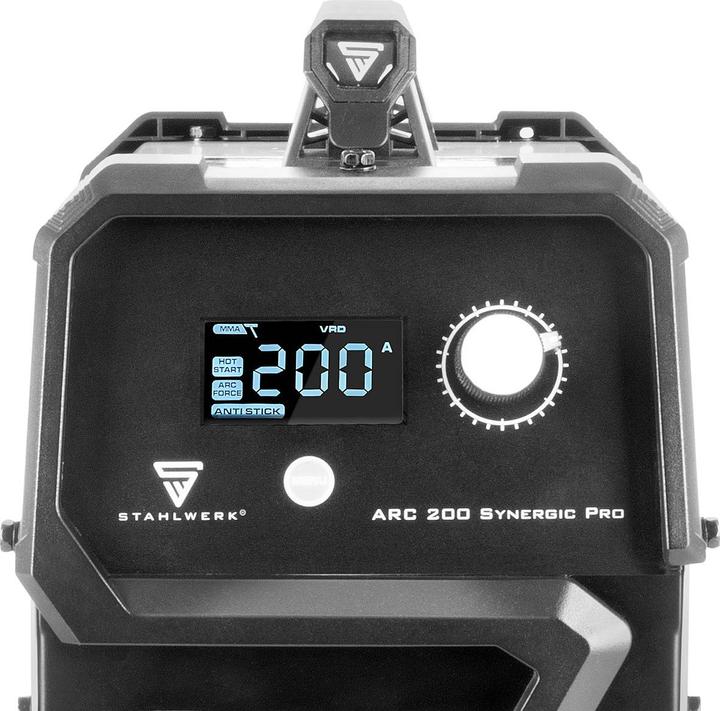

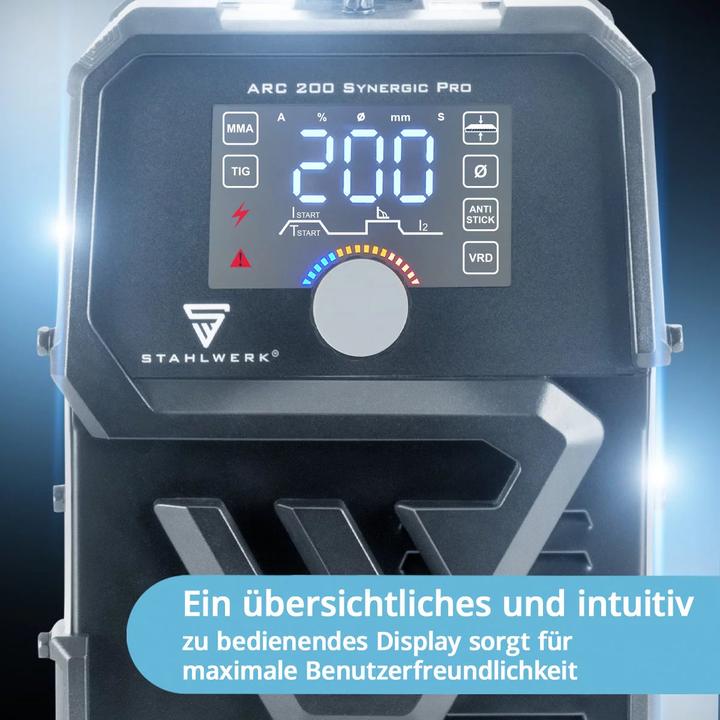

Stahlwerk Electrode welding machine ARC 200 Synergic Pro fully equipped

Properties

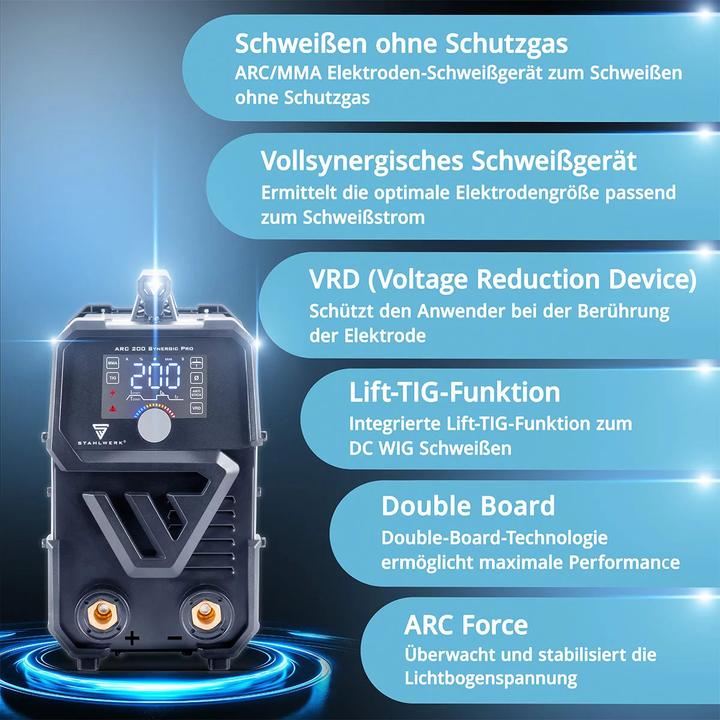

MMA / E-Hand. Manual electrode welding is a universal welding process as it can be used under almost all conditions.
Anti-stick. If the electrode sticks to the workpiece, the welding current is automatically reduced. The electrode does not anneal and can be easily detached from the workpiece.
Hotstart. Automatic voltage increase at the start for better ignition results. Prevents the sticking of the rod electrode by briefly superimposing the set welding current and heats up the start of the weld seam more quickly.
IGBT technology. Powerful, innovative solution that sets new standards in welding technology.

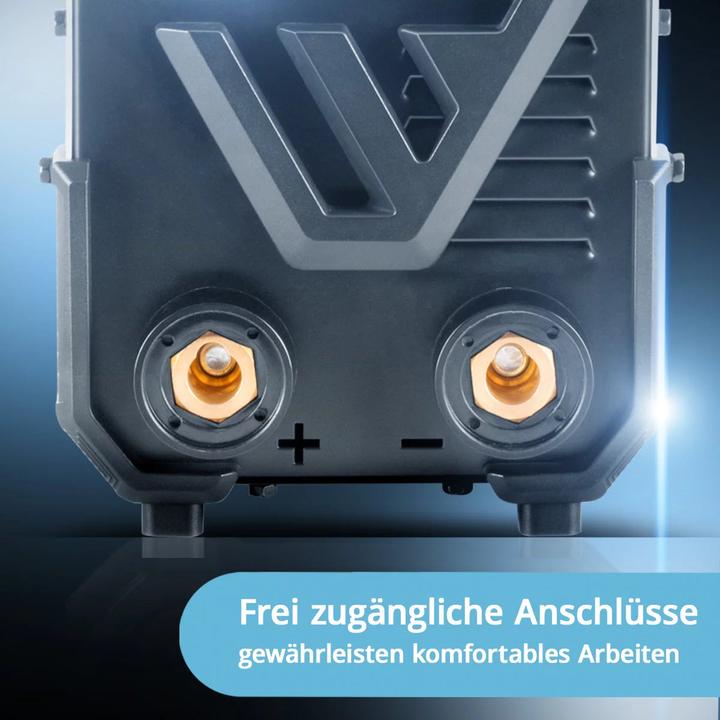

Equipped with solid 13 mm professional connection sockets, the device guarantees maximum performance.

Technical data

Model: Stahlwerk ARC 200 Synergic Pro welding machine
Output current MMA/Lift TIG: 10 -200 A
Duty cycle (40°C): 10% at 200 A / 100% at 63 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 40 A
Maximum effective mains current (I1eff): 12,6 A
Weight: 4.2 kg

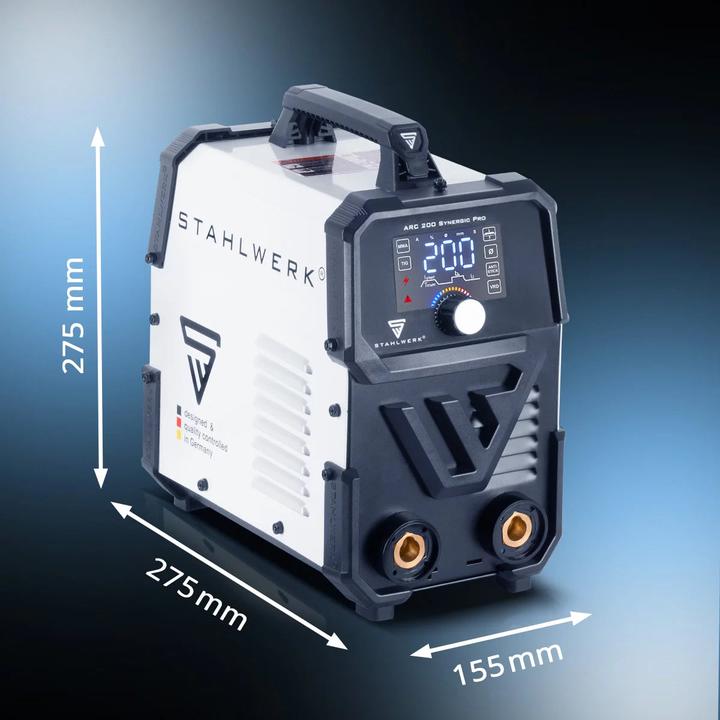

Dimensions L x W x H (mm): 275 x 155 x 275
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd

Scope of delivery

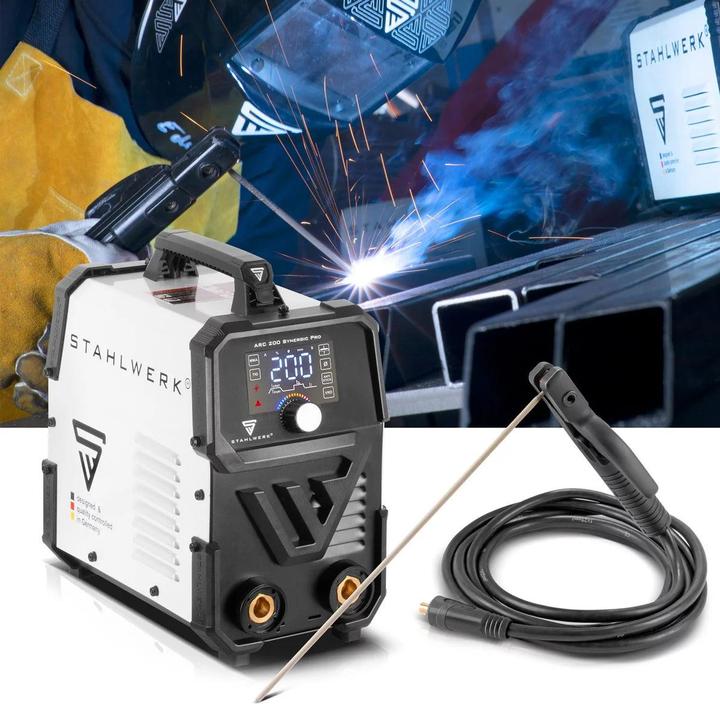

1 x Stahlwerk ARC 200 Synergic Pro welding machine
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x steel brush
1 x slag hammer
1 x protective cover
1 x WORKER 3-in-1 automatic welding helmet Welding shield
1 x rod electrodes AWS E6013RR thick rutile coated 2mm x 300mm
