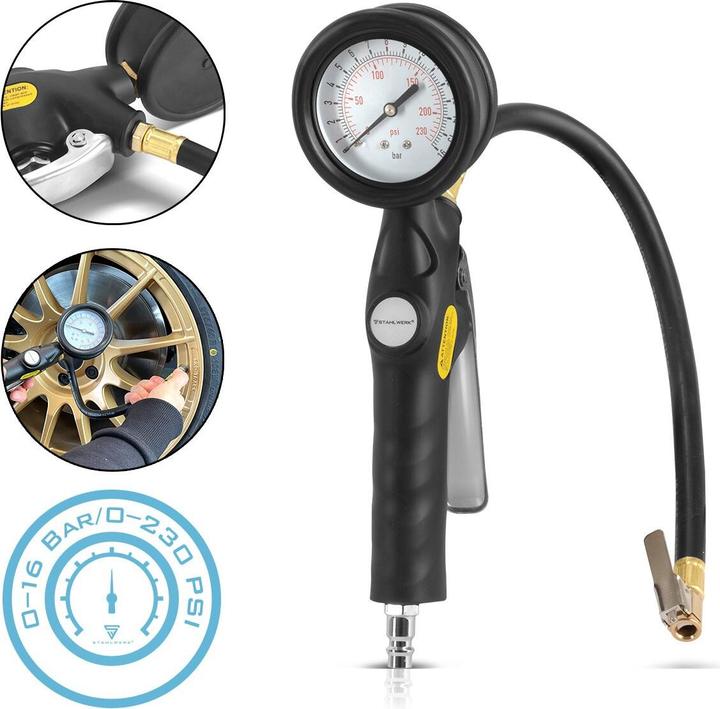

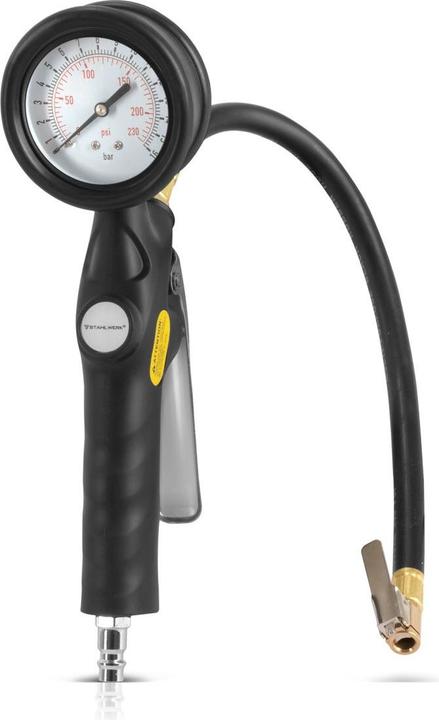

Stahlwerk DRA-162 ST compressed air tyre inflation gun, 0 to 16 bar / 0 to 230 PSI

Properties

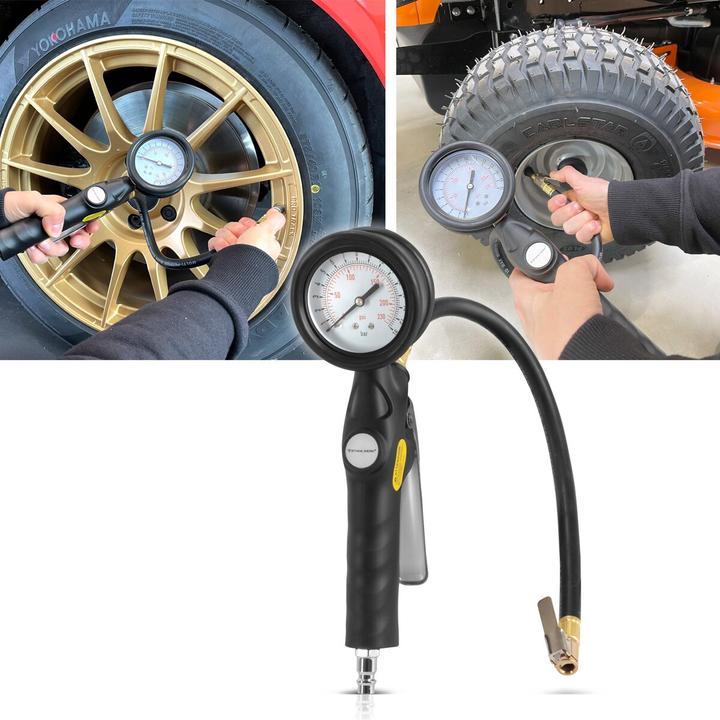

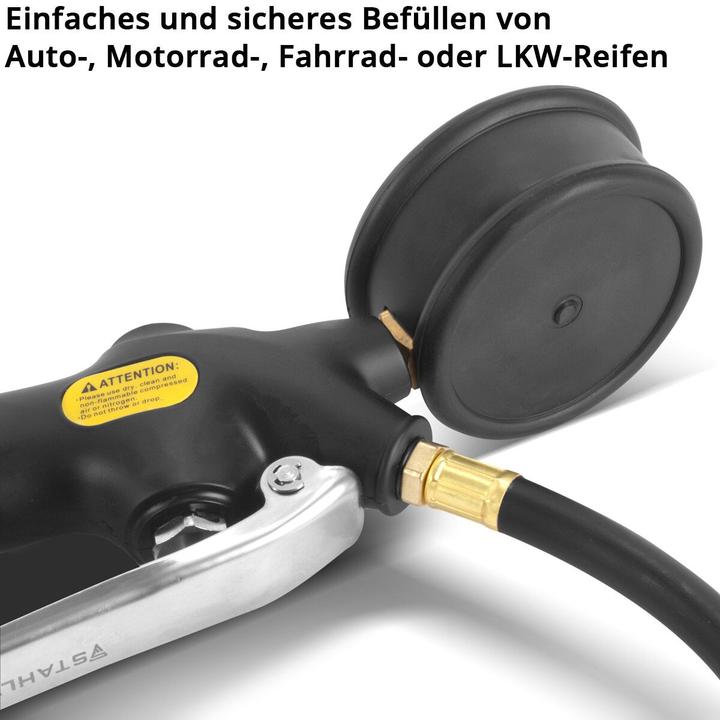

The Stahlwerk compressed air tyre inflation gun makes it easy and safe to inflate car, motorbike, bicycle or truck tyres.

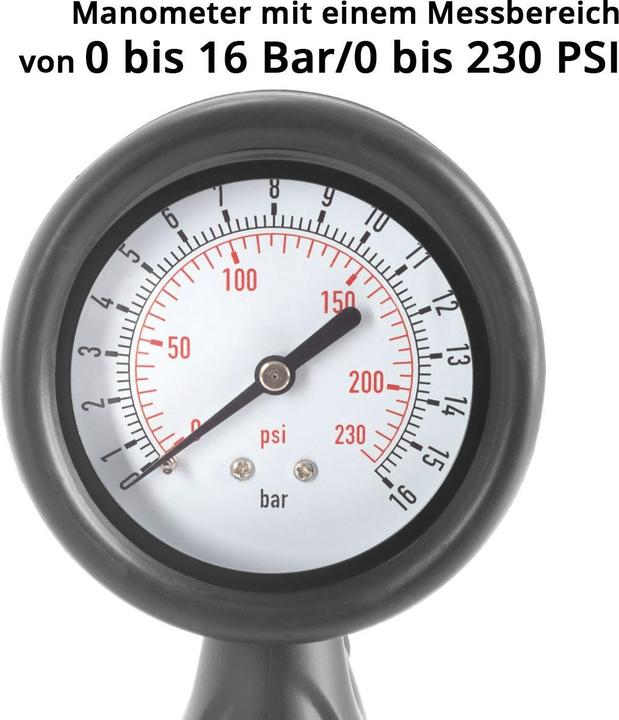

The 2-in-1 tyre pressure gauge allows measurement in two units: Using the built-in pressure gauge with a measuring range of 0 to 16 bar/0 to 230 PSI, the tyre pressure can be checked precisely directly during inflation. The large diameter of the pressure gauge makes it easier to read the measurement results accurately.

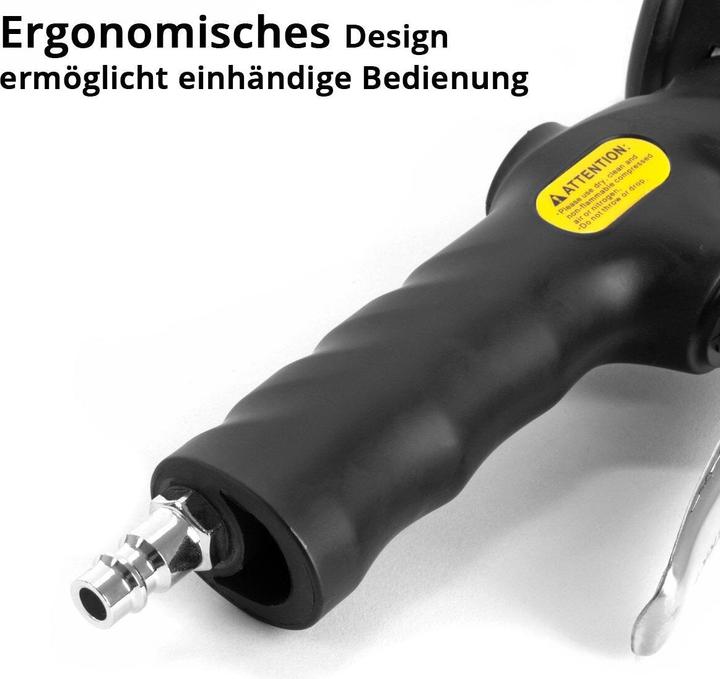

Thanks to its ergonomic design, the tyre pressure gauge can be conveniently operated with one hand using the lever. Press lightly to deflate, press harder to inflate the tyre.

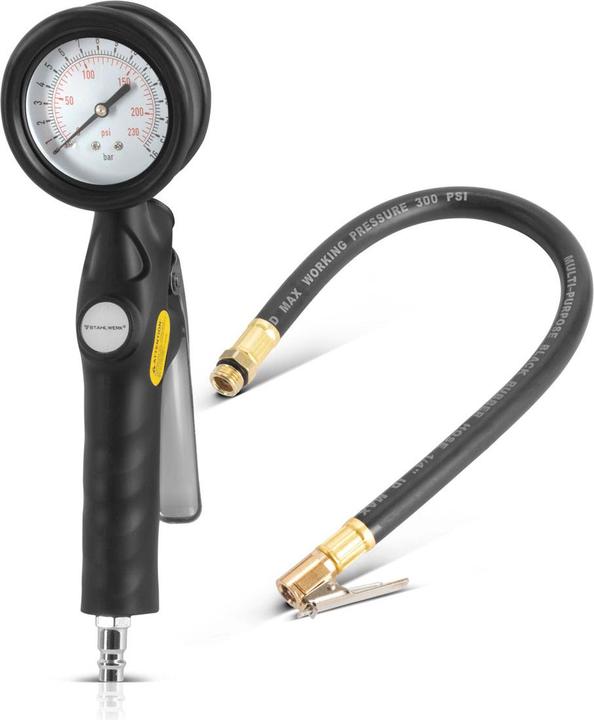

The flexible 380 mm hose and the uncomplicated connection using a quick-release coupling guarantee easy handling.

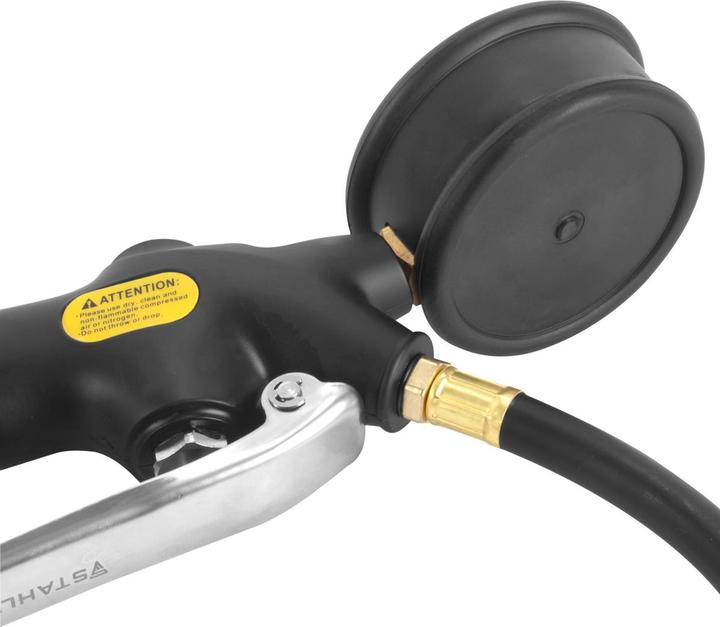

The tyre inflator can be connected to a compressor using the 1/4" quick connector with a nominal width of 7.2 mm.
The tyre inflation gun is suitable for any tyre system and is suitable for professional use in the workshop or garage thanks to its robust design.

Technical data

Measuring/filling range: 0 to 16 bar/ 0 to 230 PSI
Length of the filling hose: approx. 380 mm
Dimensions without hose (HxWxD): 265 x 80 x 80 mm
Pressure gauge diameter: 60 mm
Weight: 492 g
Air inlet (from compressor): Female thread (IG) 1/4
Integrated coupling plug according to EU standard nominal width 7.2 mm
Material: Plastic, metal, rubber

Scope of delivery

Stahlwerk compressed air tyre inflation gun DRA-162 ST
Filling hose with quick coupling
