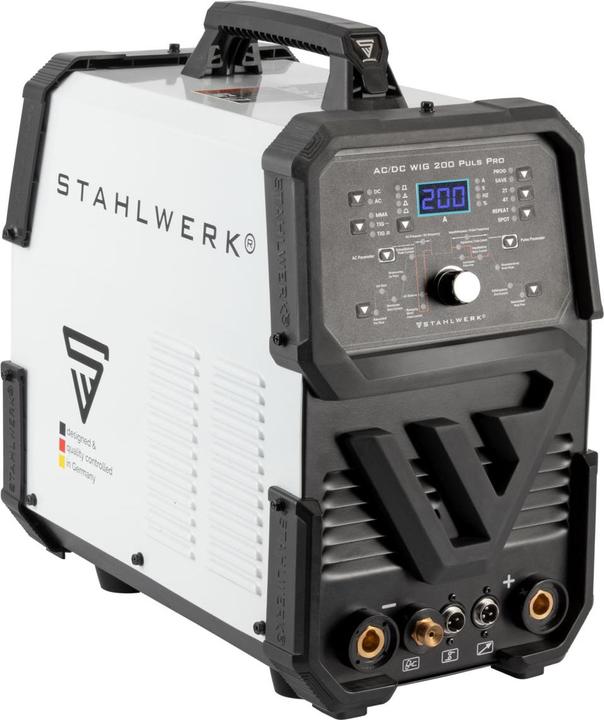

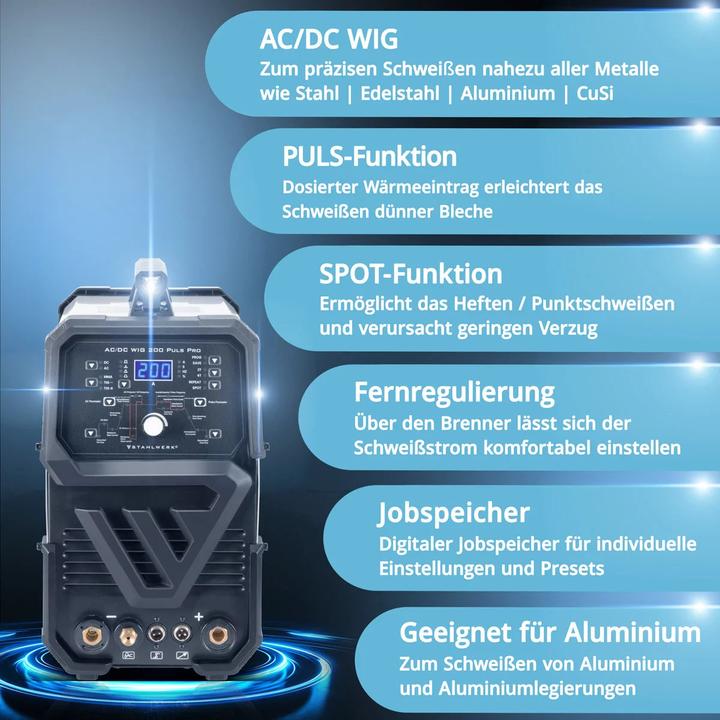

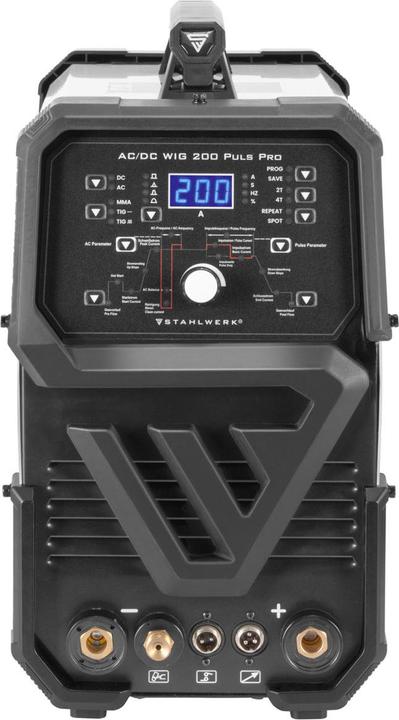

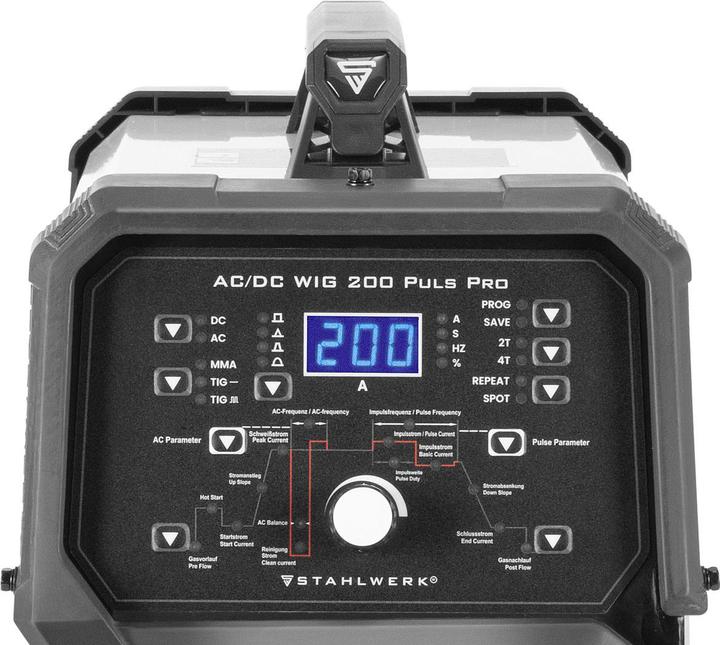

Stahlwerk Digital welder AC/DC TIG 200 Pulse Pro IGBT Inverter 200A

Properties

DC arc welding (MMA/E-hand). MMA/electrode manual welding is a universal welding process as it can be used under almost all conditions. Various electrodes with different polarities can be connected for MMA/electrode manual welding.
DC TIG arc welding (DC TIG). TIG arc welding with direct current. The polarity of the tungsten electrode is either positive or negative during the entire welding process.
TIG pulse welding. In TIG pulse welding, a base current and a high pulse current of the same polarity are added at regular intervals in order to optimise the arc properties for the desired welding applications. This avoids the risk of burn-through in thin materials and reduces the deformation of the material due to the heat.

Technical data

Model: AC/DC TIG 200 Pulse Pro welding machine
Output current (TIG / MMA): 5 - 200 A / 30 - 160 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50 Hz
Maximum mains current (I1max) / (TIG / MMA): 28 A
Maximum effective mains current (I1eff) / (TIG / MMA): 15.6 A
Weight: 17.5 kg
Dimensions L x W x H (mm): 450 x 235 x 440
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TÜV Rheinland

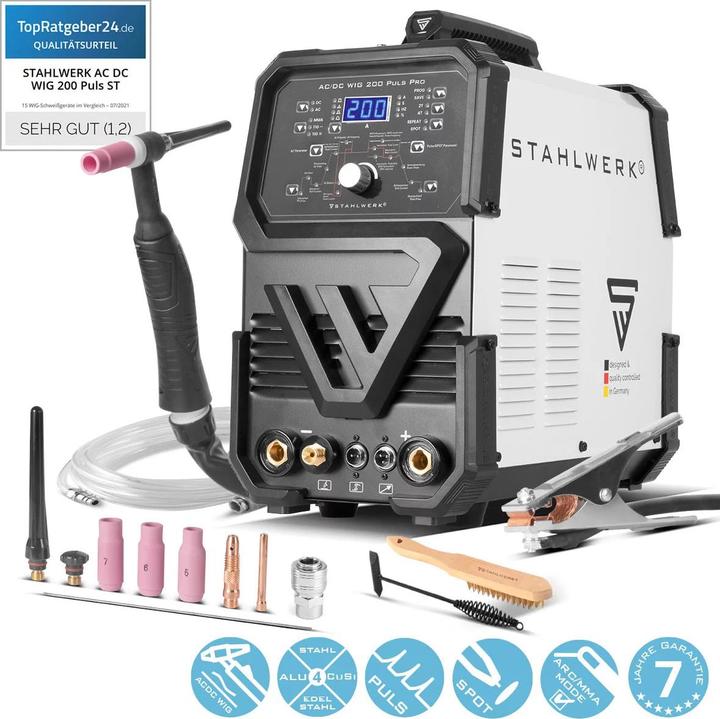

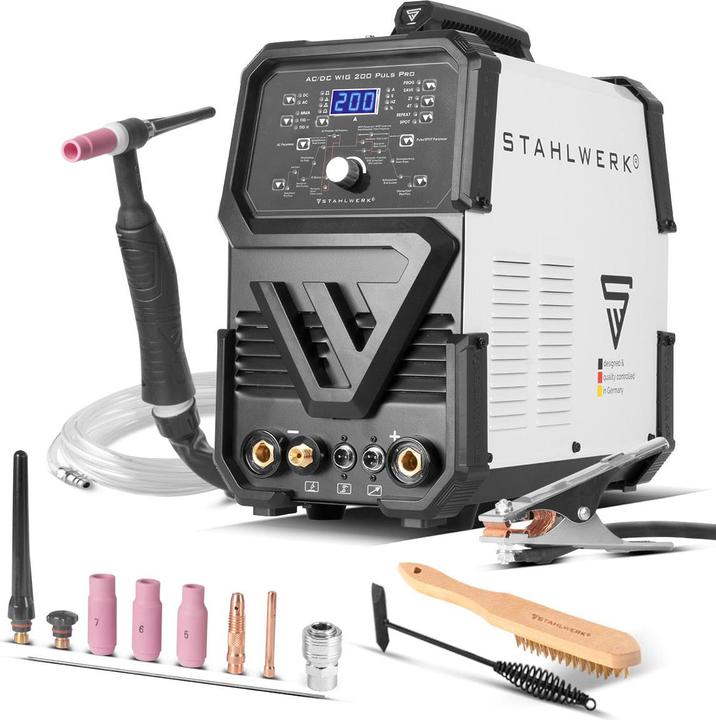

Scope of delivery

1 x AC/DC TIG 200 Puls Pro welding machine
1 x Gas connection hose with quick-release coupling 3 m
1 x WP-26FR TIG torch (incl. TIG accessories starter set)
1 x 300A earthing clamp 3 m cable
1 x wire brush
1 x protective cover
