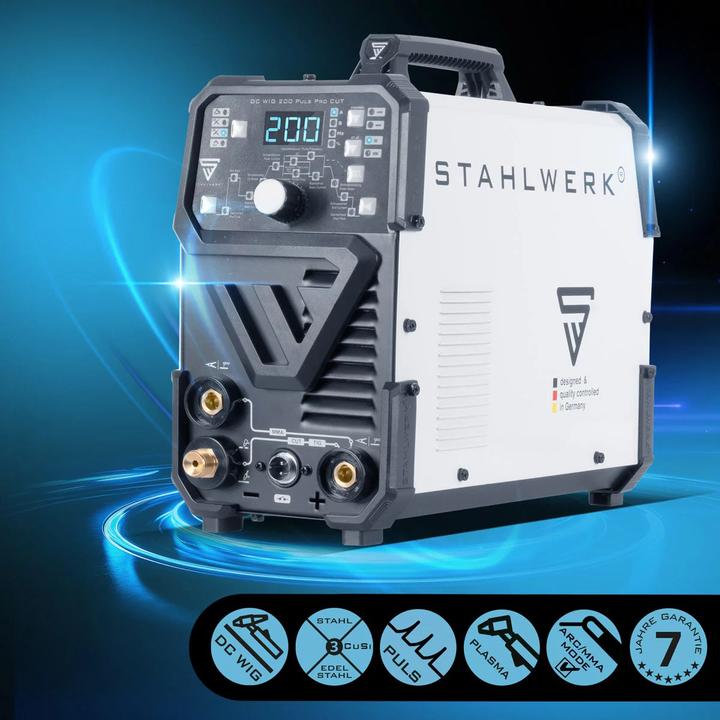

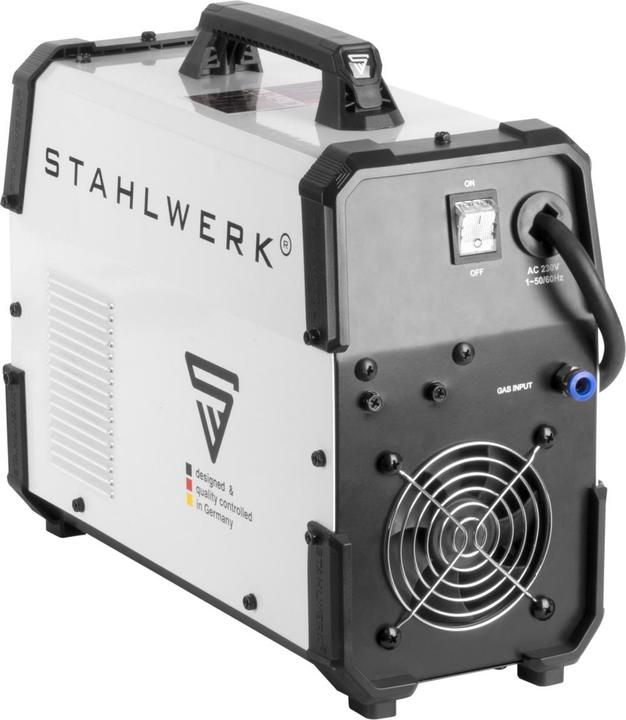

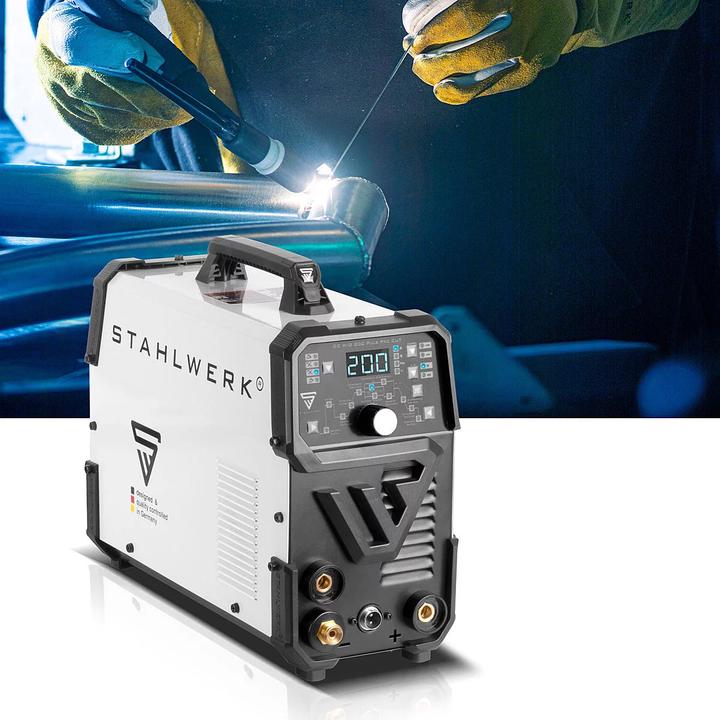

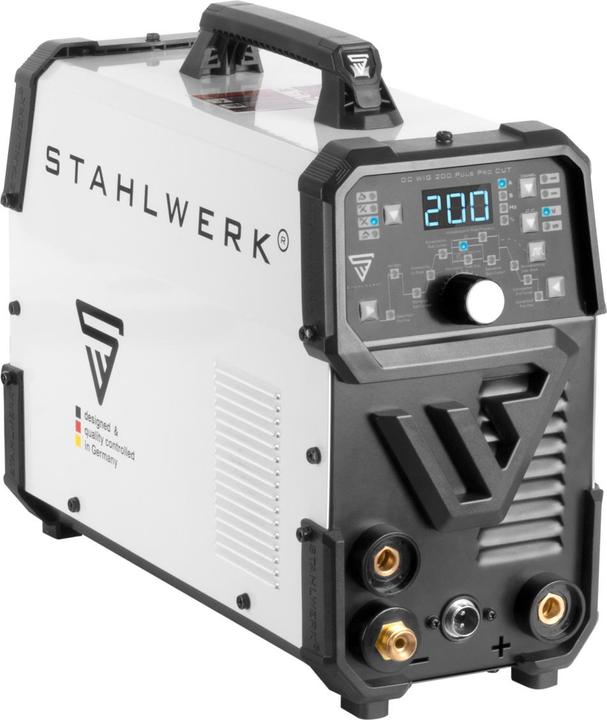

Stahlwerk DC TIG 200 Pulse Pro CUT 4-in-1 combi welder

Technical data

Model: Steelworks DC TIG 200 Pulse Pro CUT
Output current TIG / MMA / CUT: 10 - 200 A (TIG) / 10 - 160 A (MMA) / 15 - 40 A (CUT)
Duty cycle (40°C): 15 % at 200 A / 100 % at 77 A (TIG) / 15 % at 160 A / 100 % at 62 A (MMA) / 15 % at 40 A / 100 % at 20 A (CUT)
Cutting capacity: depending on material up to 12 mm
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 30 A
Maximum effective mains current (I1eff): 11,6 A
Weight: 6.8 kg
Dimensions L x W x H (mm): 370 x 160 x 295
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd.

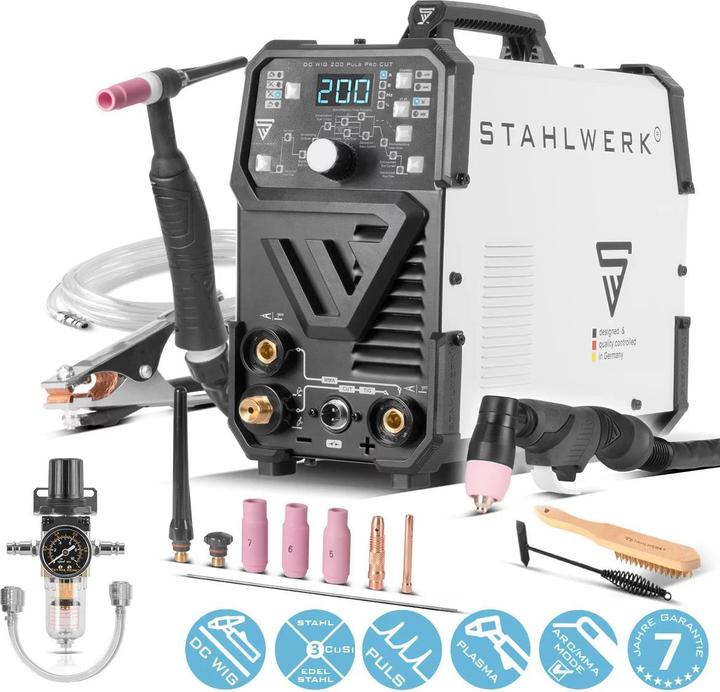

Scope of delivery

1 x Steelworks DC TIG 200 Pulse Pro CUT welding machine
1 x WP-26F professional TIG welding torch with 3 metre hose package, ball joint and flexible torch head
1 x TIG TIG accessory set 8 pieces: 3 x gas nozzles sizes: 5, 6, 7, 1 x clamping sleeve size 1.6, 1 x clamping sleeve housing size 1.6, 2 x torch caps - one short and one long, 1 x universal tungsten electrode 1.6 mm
1 x earth cable 3 metres

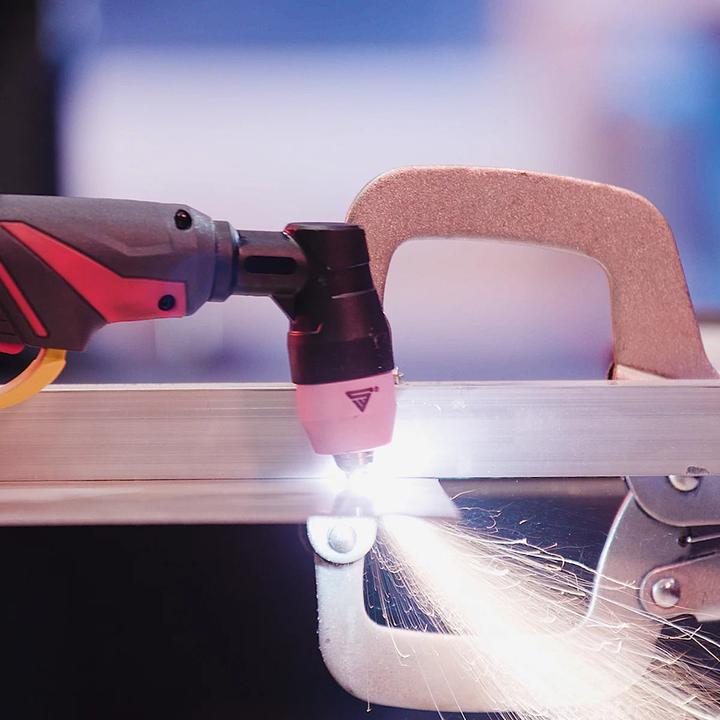

1 x professional plasma hose package AG-60/SG-55 3 metres
1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):

1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap

1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the appliance to the water separator
1 x Gas connection hose with quick-release coupling 5 metres
1 x wire brush
1 x protective cover
