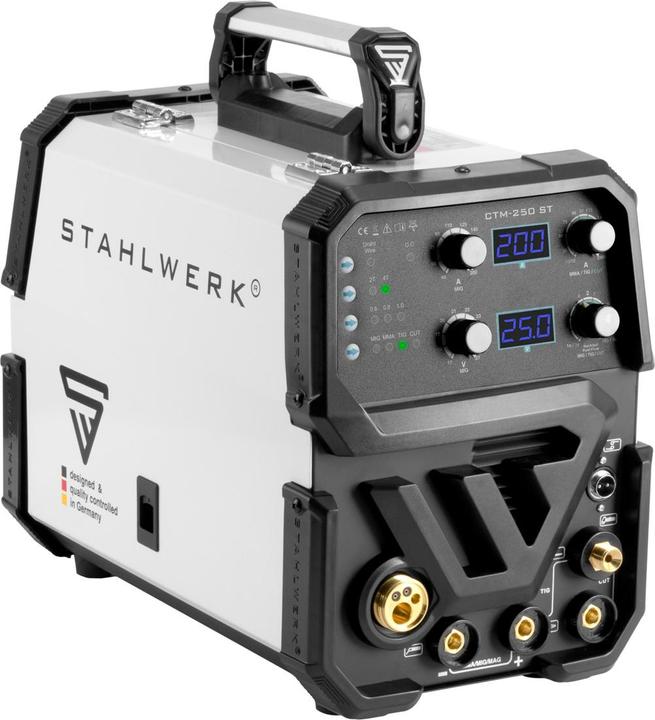

Stahlwerk CTM-250 ST Digital 5-in-1 inverter combi welder with 200 A

Technical data
Model: STAHLWERK CTM-250 ST
Digital combination welding machine
Output current (TIG / MMA / MIG / CUT):
TIG / MMA: 10-200 A
MIG: 40-200 A
CUT: 15-50 A
Duty cycle TIG / MIG (40°C):
15% at 200 A
100% at 77 A
MMA duty cycle (40°C):
10% at 200 A
100% at 63 A
CUT duty cycle (40°C):
15% at 50 A
100% at 19 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) (TIG / MMA / MIG / CUT):
26.8 A / 41.7 A / 35.7 A / 37.2 A

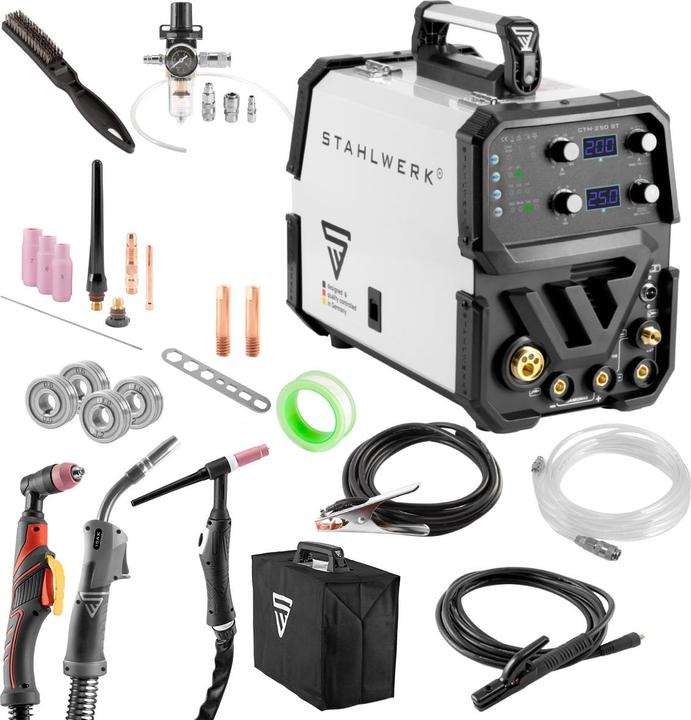

Scope of delivery
1 x STAHLWERK CTM-250 ST Digital combination welding machine
1 x WP-26F professional TIG welding torch / 3 meter hose package
1 x TIG accessory set (8 pieces)
1 x AK-15 professional MIG welding torch / 3 meter hose package with Euro central connection
1 x 3-piece MIG accessory set (already pre-assembled on the MIG/MAG torch)
1 x contact tip M6 x 28 - ø 0.8 mm
1 x contact tip M6 x 28 - ø 1.0 mm
1 x assembly wrench
1 x professional plasma hose set AG-60/SG-55 (3 meters)
1 x 3-piece plasma accessory set (already pre-assembled on the plasma torch)
1 x gas connection hose with quick coupling (5 meters)
1 x connecting hose with snap-on quick couplings from the appliance to the water separator, including 6-piece connection set
1 x Teflon tape
2 x wire guide rollers each 0.8 & 1.0 V (already installed in the device), 0.6 & 0.8 V, 1.0 & 1.2 U
1 x earth cable (3 meters, 25 mm² and 9 mm mandrel connection)
1 x electrode holder (3 meters, 25 mm² and 9 mm mandrel connection)
1 x water separator with pressure gauge and snap-on quick couplings
1 x slag hammer
1 x protective cover.
