Stahlwerk Compressed air hose reel automatic reel 20m 18 bar

Stahlwerk compressed air hose automatic reel 20 m

Stahlwerk compressed air hose reel with automatic reel, 20+2 m, operating pressure up to 18 bar, standard quick coupling (nominal width 7.2 mm) with practical snap function, robust plastic housing including wall mounting set.

Features

The high-quality Stahlwerk automatic compressed air hose reel with a length of 20+2 m works with an operating pressure of up to 18 bar and has a standard quick-release coupling (nominal width 7.2 mm) with a practical snap function for quick and easy commissioning.

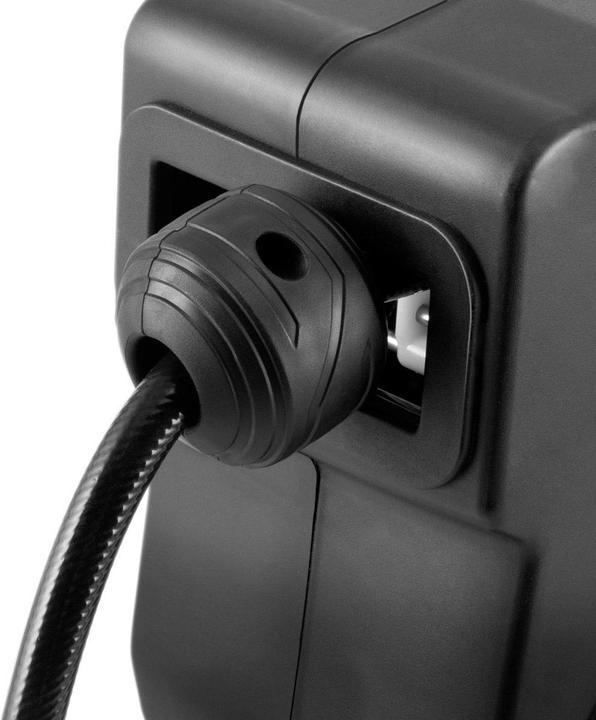

A robust plastic housing with a powerful automatic retractor keeps the workplace tidy and protects the compressed air hose from wear and damage. The locking function makes it easy to select the desired length of hose.

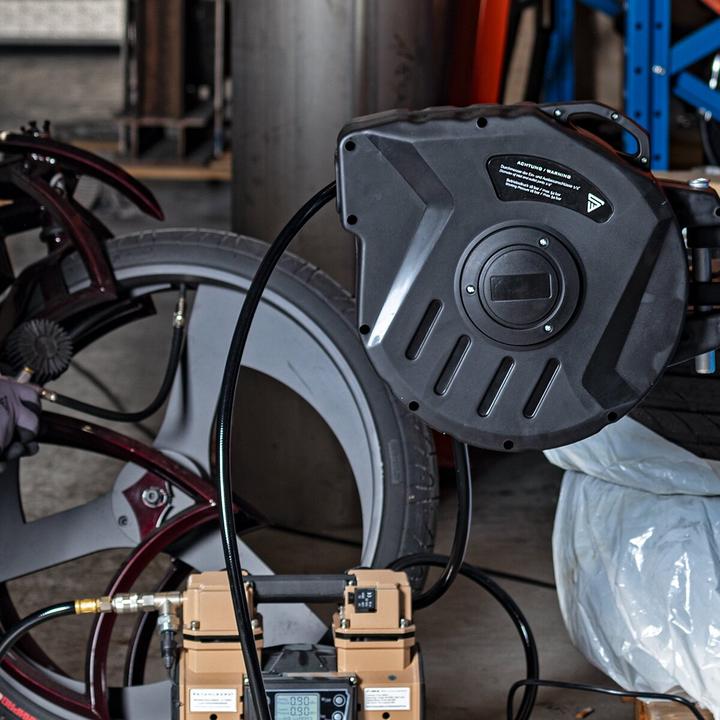

Convenient working and maximum flexibility: The practical wall mounting set ensures simple, stable and secure attachment to the wall and allows the hose reel to be rotated by up to 180°. Ideal for industry, trade, commerce and DIY.

Technical data

Designation: Compressed air hose automatic reel DA-20 ST
Operating pressure: up to 18 bar

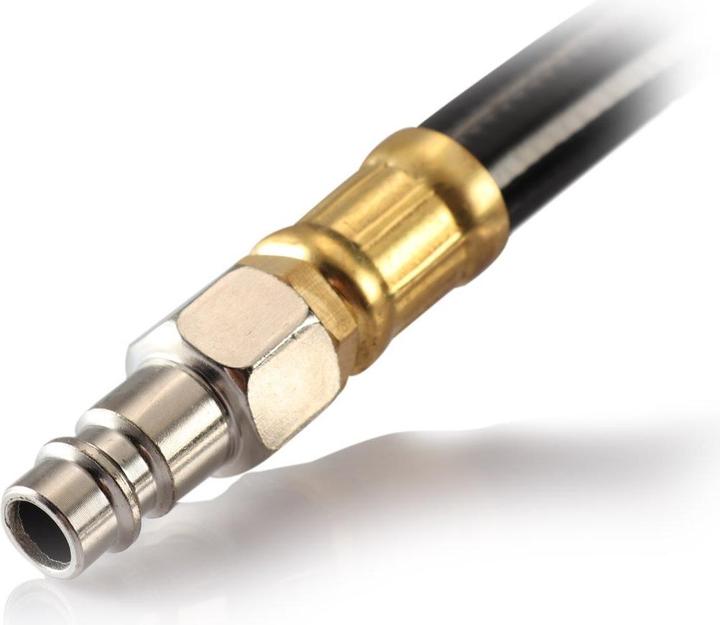

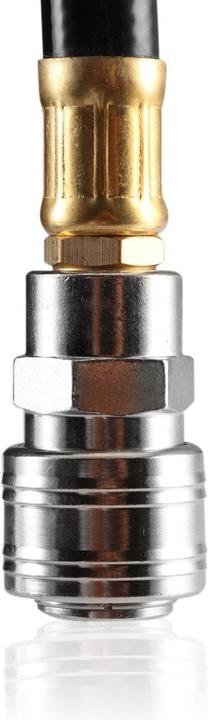

Connection: Standard quick coupling (nominal width 7.2 mm)
Hose diameter: 15 mm
Inner diameter: 9 mm
Weight: 7 kg
Swivelling range for wall mounting: 180°

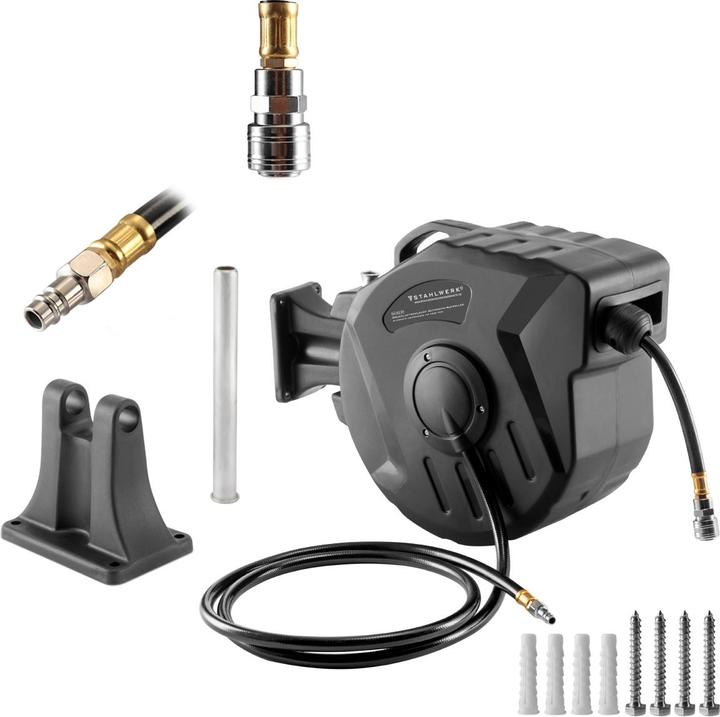

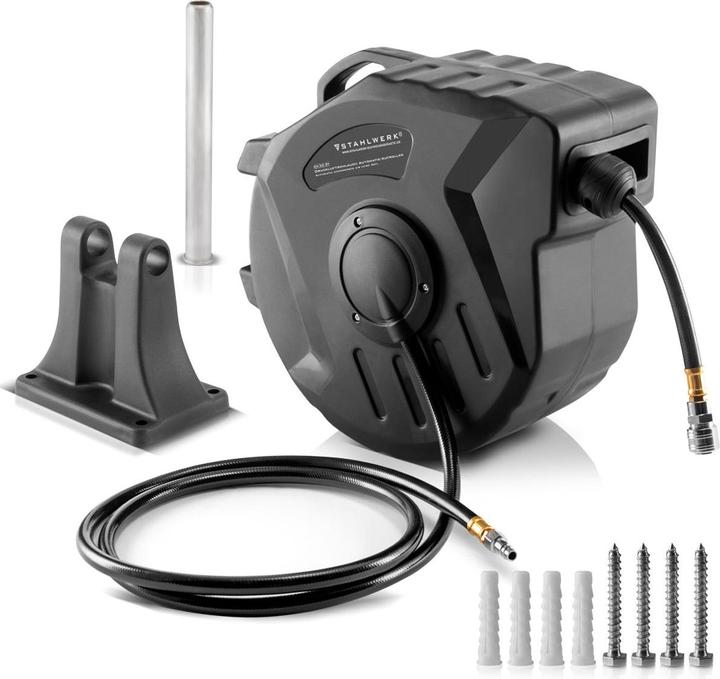

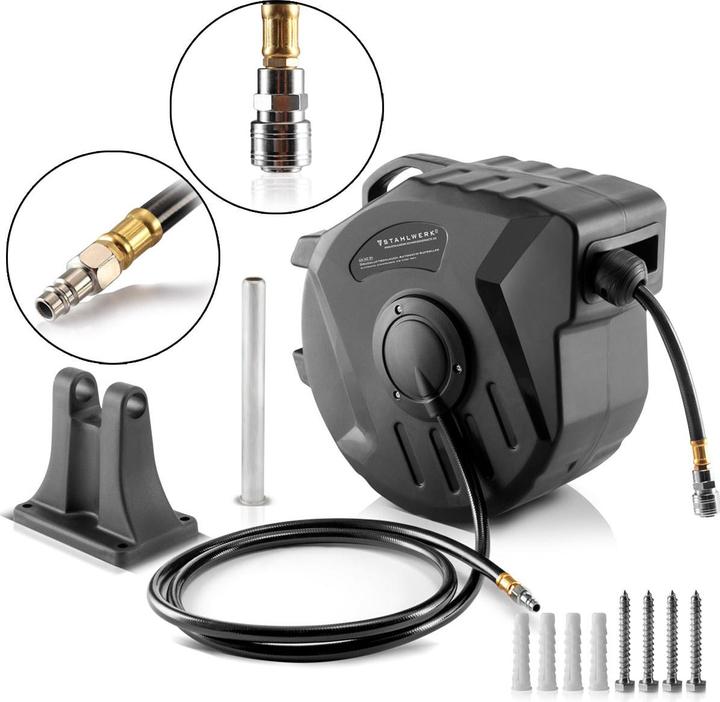

Scope of delivery

1 x DA-20 ST automatic compressed air hose reel
1 x Wall mounting bracket
1 x fixing pin
4 x screws
4 x dowels
