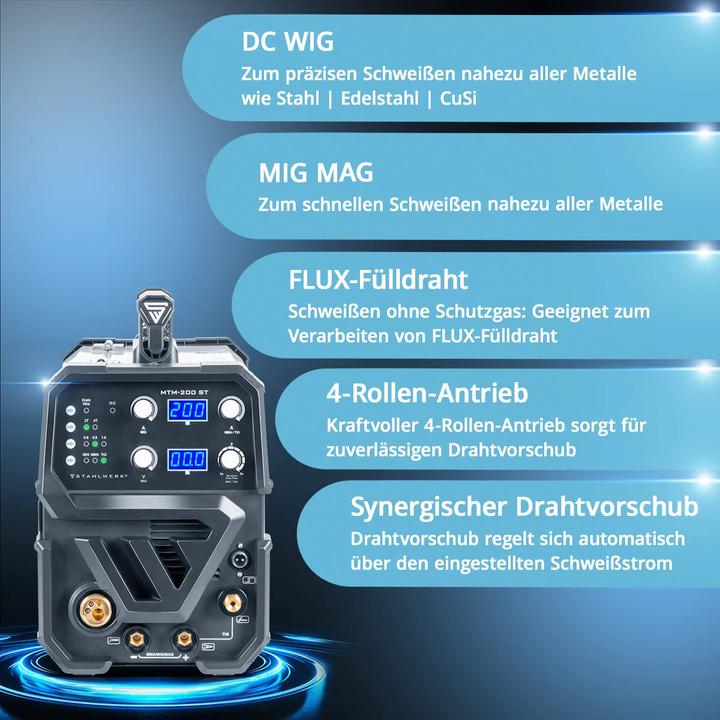

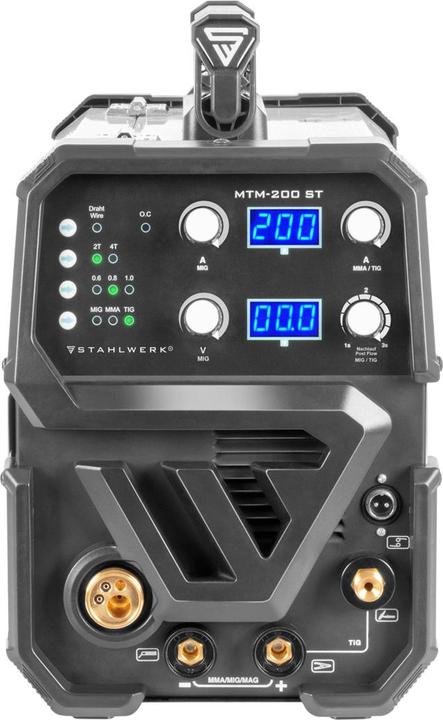

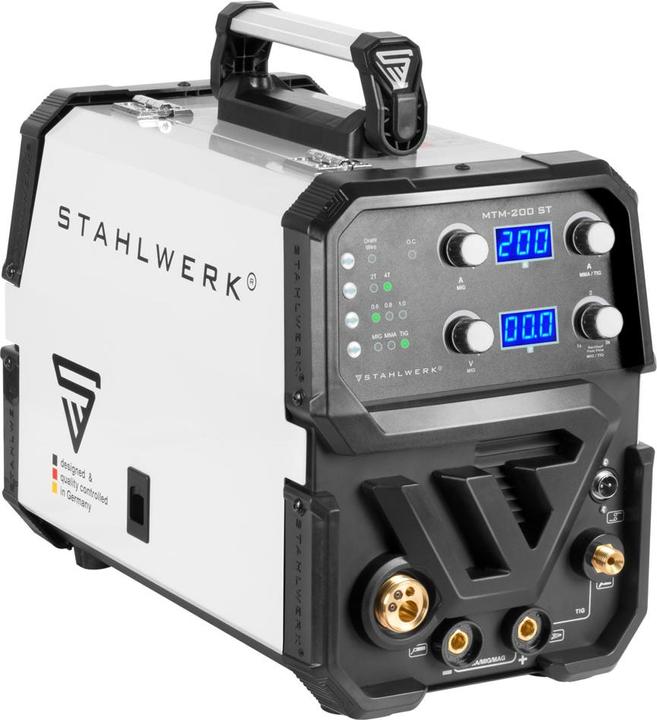

Stahlwerk Combination welding machine MTM-200 ST 3-in-1 with 200 A synergic wire feed

Technical data

Model: Steel mill welding machine MTM-200 ST
Output current (TIG / MMA / MIG): 10-200 A (TIG / MMA) / 40-200 A (MIG)
Duty cycle TIG (40°C): 15% at 200 A / 100% at 77 A
MMA duty cycle (40°C): 10% at 200 A / 100% at 63 A
MIG duty cycle (40°C): 15% at 200 A / 100% at 77 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) (TIG / MMA / MIG): 26.8 / 41.7 / 35.8 A
Maximum effective mains current (I1eff): (WIG / MMA / MIG) 10.4 / 13.2 / 13.9 A
Weight: 11.9 kg

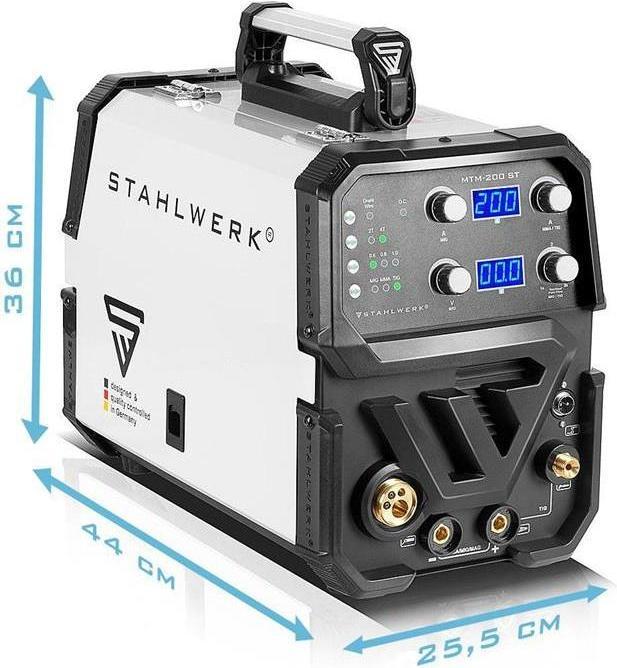

Dimensions L x W x H (mm): 440 x 255 x 360
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TÜV Rheinland LGA Products GmbH

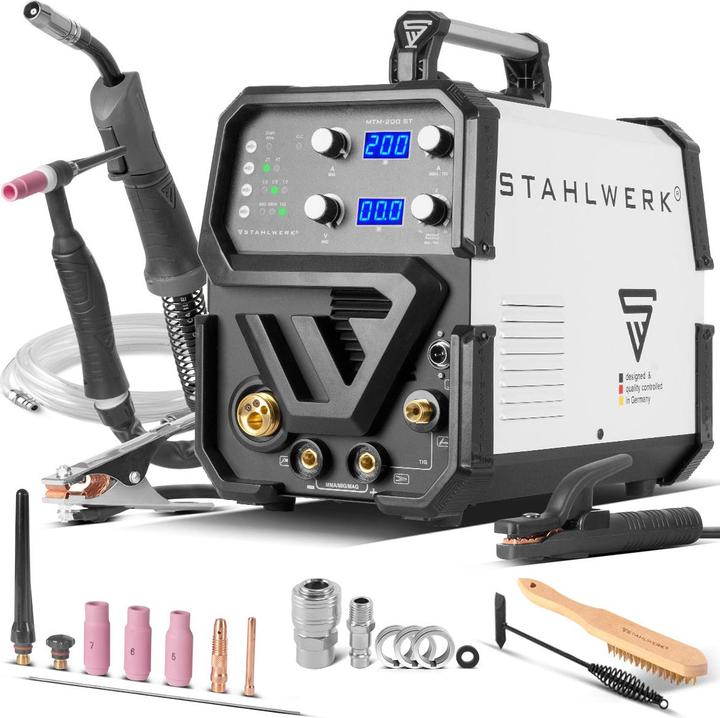

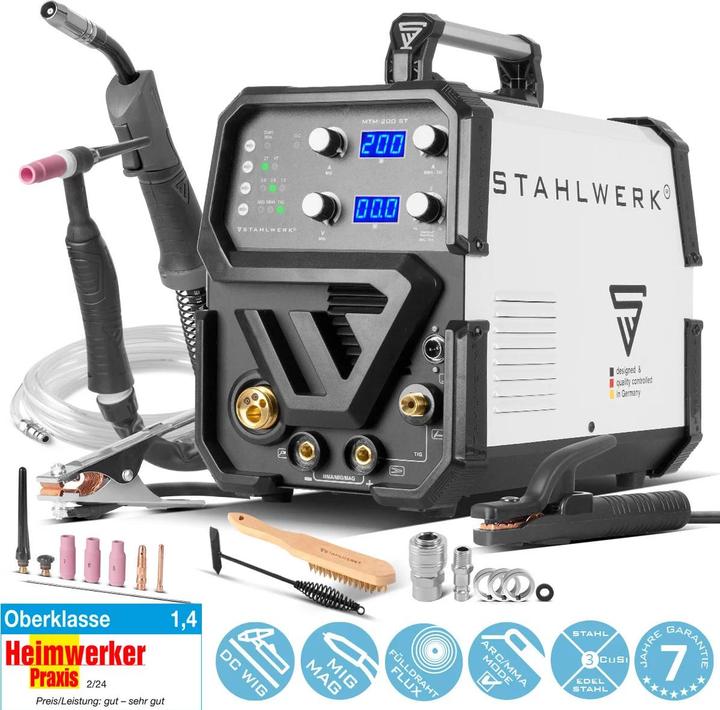

Scope of delivery

1 x MTM-200 ST steelwork welding machine
1 x Professional TIG welding torch WP-26F / hose package 3 metres* with flexible torch head and kink protection on the gas connection
TIG TIG accessory set 8 pieces:

3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode 1.6 mm

1 x AK-15 professional MIG welding torch / 3 metre hose package with Euro central connection

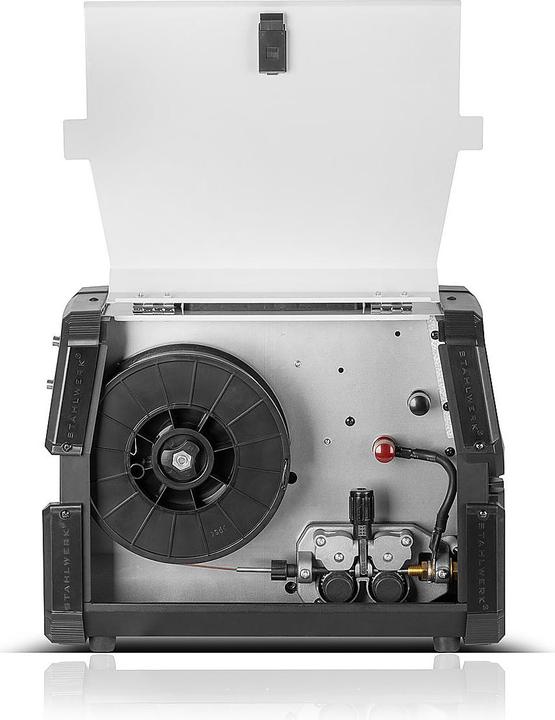

2 x wire guide rolls 0.8 mm & 1.0 mm with 'V' profile (already installed in the device)
2 x wire guide rolls 0.6 mm & 0.8 mm with 'V' profile
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire brush
1 x slag hammer
1 x Gas connection hose with quick coupling 5 metres
1 x Snap-on connection set
1 x protective cover
