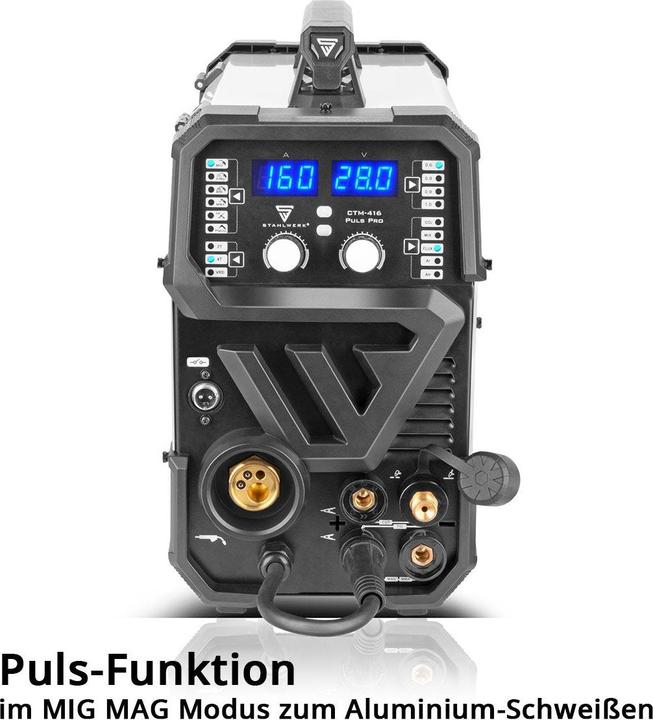

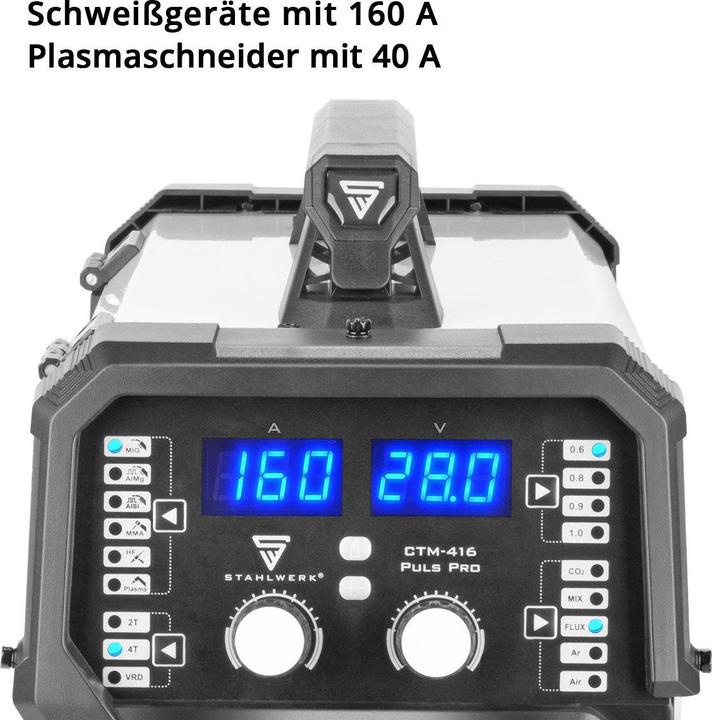

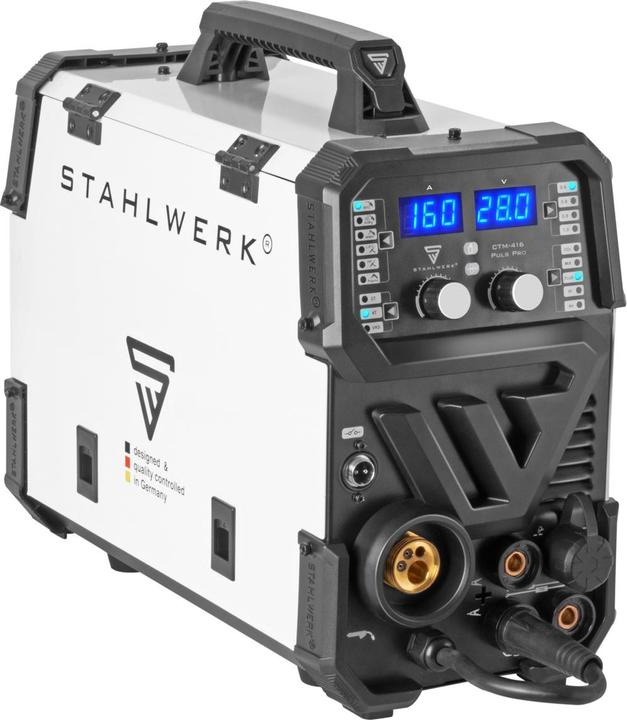

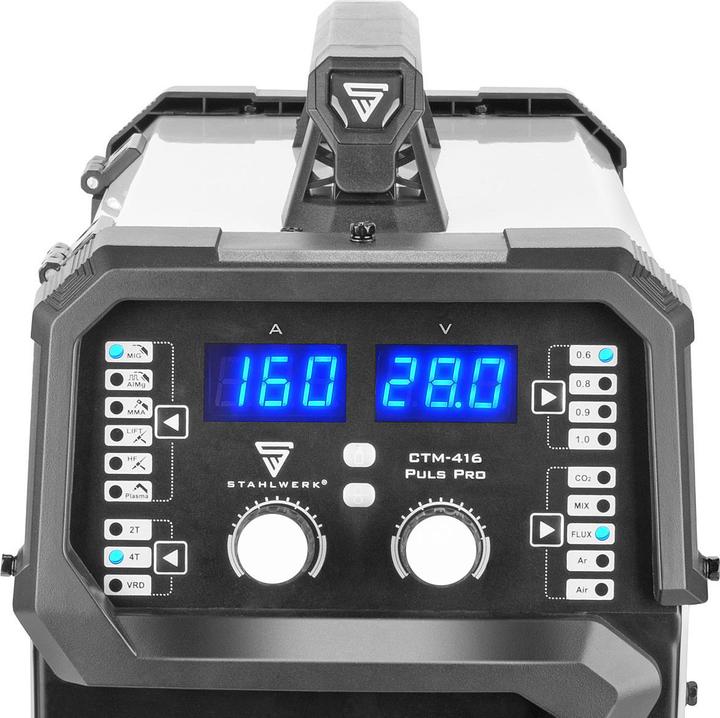

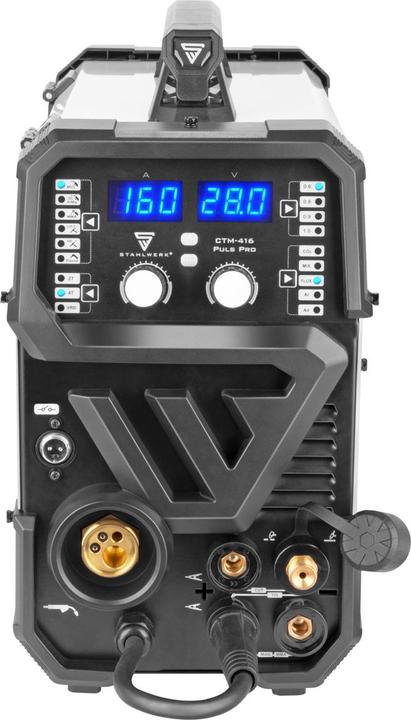

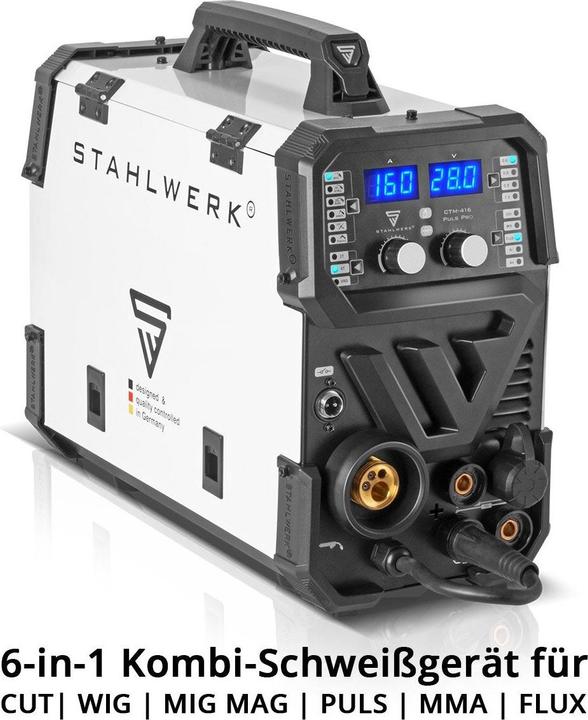

Stahlwerk Combination welding machine CTM-416 PULS 6-in-1 160 A

Technical data

Model: Steelworks welding machine CTM-416 Puls Pro
Output current MIG: 50 - 160 A
Output current MMA: 20 - 160 A
Output current HF TIG: 20 - 160 A
CUT output current: 15 - 40 A
Protection class: IP21S

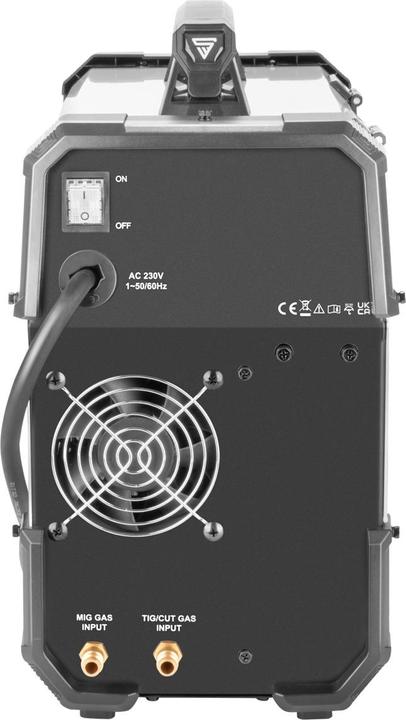

Mains voltage: 1 x 230 V AC (±15 %)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 29.5 A
Maximum effective mains current (I1eff): 11,4 A
Weight: 11.6 kg
Dimensions L x W x H (mm): 460 x 210 x 350
Mains connection: CEE 7/7 Schuko plug

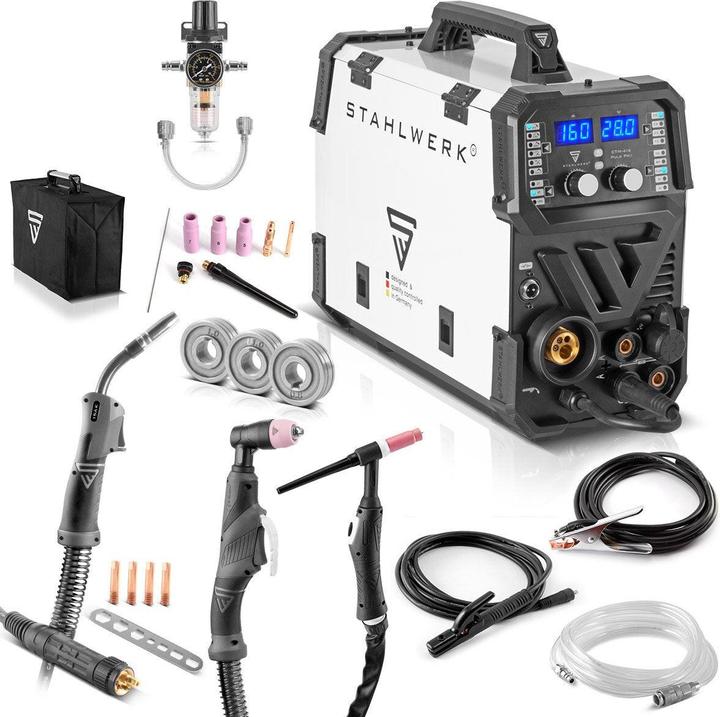

Scope of delivery

1 x CTM-416 ST steel mill
1 x Professional TIG welding torch WP-26F / hose package 3 metres
1 x TIG TIG accessory set 8 pieces
1 x Professional plasma hose package AG-60/SG-55 3 metres
1 x 4-piece plasma accessory set
1 x water separator with pressure gauge and snap-on quick couplings
1 x Connecting hose with snap-on quick-release couplings from the device to the water separator
1 x AK-15 professional MIG welding torch / 3 metre hose package with Euro central connection
1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch): 1 x gas nozzle, 1 x contact tip 0.8 mm, 1 x gas nozzle holder
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire brush
1 x gas connection hose with quick coupling 5 metres
2 x contact tip M6 x 28 - ø 0.8 mm
2 x contact tip M6 x 28 - ø 1.0 mm

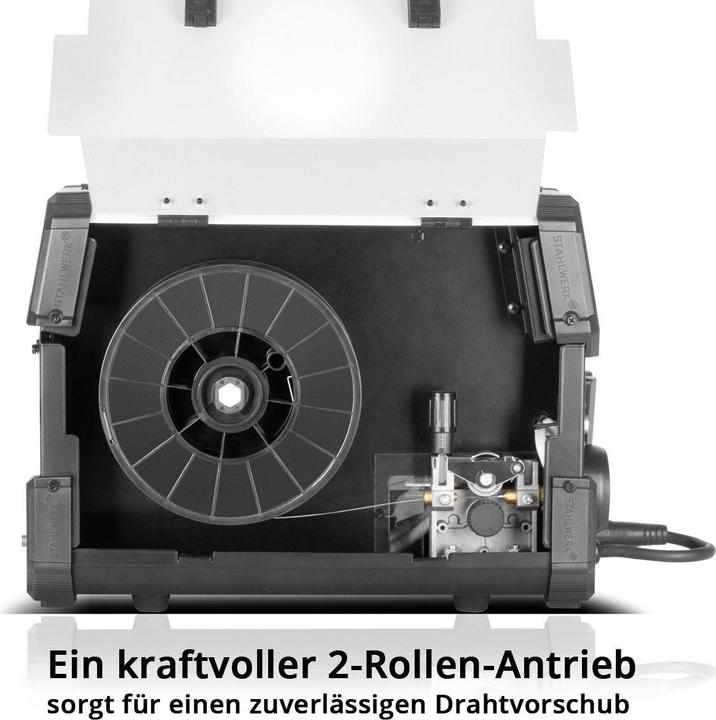

1 x wire guide roller 0.6 mm & 0.8 mm with V profile (already installed in the device)
1 x wire guide roller 0.8 mm & 1.0 mm with V profile
1 x wire guide roller 1.0 mm & 1.2 mm with U profile
1 x wire guide roller 0.9 mm & 1.0 mm with K profile (knurled)
1 x assembly spanner
1 x protective cover
