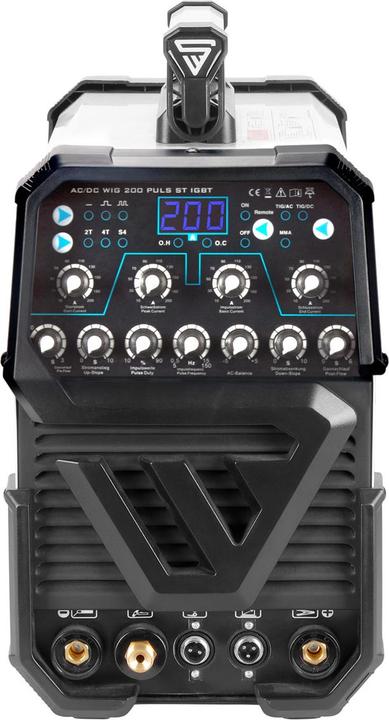

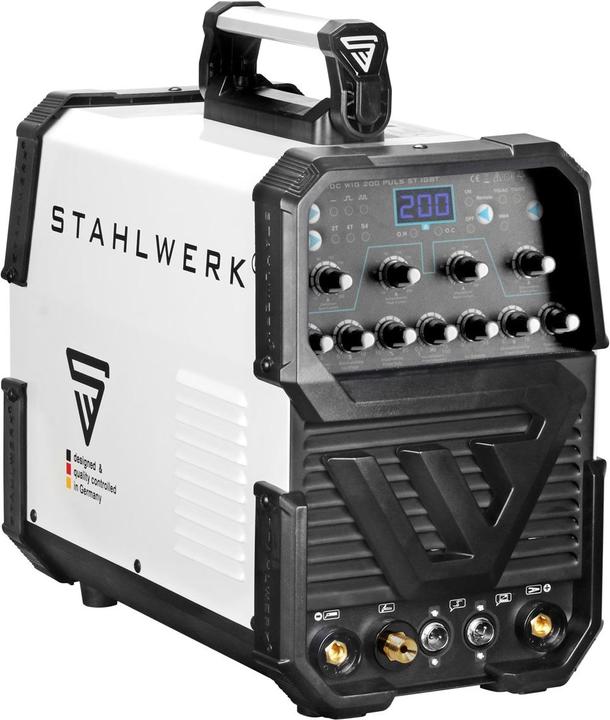

Stahlwerk AC/DC TIG 200 Pulse ST IGBT / 200 A welding machine

AC/DC TIG welding - alternating current (AC) and direct current (DC). This device allows for welding of almost all metals, including steel, stainless steel, aluminum, copper, and many more. It is a 2 in 1 combination device that supports TIG and MMA welding up to 200A.

Technical data:

• Output current TIG / MMA: 10-200 A
• Protection class: IP21S
• Insulation class: F
• Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
• Mains frequency: 50/60 Hz
• Maximum mains current (I1max) (TIG / MMA): 27.7 A / 39.7 A
• Maximum effective mains current (I1eff) (TIG / MMA): 14.5 A / 13.5 A
• Weight: 12.9 kg
• Dimensions L x W x H (mm): 455 x 220 x 370
• Mains connection: Schuko type CEE 7/7
• Standards: IEC 60974-1; EN 60974-10 (Class A)

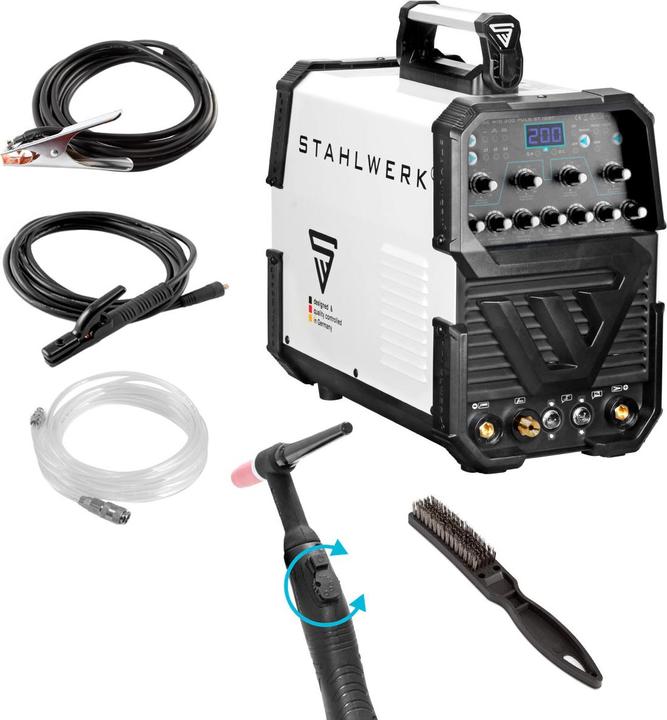

Scope of delivery:

• 1 x STAHLWERK AC/DC TIG 200 pulse ST IGBT
• 1 x Professional TIG welding torch WP-26FR / hose package 3 metres with adjustment wheel for remote control of the welding current on the handle, ball joint, and flexible torch head
• 1 x TIG accessory set (8 pieces):
• 3 x gas nozzles sizes: 5, 6, 7
• 1 x clamping sleeve size: 1.6
• 1 x clamping sleeve housing size: 1.6
• 2 x burner caps - one short and one long
• 1 x universal tungsten electrode
• 1 x earth cable 3 metres
• 1 x electrode holder 3 metres
• 1 x wire brush
• 1 x gas connection hose with quick coupling 5 metres.
