Technical data
Output current (TIG / MMA / CUT): 10-200 A (TIG/MMA) / 20-50 A (CUT)
Protection class: IP21S
Insulation class: F
Mains voltage: 230 V AC (+-15%) / 1 ~ (single-phase)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) (TIG / MMA / CUT): 27.7 A / 39.7 A / 34.4 A
Maximum effective mains current (I1eff) (TIG / MMA / CUT): 14.5 A / 13.5 A / 15.2 A
Compressor requirements: 4 bar / min. 100 l/min
Weight: 13.2 kg

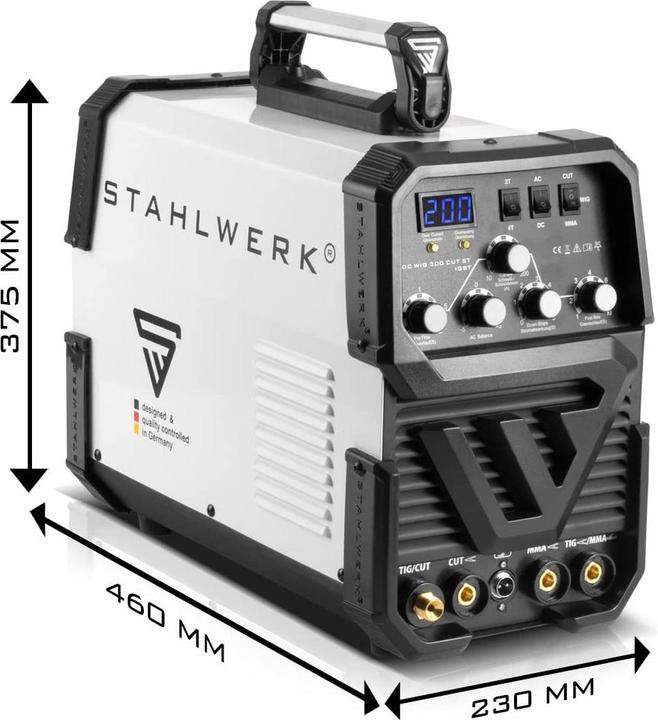

Dimensions L x W x H (mm): 455 x 220 x 370

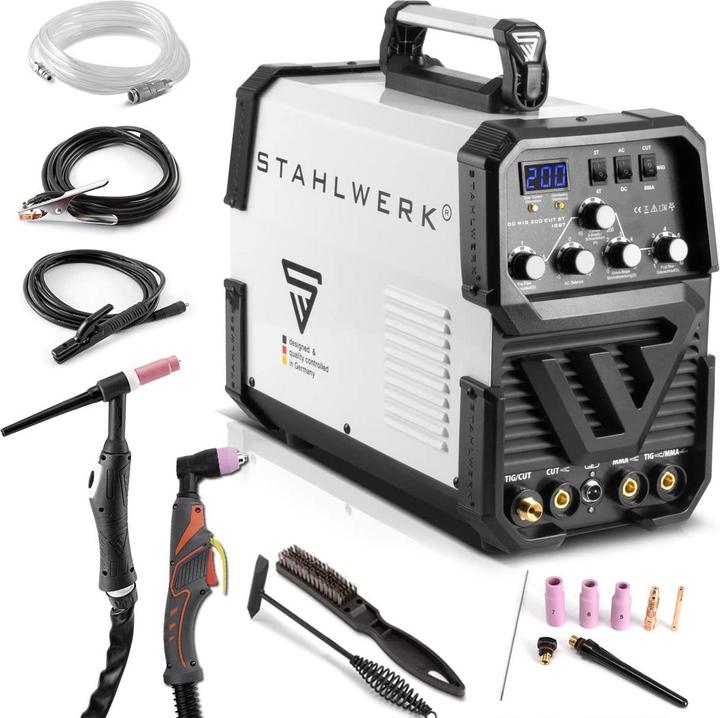

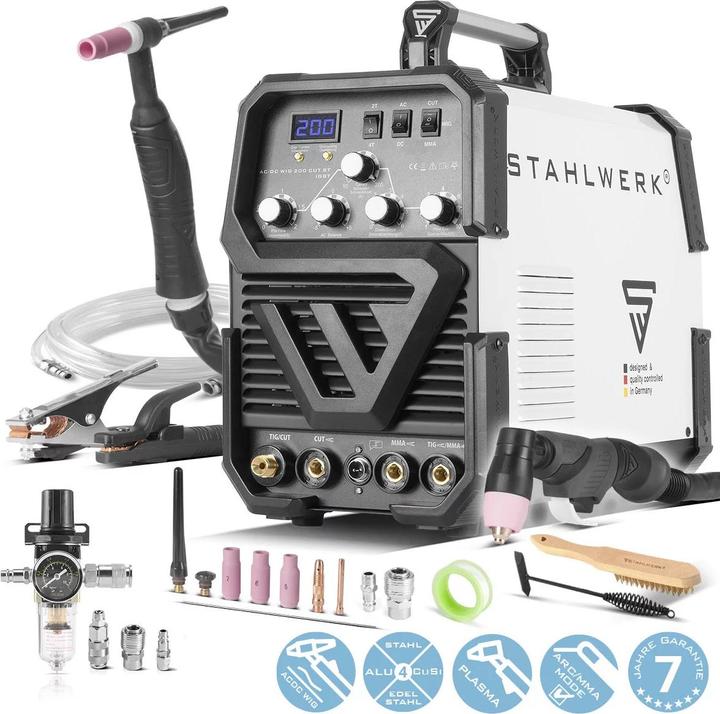

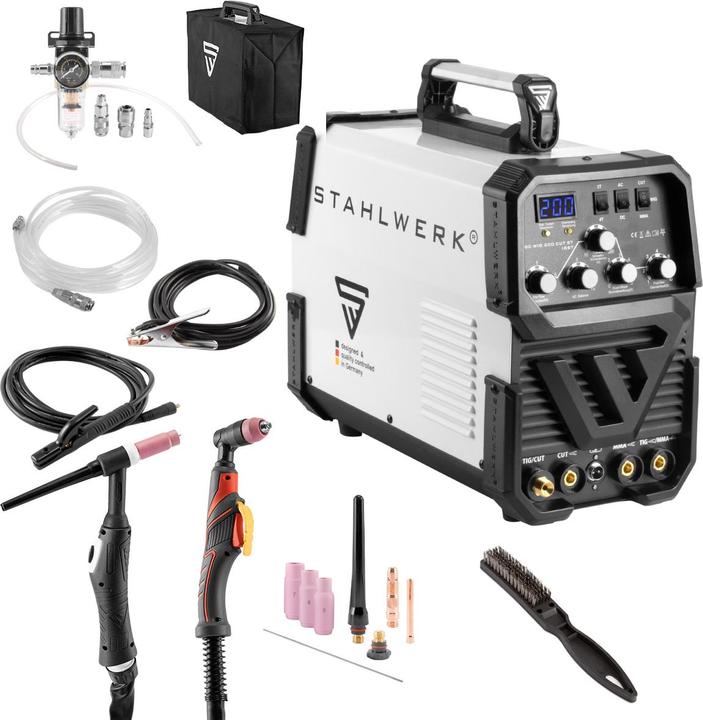

Scope of delivery
1 x Steelworks AC/DC TIG 200 PLASMA ST IGBT welding machine
1 x WP-26F professional TIG welding torch / 3 metre* hose package with flexible torch head and kink protection on the gas connection
1 x TIG TIG accessory set 8 pieces:
3 x gas nozzles sizes: 5, 6, 7
1 x clamping sleeve size 1.6
1 x clamping sleeve housing size 1.6
2 x burner caps - one short and one long
1 x universal tungsten electrode
* Pre-assembled accessories from the illustration of the welding torch are included in the 8-piece set
1 x professional plasma hose package AG-60/SG-55 3 metres.
1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):
1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap
1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the device to the water separator, incl. 6-piece connection set
1 x 3 metre earth cable
1 x electrode holder 3 metres
1 x wire brush
1 x Gas connection hose with quick-release coupling 5 metres
1 x protective cover
Voltage | 230 V |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 50 A |
Item number | 22602519 |
Manufacturer | Stahlwerk |
Category | Welding machines |
Manufacturer no. | 1003-001 |
Release date | 6.10.2022 |
Sales rank in Category Welding machines | 33 of 458 |
Colour | White |
Exact colour description | White |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 50 A |
Power source | Electrical connection |
Voltage | 230 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.46 m |
Width | 0.22 m |
Height | 0.37 m |
Weight | 13.20 kg |
Length | 57 cm |
Width | 43 cm |
Height | 55 cm |
Weight | 27.84 kg |
