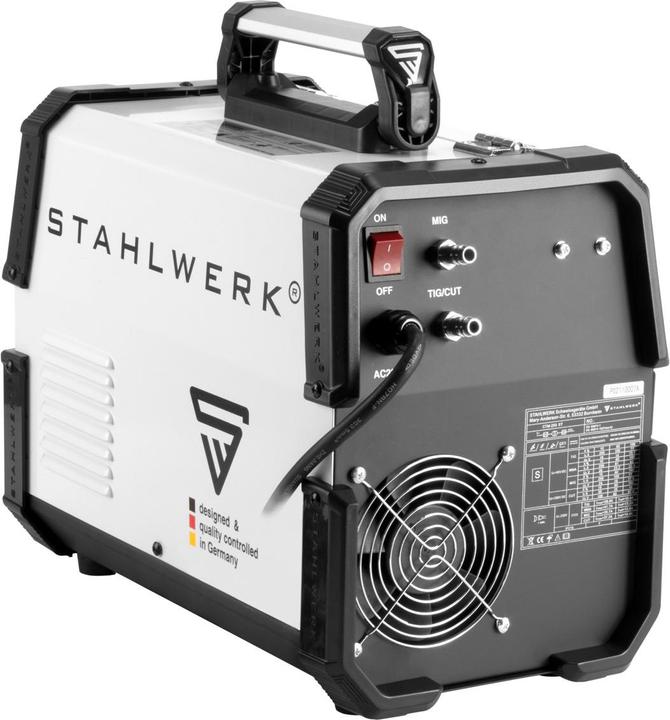

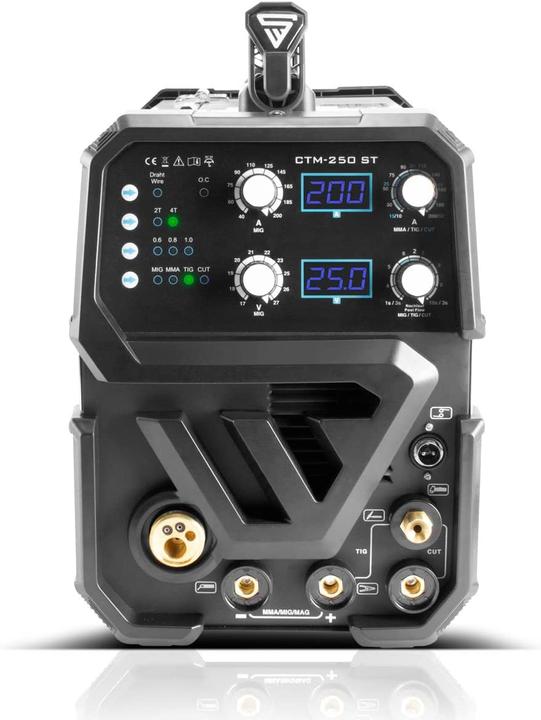

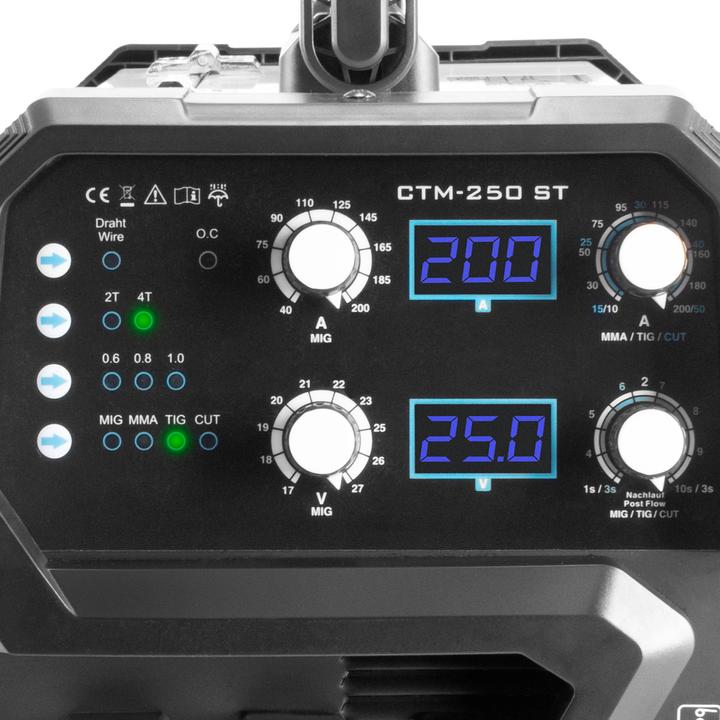

Stahlwerk 4 in 1 combination welding machine CTM-250 ST with 200 A and 50 A plasma function
free shipping
Technical data
Output current (TIG/MMA/MIG/CUT): TIG,MMA: 10-200A / MIG: 40-200A / CUT: 15-50A
Protection class: IP21S
Mains voltage: 1 x 230V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (l1max) (TIG/MMA/MIG/CUT): 26.8A / 41.7 A / 35.7 A/ 37.2A
Maximum effective mains current (l1err) (TIG/ MMA/MIG/ CUT): 10.4A I 13.2A I 13.8A I 14.4A
Air pressure CUT: max. 4Bar
Air flow CUT: min. 100L/min
Dimensions Lx W x H (mm): 440 X 255 X360

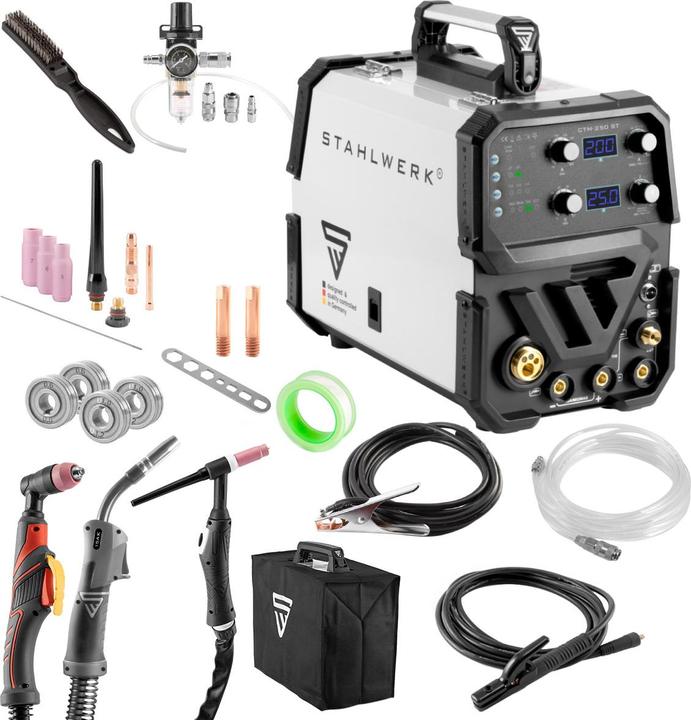

Scope of delivery
1 x The CTM-250 ST steelworks combi welding machine
1 x Professional TIG welding torch WP-26F / hose package 3 metres
1 x TIG TIG accessory set 8 pieces
1 x Professional plasma hose package AG-60/SG-55 3 metres
1 x Plasma accessory set 3-piece (this is already pre-assembled on the plasma torch)
1 x water separator with pressure gauge and snap-on quick couplings
1 x connecting hose with snap-on quick-release couplings from the device to the water separator, incl. 6-piece connection set
1 x AK-15 professional MIG welding torch / 3 metre hose package with Euro central connection
1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch): 1 x gas nozzle, 1 x contact tip 0.8 mm, 1 x gas nozzle holder
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire brush
1 x gas connection hose with quick coupling 5 metres
1 x contact tip M6 x 28 - ø 0.8 mm
1 x contact tip M6 x 28 - ø 1.0 mm
2 x wire guide rollers 0.8 mm & 1.0 mm with V profile (already installed in the device)
2 x wire guide roller 0.6 mm & 0.8 mm with V profile
1 x assembly spanner
1 x Teflon tape

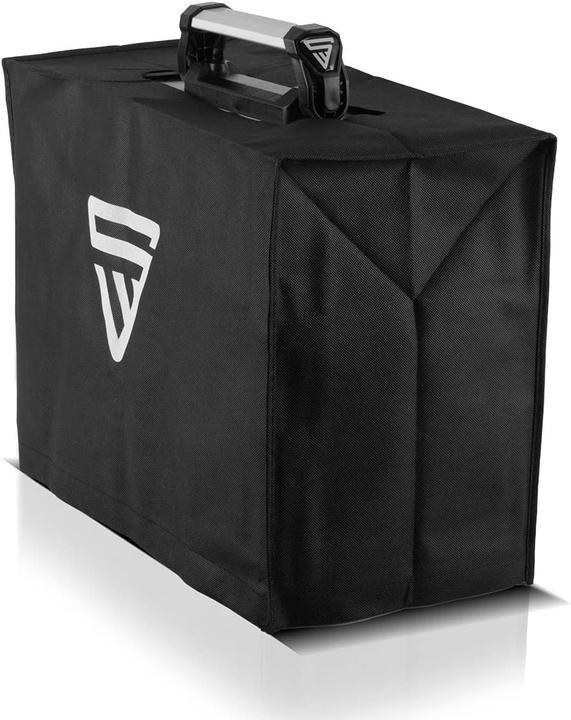

1 x protective cover
Voltage | 230 V |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 50 A |
Item number | 23976782 |
Manufacturer | Stahlwerk |
Category | Welding machines |
Manufacturer no. | 1230 |
Release date | 29.1.2023 |
Sales rank in Category Welding machines | 19 of 448 |
Colour | White |
Exact colour description | White |
Welding device Type | Inverter welder |
Max. Welding current | 200 A |
Min. welding current | 50 A |
Power source | Electrical connection |
Voltage | 230 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.05 m |
Width | 0.02 m |
Weight | 14 kg |
Length | 65 cm |
Width | 42 cm |
Height | 54 cm |
Weight | 27.29 kg |
