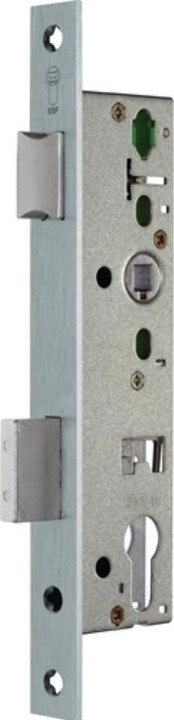

SSF Rohrrahmen-Einsteckschloss

Mortise lock
was CHF18.90
1Ratings
BrandMore from SSF
Delivered tomorrow
Only 1 piece in stock
Free shipping starting at 50.–

Product details

The Series 01 tubular frame mortise lock from SSF is a reliable and robust solution for door security. Manufactured from high quality steel, this lock offers a closed construction that ensures both durability and resistance. It is designed for use in single-leaf doors and can be installed for both DIN-left and DIN-right, allowing for flexible application. The continuous fitting hole above the lock follower and the chip protection sleeves contribute to easy installation and protection of the lock mechanism. With a sturdy bolt that protrudes 15 mm and a pre-set receptacle for a profile cylinder, this lock offers a high level of security and user-friendliness. The nickel-plated latch and deadbolt ensure smooth functionality and an attractive appearance.

Key specifications

Material
Steel
applicability
Entrance door

General information

Item number
14551592
Manufacturer
SSF
Category
Lock cylinders
Manufacturer No.
100208
Release date
4.1.2021
Sales rank in Category Lock cylinders
173 of 9410

Colour

Colour
Silver
Exact colour description
Chromated

Material

Material group
Metal
Material
Steel
Surface finish
Chromated

Locking Cylinder Features

Cylinder + Key Type
Door lock
applicability
Entrance door
Lock cylinder type
Mortise lock
Lock cylinder version
Profile cylinder
Forend form
Square
Distance
92 mm
Box thickness
16.50 mm
Nut diameter
8 mm
Closure
3
Suitable door type
single-winged
Panic function
Without
Escape direction

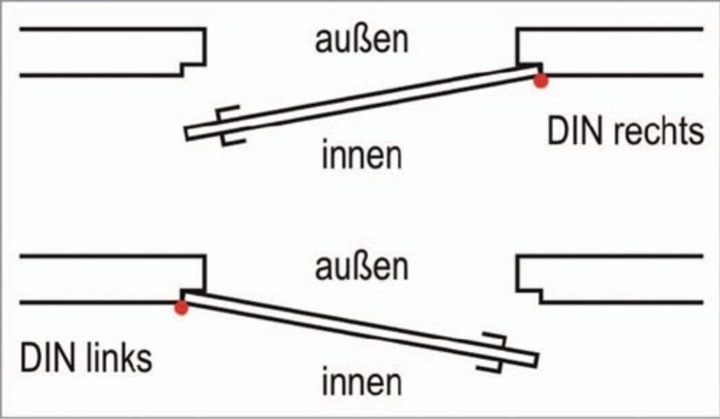

DIN left / right

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
1.21 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1x
Scope of delivery
35, 8 mm DIN left, 92, Right, Tubular frame mortise lock PZW 24

Product dimensions

Width
85 mm
Height
30 mm
Weight
0.52 kg

Package dimensions

Length
26.50 cm
Width
8.80 cm
Height
3.20 cm
Weight
526 g
