Simonswerk Object tapes TECTUS TE 340 3D FR
More than 10 pieces in stock at third-party supplier
Product details

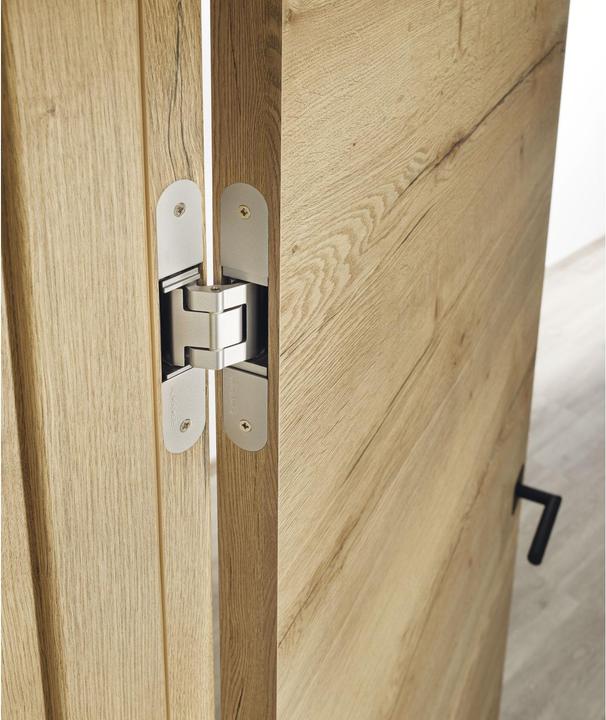

The TECTUS TE 340 3D FR hinge by Simonswerk is specifically designed for use on fire doors. These door fittings are characterized by their completely concealed installation, ensuring an aesthetic and clean appearance. They are suitable for non-rebated doors on wooden or steel frames and offer maintenance-free sliding bearing technology that guarantees smooth functionality. With an opening angle of up to 180°, they are suitable for both left- and right-hand applications. The identical milling for the frame and leaf components simplifies installation and ensures consistent use. Additionally, the hinges are 3-dimensionally adjustable, allowing for precise adjustments in height, side, and pressure. These features make the TECTUS TE 340 3D FR an ideal choice for modern interior doors that need to meet both functional and safety requirements.
- Completely concealed installation for aesthetic appearance
- Maintenance-free sliding bearing technology for smooth operation
- Opening angle of up to 180° for flexible use
- 3-dimensional adjustability in height, side, and pressure
- Suitable for wooden and steel frames, ideal for fire doors.
Material group | Metal |
Material | Steel |
Door hinge type | Object tape |
Door hinge | Left, Right |
Load capacity | 80 kg |
Opening angle | 180° |
Item number | 10863392 |
Manufacturer | Simonswerk |
Category | Door hinge |
Manufacturer no. | 5 400621 0 12402 |
Release date | 27.3.2019 |
Colour | Silver |
Exact colour description | Silver-coloured coating |
Material group | Metal |
Material | Steel |
surface finish | Coated |
Door hinge type | Object tape |
Scope of application | Door |
Suitable for | Steel, Wood |
Door hinge | Left, Right |
Load capacity | 80 kg |
Opening angle | 180° |
Roll diameter | 24 mm |
Frame bolt | 5 mm |
Country of origin | Germany |
CO₂ emissions | 22.6 kg |
Climate contribution | CHF 0.54 |
Length | 160 mm |
Width | 28 mm |
Height | 160 mm |
Length | 24 cm |
Width | 19.50 cm |
Height | 13 cm |
Weight | 827 g |
