Siemens Cable routing distributor

Currently out of stock
Free shipping starting at 50.–

Product details

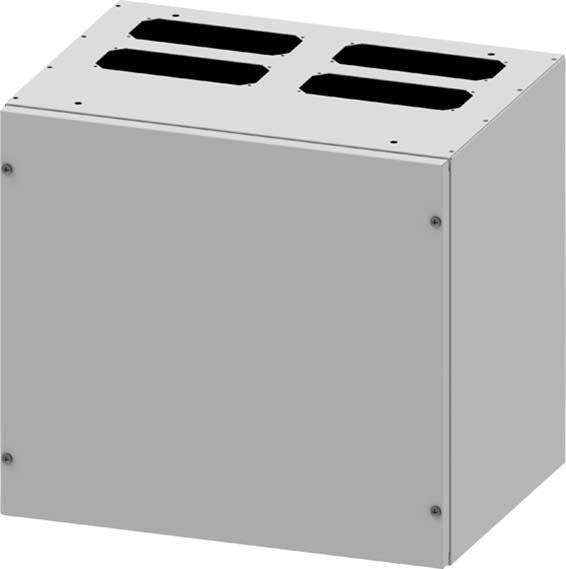

Siemens Digital Industrial Cable Distribution Box 8GK1383-1KK25

Manufacturer: Siemens Digital Industrial
Description: Cable distribution box IP55, H500 x W550 x D400
Type: 8GK1383-1KK25
Mounting type: Surface-mounted
Cover type: Optional
Cover design: Without
Door type: Single
Rated current (In): 1250 A
Height: 500 mm
Width: 550 mm
Depth: 400 mm
Installation depth: 400 mm
Material thickness of door/cover: 0.75 mm
Color: Gray
RAL number: 7035
Number of openings for flange plates: 4
Mounting option: Yes
Housing material: Steel
Surface protection: Powder-coated
With mounting plate: No
Suitable for outdoor use: No
Protection class (IP): IP55
Protection class (NEMA): Other
Protection class: I
Impact resistance: IK09
Function maintenance: None

Cable distribution box SK1, IP55 H=500, W=550, D=400 with screwed front panel without longitudinal beams. The ALPHA installation distribution boards are a complete system of wall and floor-mounted distribution boards for the installation of devices up to 1250 A. The ALPHA distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive designs up to 1250 A. Due to the platform structure and modular design, device-specific installation kits can be integrated into various distribution board variants. This facilitates planning and installation. The configuration is done individually and project-specific. The configuration software SIMARIS configuration supports from planning to documentation of the power distribution and installation distribution boards. ALPHA - the system concept matters.

Key specifications

mounting style
Finery
Length
40 cm
Width
55 cm
Height
50 cm

General information

Item number
36806704
Manufacturer
Siemens
Category
Electrical enclosures
Manufacturer no.
8GK13831KK25
Release date
28.6.2023

Colour

Colour
Grey
Exact colour description
RAL7035

Material

Material group
Metal
Material
Steel

Control cabinet properties

mounting style
Finery
Protection type (IP code)
IP55

Origin

Country of origin
Germany

Product dimensions

Length
40 cm
Width
55 cm
Height
50 cm
