Siemens Cable routing distributor

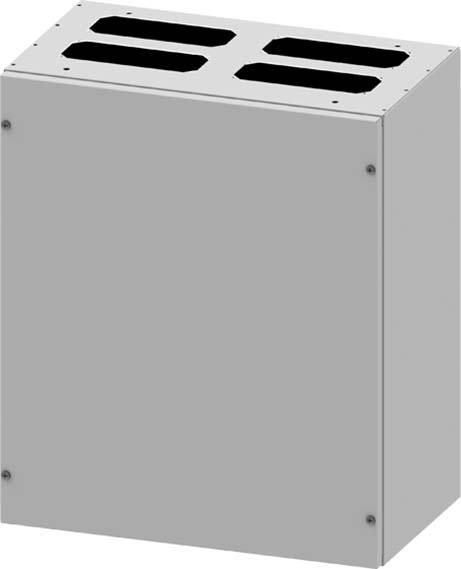

Siemens Digital Industry Cable Distribution Board 8GK1383-2KK24

Manufacturer: Siemens Digital Industry
Description: Cable distribution board IP55, H650xB550xT320
Type: 8GK1383-2KK24
Mounting type: Surface-mounted
Cover type: Optional
Cover design: Closed
Door type: Single
Rated current (In): 630 A
Height: 650 mm
Width: 550 mm
Depth: 320 mm
Installation depth: 320 mm
Material thickness of door/cover: 0.75 mm
Color: Grey
RAL number: 7035
Number of openings for flange plates: 4
Mounting option: Yes
Housing material: Steel
Surface protection: Powder-coated
With mounting plate: No
Suitable for outdoor use: No
Protection class (IP): IP55
Protection class (NEMA): Other
Protection class: I
Impact resistance: IK09
Function maintenance: None

Cable distribution board SK1, IP55 H=650, W=550, D=320 with screwed front panel without longitudinal beams. The ALPHA installation distribution boards are a complete system of wall and floor-mounted distribution boards for the installation of devices up to 1250 A. The ALPHA distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive designs up to 1250 A. Due to the platform structure and modular design, device-specific installation kits can be integrated into various distribution board variants. This simplifies planning and installation. The configuration is done individually and project-specifically. The SIMARIS configuration software supports from planning to documentation of energy distribution boards and installation distribution boards. ALPHA - the system concept matters.
EAN: 4001869565972.
