Sick WTB26I-24161120A00

2 m
Ratings
BrandMore from Sick
Delivered between Fri, 14.8. and Tue, 18.8.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Sick photoelectric proximity switch WTB26I-24161120A00

Manufacturer: Sick
Designation: Photoelectric proximity switch with background suppression
Type: WTB26I-24161120A00
Max. switching distance: 2000 mm
Switching distance: 2000 mm
Design of interface for safety-related communication: Other
Design of electrical connection: Plug connector M12
Design of switching output: Other
Equipment protection class: Protection class 3
Enclosure type: Cuboid

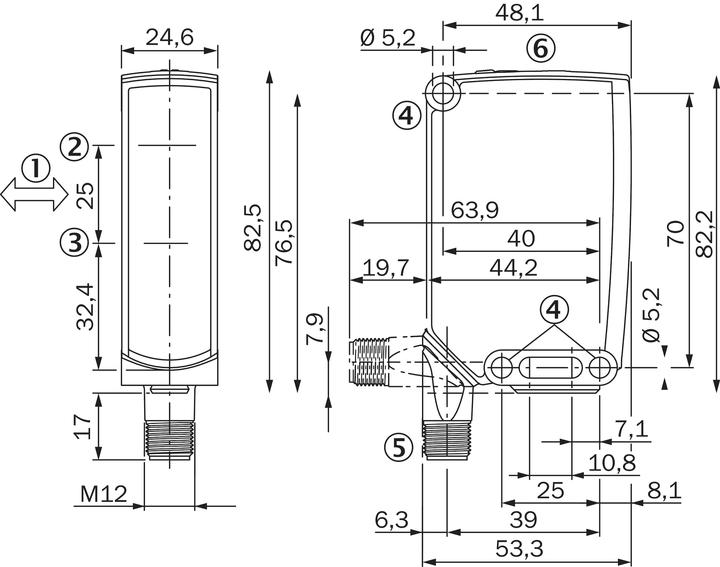

Width of sensor: 24.6 mm
Height of sensor: 82.5 mm
Length of sensor: 53.3 mm
Scanning function: Light/dark switching
Material of optical surface: Plastic
Material of enclosure: Plastic
Max. output current at safe output: 100 mA
Ambient temperature: 60 °C
Response time: 0.5 ms
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Voltage type: DC
Wavelength of sensor: 850 nm
Light type: Infrared light
Protection class (IP): IP66

Sick photoelectric proximity switches WTB26I-24161120A00: further details
Compact photoelectric proximity switches, W26, WTB26I-24161120A00
Device type: Photoelectric proximity switches and photoelectric sensors

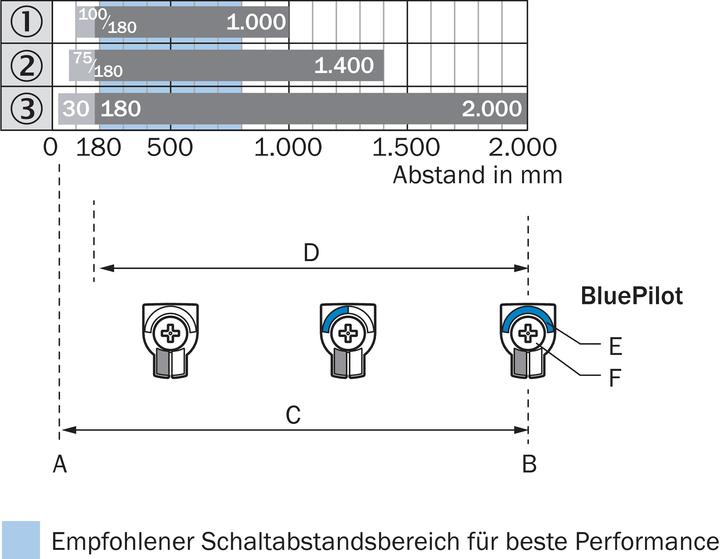

Switching distance min. / max.: 30 mm / 2000 mm
Sensor principle: Diffuse reflection light scanner

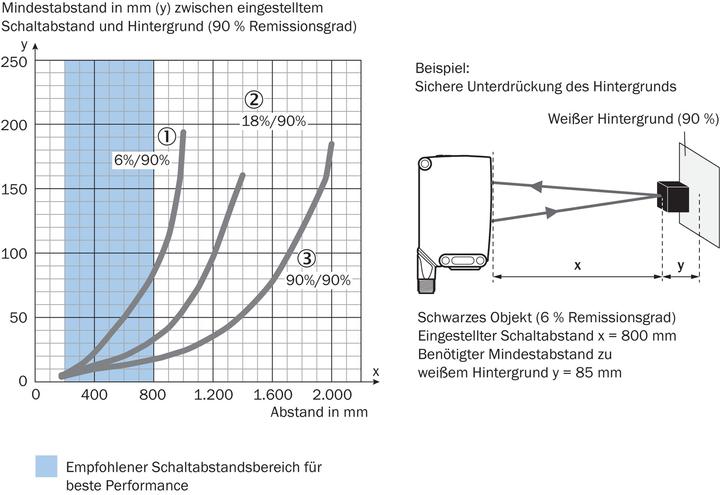

Detection principle: Background suppression
Switching output: Push-pull: PNP/NPN

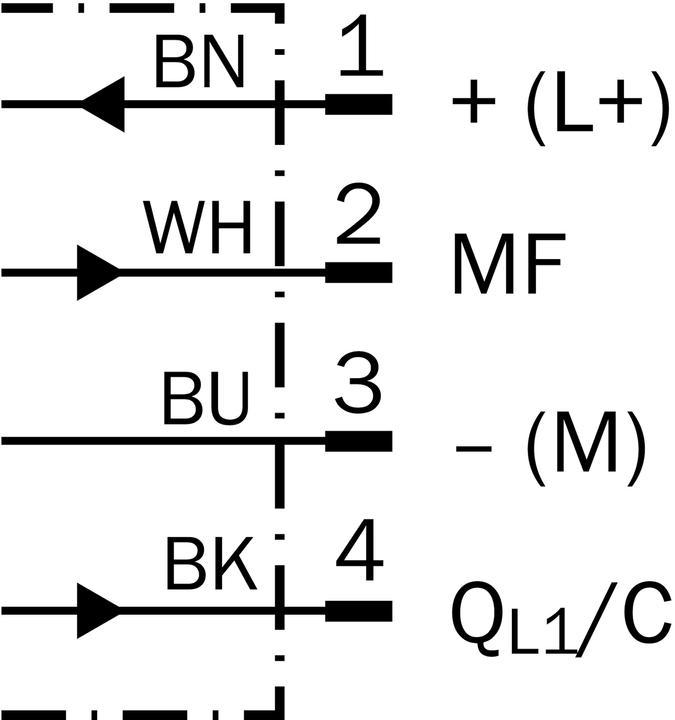

Connection type: M12 plug, 4-pin
Light emitter: LED
Light type: Infrared light
Housing material: VISTAL®
Setting: Teach-in button, cable, potentiometer, push-turn element
Communication interface: IO-Link V1.1
Smart Sensor: Enhanced sensing (basic logic), efficient communication, smart task
EAN: 4047084419270.

Key specifications

type of sensor
Optical, PIR
Range
2 m

General information

Item number
31825114
Manufacturer
Sick
Category
Motion sensors
Manufacturer No.
1218667
Release date
12.10.2022

Material

Material group
Plastic
Material
Plastic, VISTAL®

Motion sensor properties

type of sensor
Optical, PIR
Range
2 m
Protection type (IP code)
IP66, IP67, IP69

Power supply

Power supply
Electrical connection
Output voltage
10 - 30 V

Smart home features

Smart home
Not compatible
Requires Smart Home Hub
No
Transmission type
Cable
Control type
Manual

Origin

Country of origin
Germany

Sustainability

Sustainability label
EU Ecolabel

Voluntary climate contribution

CO₂ emissions
14.77 kg
Climate contribution
CHF 0.36

Scope of delivery

Items per sales unit
1x
Scope of delivery
1

Product dimensions

Length
5.33 cm
Width
2.46 cm
Height
8.25 cm
Weight
80 g
