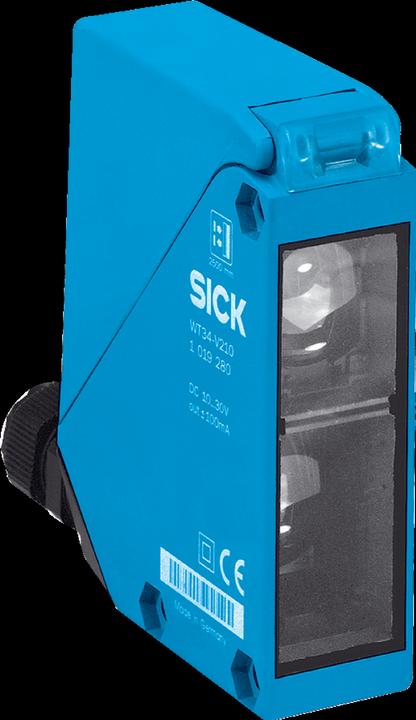

Sick WT34-B410 WT34-B410 REFLECTIVE-LIGHTTT. (1019229.0)

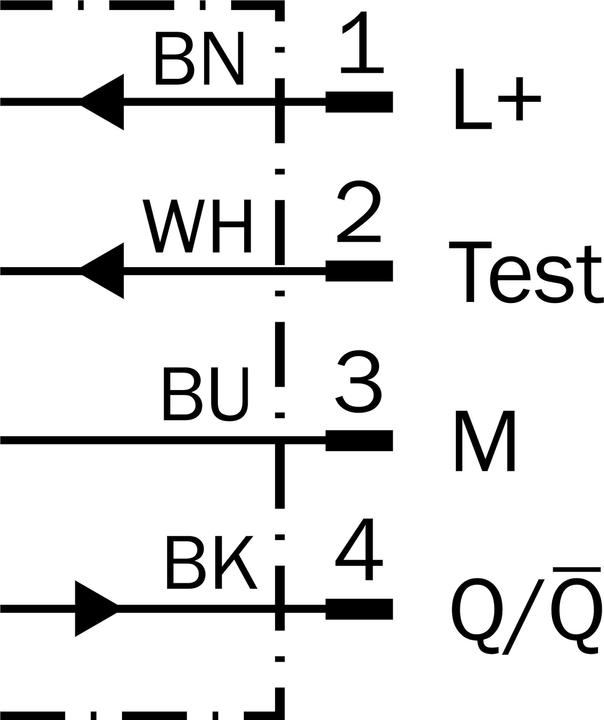

The WT34-B410 reflection light sensor from Sick is a highly advanced optical sensor designed for precise motion and object detection. With a compact design and a detection range of up to 2.5 meters, this light sensor is ideal for various applications in automation technology. The sensor operates on the principle of background suppression, meaning it reliably responds to objects within its detection range. The WT34-B410 offers both NPN and PNP outputs and can be configured for both light-on and dark-on operation, allowing for flexible integration into existing systems. Easy adjustment is achieved via a potentiometer, and connection is made through a 4-pin M12 connector. With a high protection rating of IP67, the sensor is also protected against dust and water, making it well-suited for use in demanding environments.

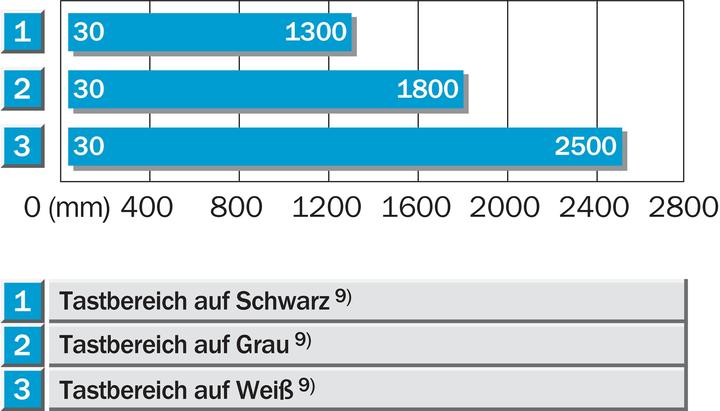

• Detection range of up to 2.5 m
• Operating temperature range from -40 °C to 60 °C
• Fast response time of 500 µs
• Protection rating IP67 for high environmental resistance

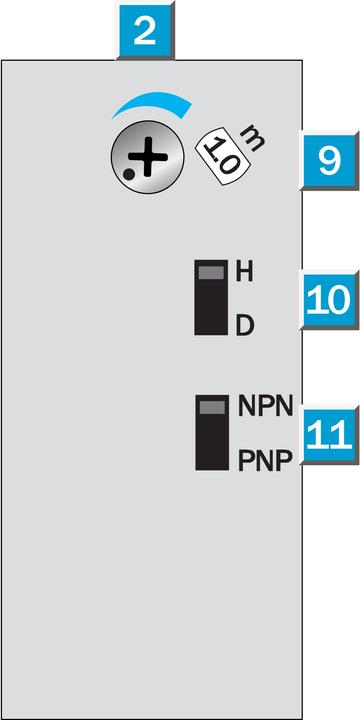

• Adjustable sensitivity via potentiometer.
