Sick WL4SLG-3P2432V

Sick miniature photoelectric sensor WL4SLG-3P2432V
Manufacturer: Sick
Designation: Miniature photoelectric sensor
Type: WL4SLG-3P2432V
Rated switching distance: 2000 mm
Max. switching distance: 4500 mm
Max. output current: 100 mA
Adjustment method: Teach-In
Number of contact outputs with signaling function: 1
Version of the interface for safety-related communication: Other
Version of the electrical connection: M12 plug connector
Version of the switching output: PNP
Version of the switching function: Antivalent
Equipment protection class: Protection class 3
Explosion protection category for gas: None
Explosion protection category for dust: None
Enclosure type: Cuboid

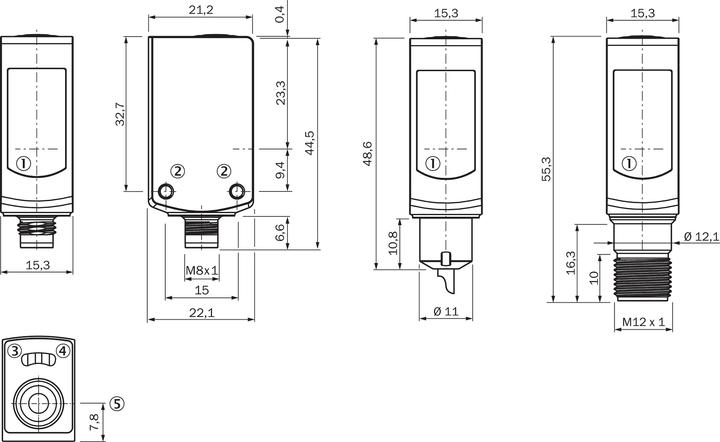

Width of sensor: 15.3 mm
Height of sensor: 55.4 mm
Length of sensor: 22.2 mm
Sensing function: Light/dark switching
Material of optical surface: Plastic
Material of enclosure: Metal
Max. output current at safe output: 100 mA
Ambient temperature: -10 °C
Response time: 0.5 ms
Range of protective field: 0.5 m
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Rated control supply voltage Us at DC: 10...30 V
Voltage type: DC
Laser protection class: Class 1
Wavelength of the sensor: 650 nm
Light type: Red light polarized
Suitable for safety functions: Yes
Protection class (IP): IP66

Further details:
Miniature photoelectric sensors, W4SLG-3V, WL4SLG-3P2432V, Max. switching distance: 0 m ... 4.5 m, Sensor principle: Retro-reflective photoelectric sensor, Detection principle: Autocollimation, Switching output: PNP, Switching type: Light/dark switching, Connection type: M12 plug, 4-pin, Light emitter: Laser, Setting: Teach-in button, Laser class: 1.
