Sick WL34-V230

22 m
Ratings
BrandMore from Sick
Currently out of stock
Free shipping starting at 50.–

Product details

The WL34-V230 from Sick is a highly advanced motion sensor based on the principle of a reflective light barrier. With a dual lens system, this sensor enables precise detection of objects at a range of up to 15 meters. The WL34-V230 is designed for use in various applications and offers both NPN and PNP switching outputs, allowing for flexible integration into existing systems. The switching type can be configured for either light-on or dark-on operation, providing additional customization options. The sensor is compact and robust, with an IP67 protection rating that shields it from dust and water. Installation is made easy through a terminal connection with an M16 screw fitting. The light emitter operates with a long-lasting LED, and settings can be conveniently adjusted via a potentiometer.

  • Reflective light barrier with dual lens system for precise object detection
  • Flexible switching outputs: NPN and PNP

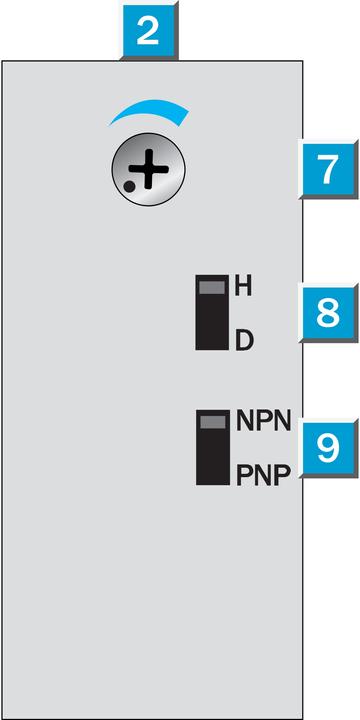

  • Configurable switching types: light-on and dark-on
  • Robust design with IP67 protection rating for use in demanding environments
  • Easy installation via terminal connection with M16 screw fitting.

Key specifications

Range
22 m
mounting style
Microphone Clip

General information

Item number
34052977
Manufacturer
Sick
Category
Motion sensors
Manufacturer No.
1019243
Release date
17.5.2023

Material

Material group
Plastic
Material
ABS, Plastic

Motion sensor properties

Range
22 m
Protection type (IP code)
IP67
mounting style
Microphone Clip

Power supply

Power supply

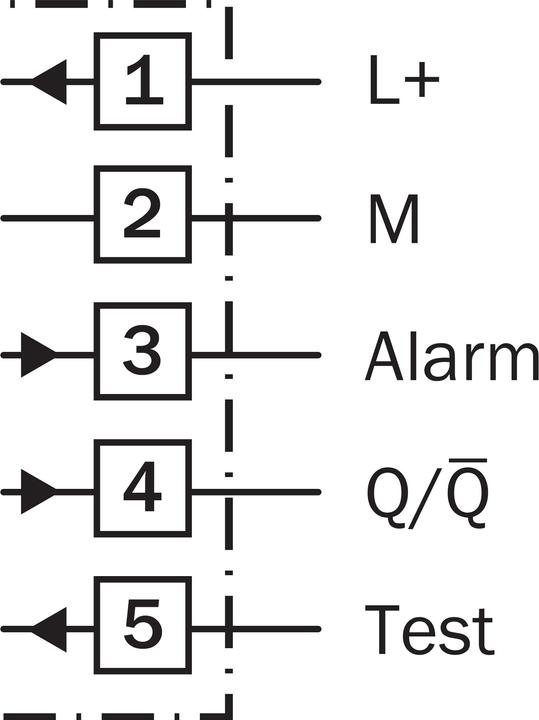

Electrical connection
Output voltage
10 V

Origin

Country of origin
Germany, Hungary

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
7 cm
Width
2.70 cm
Height
9.20 cm
Weight
140 g
