Product details

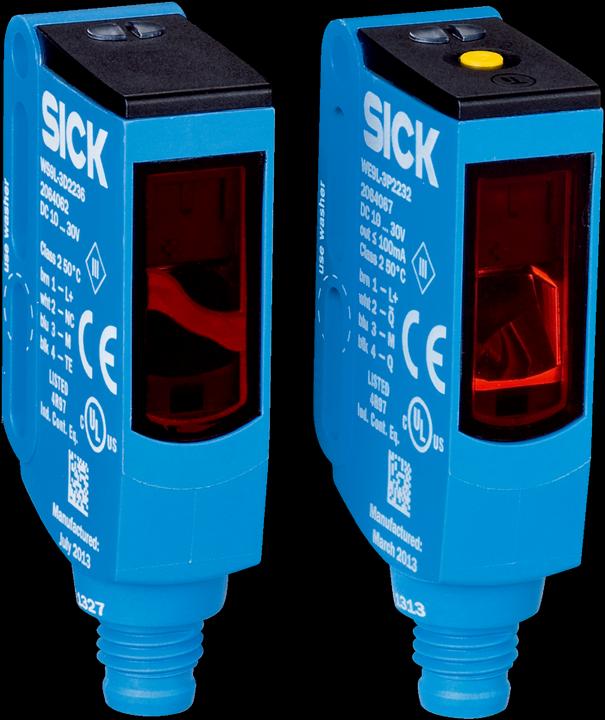

The WSE9L-3P2237 one-way light barrier from Sick is a highly advanced motion detector based on the principle of a one-way light barrier. It uses a laser as a light emitter to ensure precise and reliable motion detection over a maximum range of 60 meters. The light barrier is equipped with a PNP switching output and allows for both light-on and dark-on functions. Installation is done via a 4-pin M8 connector, making it easy to integrate into existing systems. The teach-in button enables simple and user-friendly sensor adjustments. With an IP69K protection rating, the light barrier is particularly robust and suitable for use in demanding environments. The housing is made of VISTAL®, a high-quality plastic that offers durability and resilience.

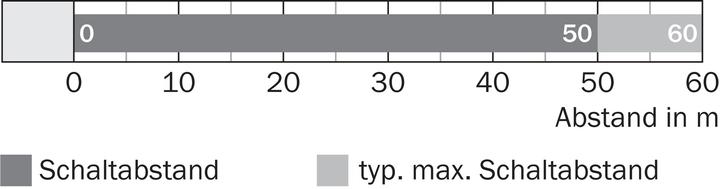

- Maximum range of 60 meters
- Laser light emitter for precise detection

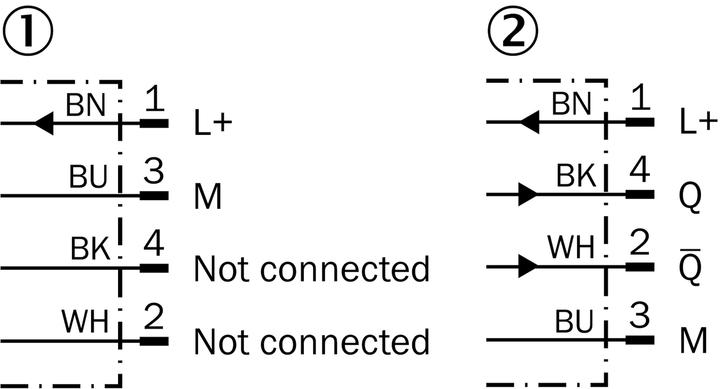

- Easy installation via 4-pin M8 connector

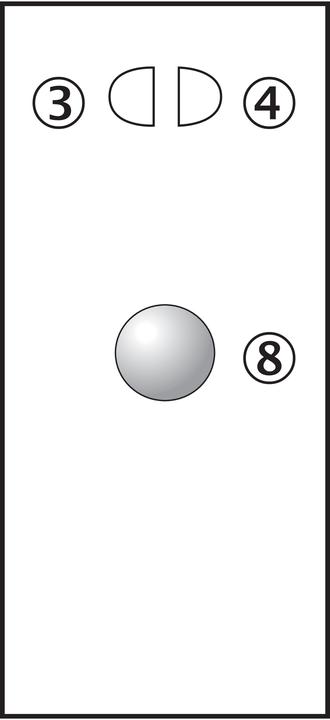

- Teach-in button for user-friendly settings
- IP69K protection rating for high robustness.
type of sensor | Laser |
Range | 60 m |
Item number | 36751553 |
Manufacturer | Sick |
Category | Motion sensors |
Manufacturer no. | 1058182 |
Release date | 28.6.2023 |
Material group | Plastic |
Material | Plastic, VISTAL® |
type of sensor | Laser |
Range | 60 m |
Protection type (IP code) | IP69K |
Output voltage | 10 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 2.36 cm |
Width | 1.22 cm |
Height | 4.98 cm |
Weight | 13 g |
