Sick Through-beam photoelectric sensor

80 m
Ratings
BrandMore from Sick
Delivered between Sat, 16.8. and Tue, 9.9.

Product details

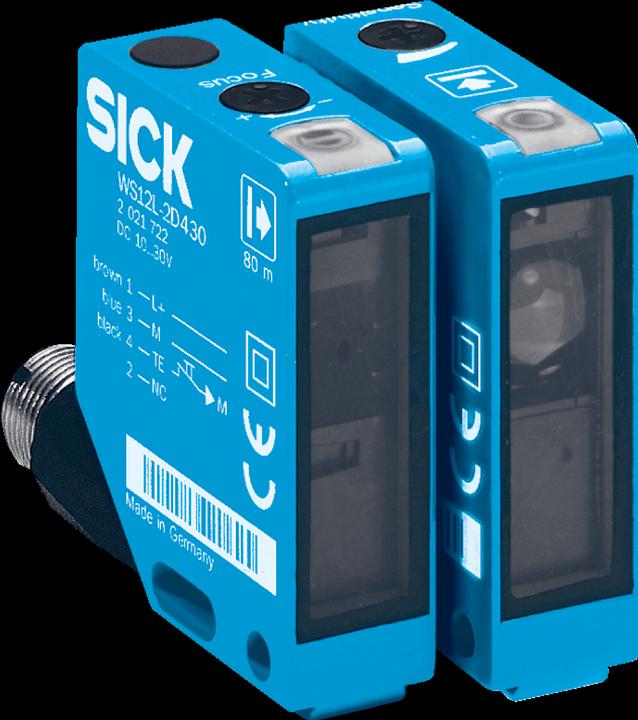

Sick One-Way Light Barrier WS/WE12L-2P430

Manufacturer: Sick
Description: One-Way Light Barrier
Type: WS/WE12L-2P430
With Timer Function: No
Rated Switching Distance: 80,000 mm
Max. Switching Distance: 80,000 mm
Max. Output Current: 100 mA
Interface Design for Safety-Related Communication: Other

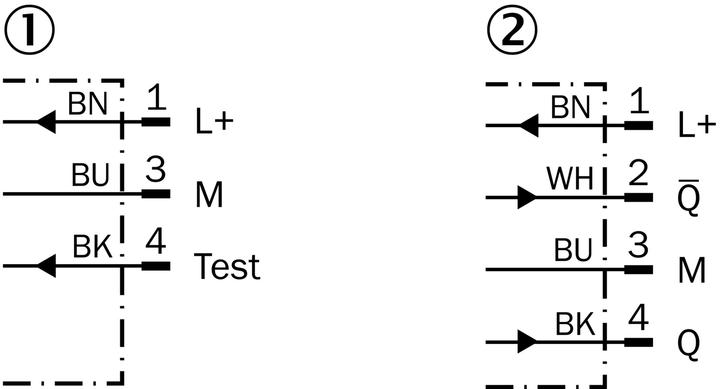

Electrical Connection Type: M12 Connector
Switch Output Type: PNP
Switch Function Type: Antivalent
Protection Class: Protection Class 3
Housing Design: Rectangular
Sensor Width: 15 mm
Sensor Height: 49 mm
Sensor Length: 41.5 mm
Material of Optical Surface: Plastic
Material of Housing: Metal
Max. Output Current at Safe Output: 100 mA
Ambient Temperature: 50 °C
Response Time: 0.2 ms
Switching Frequency: 2500 Hz
Rated Control Supply Voltage Us at AC 50 Hz: 10 V
Voltage Type: DC
Laser Protection Class: Class 2
Wavelength of Sensor: 650 nm
Light Type: Polarized Red Light
Protection Rating (IP): IP67

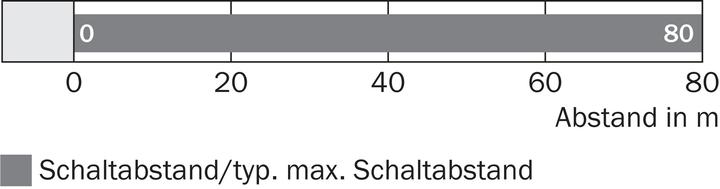

Additional Details: Small Light Barriers, W12-2 Laser, Max. Switching Distance: 0 m ... 80 m, Sensor Principle: One-Way Light Barrier, Switch Output: PNP, Connection Type: M12 Connector, 4-Pole, Light Emitter: Laser, Adjustment: Potentiometer, Laser Class: 2, Included in Delivery: 2 x Clamp Holder BEF-KH-W12, including screws, EAN: 4047084101236.

Key specifications

Range
80 m
Item number
24839254

General information

Manufacturer
Sick
Category
Motion sensors
Manufacturer no.
1018254
Release date
22.3.2023

Material

Material group
Metal
Material
Metal

Motion sensor properties

Range
80 m
Protection type (IP code)
IP67, IP69K

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
2 x
Scope of delivery
2 x clamp holder BEF-KH-W12, incl. screws

Product dimensions

Length
4.15 cm
Width
1.50 cm
Height
4.90 cm
Weight
260 g
