Sick Small photoelectric sensor

3 m
Ratings
BrandMore from Sick
Delivered between Sat, 22.8. and Fri, 4.9.
1 item ordered
free shipping

Product details

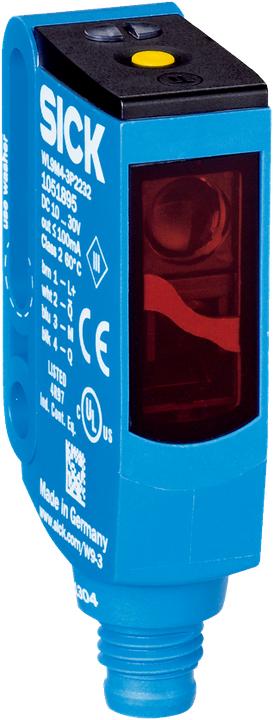

The WL9M4G-3P2232 small light barrier from Sick is a highly advanced motion detector based on the principle of reflective light barriers. It offers a maximum range of up to 5 meters and is ideal for applications where precise motion detection is required. Thanks to autocolimation and coaxial optics, the light barrier does not require a minimum distance to the reflector, simplifying installation. The light emitter uses a PinPoint LED, ensuring reliable and efficient performance. The switching outputs are configured as PNP, allowing for both light-on and dark-on functions. Adjustment is conveniently made via a teach-in button, making it easy to adapt to specific requirements. With an IP69K protection rating, the light barrier is also suitable for demanding environments.

  • Reflective light barrier with autocolimation
  • Maximum range of 5 meters
  • PNP switching output for flexible applications
  • Easy adjustment via teach-in button
  • IP69K protection rating for high environmental resistance.

Key specifications

type of sensor
Optical
Range
3 m

General information

Item number
43679776
Manufacturer
Sick
Category
Motion sensors
Manufacturer No.
1051899
Release date
7.3.2024

Material

Material group
Plastic
Material
Plastic, PMMA, VISTAL®

Motion sensor properties

type of sensor
Optical
Range
3 m
Protection type (IP code)
IP66, IP67, IP69K

Power supply

Power supply
USB power delivery

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
2.4 kg
Climate contribution
CHF 0.11

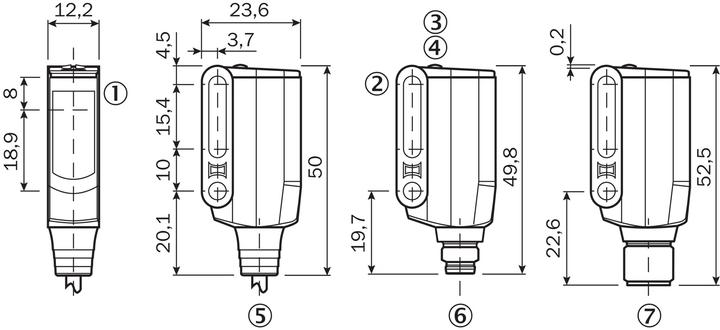

Product dimensions

Length
2.36 cm
Height
4.98 cm

30-day right of return
24 Months Warranty (Bring-in)
