Sick Retro-reflective photoelectric sensor

4 m
Ratings
BrandMore from Sick
Delivered between Tue, 6.10. and Tue, 20.10.
1 item ordered
free shipping

Show all

Product details

The reflection light barrier from Sick is a highly advanced motion detector based on the principle of autocolimation. This device is capable of detecting objects at a maximum switching distance of up to 4 meters. The light barrier uses visible red light emitted by an LED to ensure precise detections. Its robust construction made of zinc die-cast guarantees durability and reliability in various applications. The reflection light barrier is equipped with a PNP switching output, allowing for easy integration into existing systems via a 4-pin M12 connector. Adjustment is made through a potentiometer, enabling flexible adaptation to different requirements. With a detection angle of 1.5 degrees, this device offers targeted and precise motion detection.

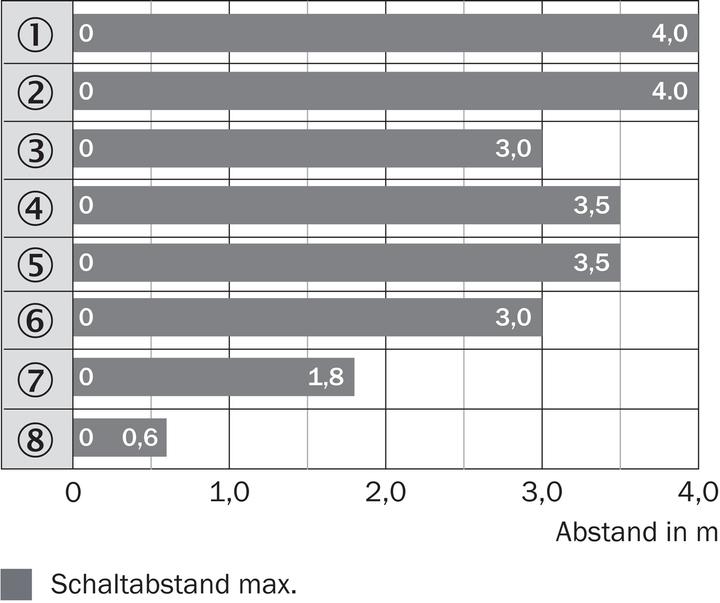

  • Maximum switching distance of 4 meters
  • Autocolimation for precise detection without a minimum distance to the reflector
  • Robust housing made of zinc die-cast

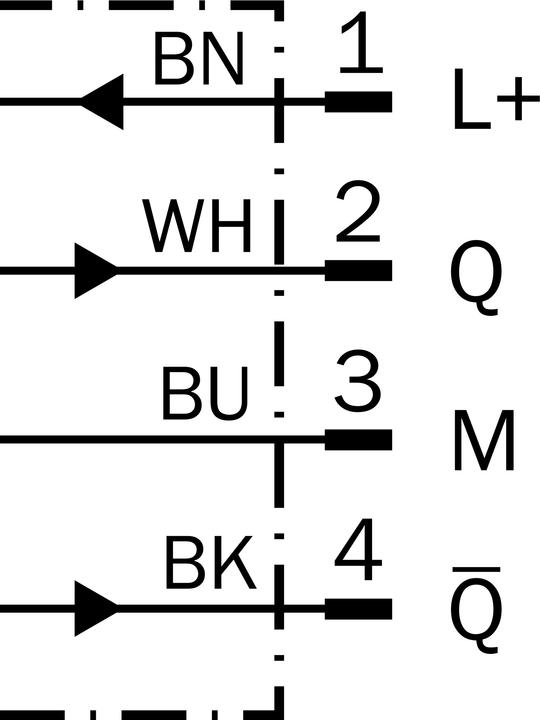

  • Easy integration via 4-pin M12 connector
  • Adjustable sensitivity through potentiometer.

Key specifications

type of sensor
Optical
Range
4 m

General information

Item number
36810929
Manufacturer
Sick
Category
Motion sensors
Manufacturer No.
1043879
Release date
28.6.2023

Material

Material group
Metal
Material
Die-cast zinc, Metal

Motion sensor properties

type of sensor
Optical
Range
4 m
Protection type (IP code)
IP66, IP67, IP69K

Power supply

Power supply
Electrical connection
Output voltage
10 - 30 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
22.15 kg
Climate contribution
CHF 0.52

Scope of delivery

Items per sales unit
1x
Scope of delivery
Retro-reflective photoelectric sensor

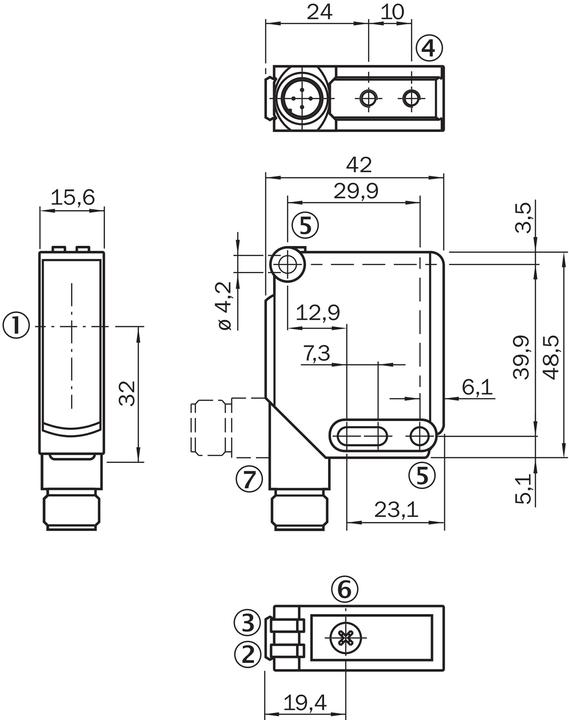

Product dimensions

Length
4.20 cm
Height
4.85 cm
Weight
120 g
