Sick Miniature light switch

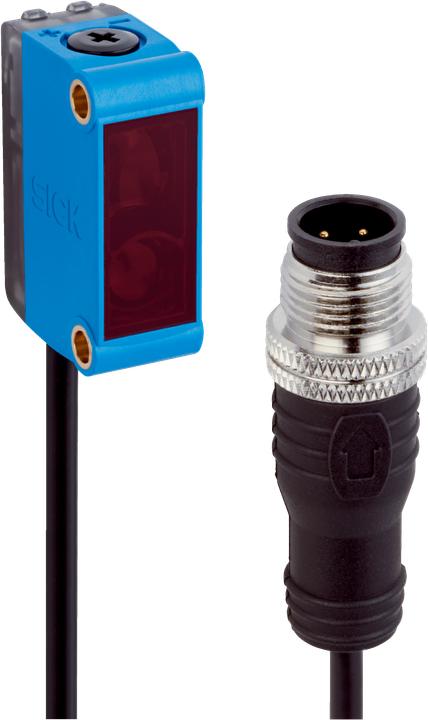

Sick miniature photoelectric switch GL6-P7211 Manufacturer :Sick Designation :Miniature photoelectric switch G6 Type :GL6-P7211 Rated switching distance :5000 mm Max. Switching distance :6000 mm Max. Max. output current :100 mA Setting method :Parameterisation Number of contact outputs with signalling function :1 Version of interface for safety-related communication :other Version of electrical connection :Cable with plug connector Version of switching output :PNP Equipment protection class :Protection class 3 Explosion protection category for gas :none Explosion protection category for dust :none Housing design :cuboid Width of sensor :12 mm Height of sensor :31.5 mm Length of sensor :21 mm Sensing function :light/dark switching Material of optical surface :plastic Material of housing :plastic Max. output current at safe output :100 mA Max. output current at safe output :100 mA Min. reflector distance :350 mm Ambient temperature :-25 °C Response time :0.625 ms Switching frequency :1000 Hz Rated control supply voltage Us at AC 50 Hz :10 V Rated control supply voltage Us at DC :10..30 V Voltage type :DC Laser protection class :other Wavelength of sensor :650 nm Illuminant :Red light polarised Suitable for safety functions :yes Protection class (IP) :IP67 Sick miniature light scri. GL6-P7211: more details Miniature photoelectric switches, G6, GL6-P7211, Device type: Diffuse sensors and photoelectric switches, Switching distance max.= 6 m, Sensor principle: Retro-reflective photoelectric sensor, Detection principle: Double lens, Switching output: PNP, Switching mode: Light/dark switching, Connection type: Cable with plug M12, 4-pin, Light emitter: PinPoint LED, Type of light: Visible red light, Housing material: ABS/PC, Setting: Potentiometer , EAN: 4047084309403.
