Sick Light barrier

Sick Light Barrier WLG4S-3F3132

Manufacturer: Sick
Description: Miniature Light Barrier
Type: WLG4S-3F3132
Rated Switching Distance: 3000 mm
Max. Switching Distance: 5000 mm
Max. Output Current: 100 mA
Setting Method: Teach-In
Number of Contact Outputs with Signaling Function: 1
Interface Design for Safety-Related Communication: Other
Electrical Connection Design: Cable with Connector
Switch Output Design: PNP
Protection Class: Protection Class 3
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None
Housing Design: Rectangular

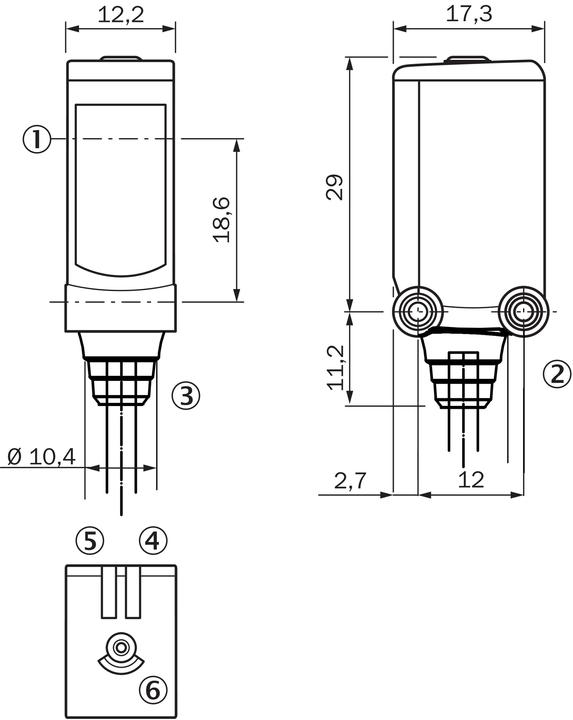

Width of the Sensor: 12.2 mm
Height of the Sensor: 41.8 mm
Length of the Sensor: 17.3 mm
Switching Function: Dark Switching
Material of the Optical Surface: Plastic
Material of the Housing: Plastic
Max. Output Current at Safe Output: 100 mA
Ambient Temperature: -40 °C
Response Time: 0.5 ms
Range of the Protective Field: 1.5 m
Switching Frequency: 1000 Hz
Rated Control Supply Voltage Us at AC 50 Hz: 10 V
Rated Control Supply Voltage Us at DC: 10..30 V
Voltage Type: DC
Laser Protection Class: Other
Wavelength of the Sensor: 650 nm
Light Type: Polarized Red Light
Protection Class (IP): IP67

Additional Details: Miniature Light Barriers, W4S-3 Glass, WLG4S-3F3132, Max. Switching Distance: 0.01 m ... 5 m, Sensor Principle: Reflective Light Barrier, Detection Principle: Autocollimation, Switching Output: PNP, Switching Type: Dark Switching, Connection Type: Cable with M8 Connector, 3-Pole, 100 mm, Light Emitter: PinPoint LED, Setting: Teach-In Button.
