Sick Light barrier

4.50 m
Ratings
BrandMore from Sick
Delivered between Fri, 3.7. and Fri, 17.7.
free shipping

Product details

Sick Light Barrier WSE4S-3F3430V

Manufacturer: Sick
Description: Miniature Light Barrier
Type: WSE4S-3F3430V
Scope of delivery for the one-way system: Transmitter and receiver

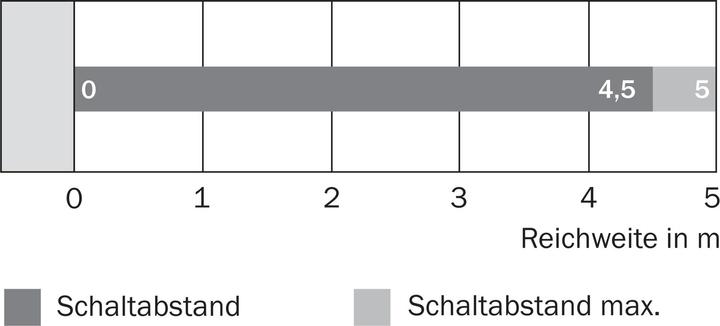

Rated switching distance: 4500 mm
Max. switching distance: 5000 mm
Max. output current: 100 mA
Number of contact outputs with signaling function: 1
Interface design for safety-oriented communication: other
Electrical connection design: Cable with connector
Switch output design: PNP
Protection class: Protection class 3
Explosion protection category for gas: none
Explosion protection category for dust: none
Housing design: Rectangular
Width of the sensor: 15.25 mm
Height of the sensor: 49.2 mm
Length of the sensor: 22.2 mm
Switching function: Dark-switching
Material of the optical surface: Plastic
Material of the housing: Metal
Max. output current at the safe output: 100 mA
Ambient temperature: -30 °C
Response time: 0.5 ms
Range of the protective field: 2 m
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Rated control supply voltage Us at DC: 10..30 V
Voltage type: DC
Wavelength of the sensor: 650 nm
Light type: Polarized red light
Light spot: 50 mm²
Material of the cable sheath: Polyvinyl chloride (PVC)
Protection rating (IP): IP66

Sick Light Barrier WSE4S-3F3430V: additional details

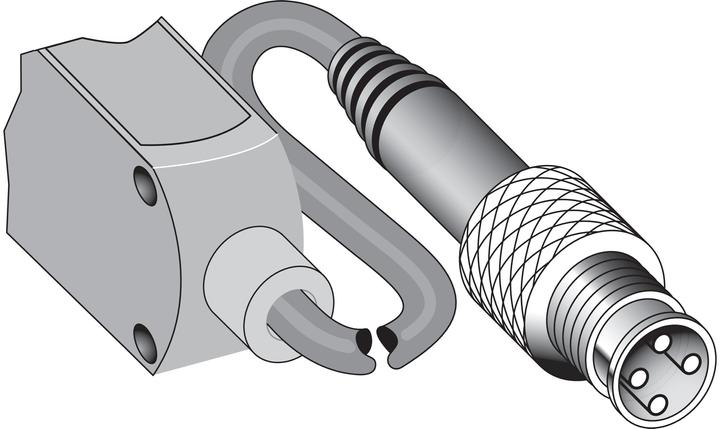

Miniature light barriers, W4S-3 Inox, WSE4S-3F3430V, max. switching distance: 0 m ... 5 m, Sensor principle: One-way light barrier, Switching output: PNP, Switching type: Dark-switching, Connection type: Cable with M12 connector, 4-pole, 150 mm, Light emitter: PinPoint LED, Adjustment: None, Communication interface: -, EAN: 4047084225192.

Key specifications

type of sensor
PIR
Range
4.50 m

General information

Item number
36788312
Manufacturer
Sick
Category
Motion sensors
Manufacturer no.
1052885
Release date
28.6.2023

Material

Material group
Metal
Material
Metal, Stainless steel V4A (1.4404, 316L)

Motion sensor properties

Application range
Indoor
type of sensor
PIR
Range
4.50 m
Protection type (IP code)
IP69K

Power supply

Power supply
Electrical connection
Output voltage
30 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
11.08 kg
Climate contribution
CHF 0.26

Scope of delivery

Items per sales unit
1x
Scope of delivery
Transmitter and receiver

Product dimensions

Length
2.22 cm
Height
4.92 cm
Weight
60 g
