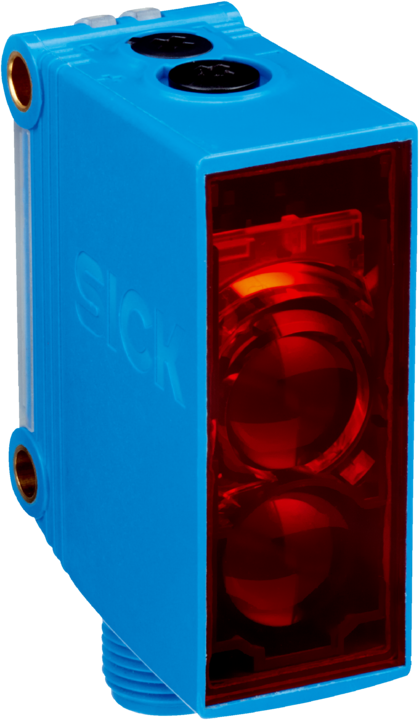

Sick GTB10-P4211 Small photoelectric sensors, GTB10-P4211 GTB10P4211

Sick Small Light Barrier GTB10-P4211

Manufacturer: Sick
Designation: Small Light Barrier G10
Type: GTB10-P4211
Sensing Range: 700 mm
Triangulation: Background Suppression
Max. Switching Distance: 950 mm
Max. Output Current: 100 mA

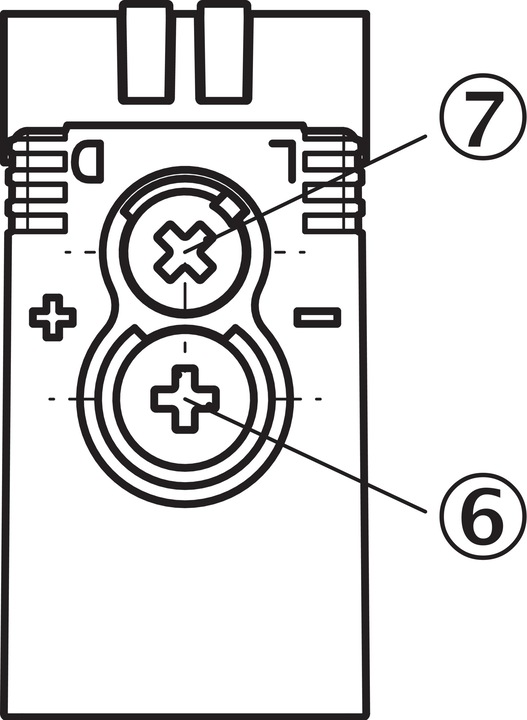

Adjustment Method: Parameterization
Number of Contact Outputs with Signaling Function: 1
Interface Type for Safety-Related Communication: Other

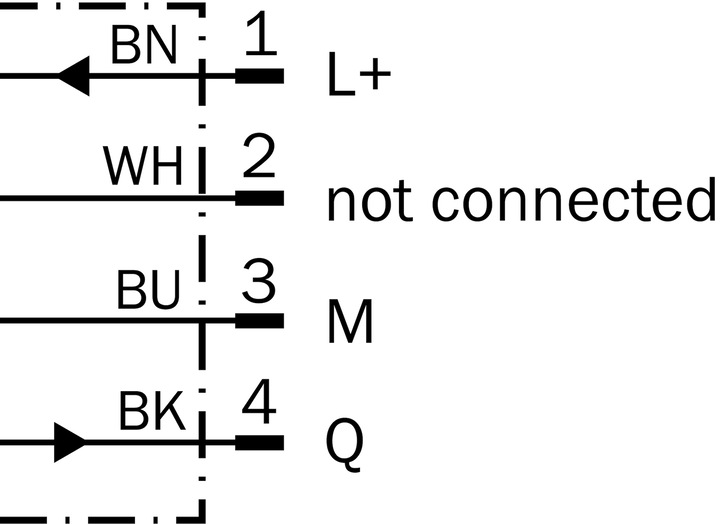

Electrical Connection Type: M12 Connector
Output Type: PNP
Switching Function Type: Other
Protection Class: Protection Class 3
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None

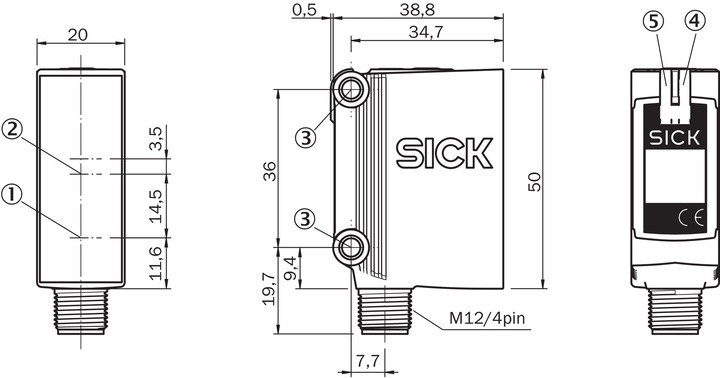

Housing Design: Rectangular
Sensor Width: 20 mm
Sensor Height: 50 mm
Sensor Length: 39 mm
Switching Function: Light/Dark Switching
Housing Material: Plastic
Max. Output Current at Safe Output: 100 mA
Ambient Temperature: -30 °C
Response Time: 0.5 ms
Detection Field Range: 0.7 m
Switching Frequency: 1000 Hz
Rated Control Supply Voltage Us at AC 50 Hz: 10 V
Rated Control Supply Voltage Us at DC: 10..30 V
Voltage Type: DC
Sensor Wavelength: 625 nm
Light Type: Polarized Red Light

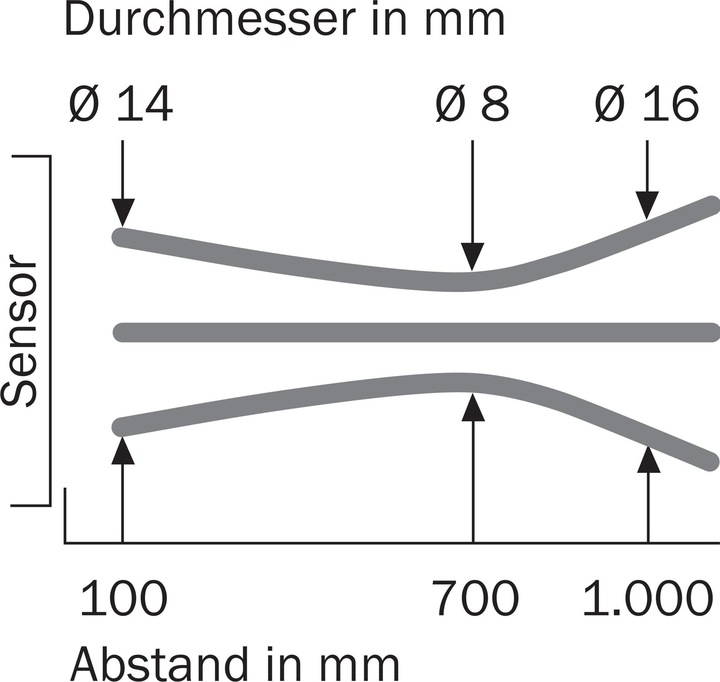

Light Spot: 8 mm²
Protection Rating (IP): IP67

Additional Details:
Small Light Barriers, G10, GTB10-P4211, Max. Switching Distance: 20 mm to 950 mm, Sensor Principle: Reflective Light Switch, Detection Principle: Background Suppression, Switching Output: PNP, Switching Type: Light/Dark Switching, Connection Type: M12 Connector, 4-Pole, Light Emitter: PinPoint LED, Adjustment: Potentiometer.
