Product details

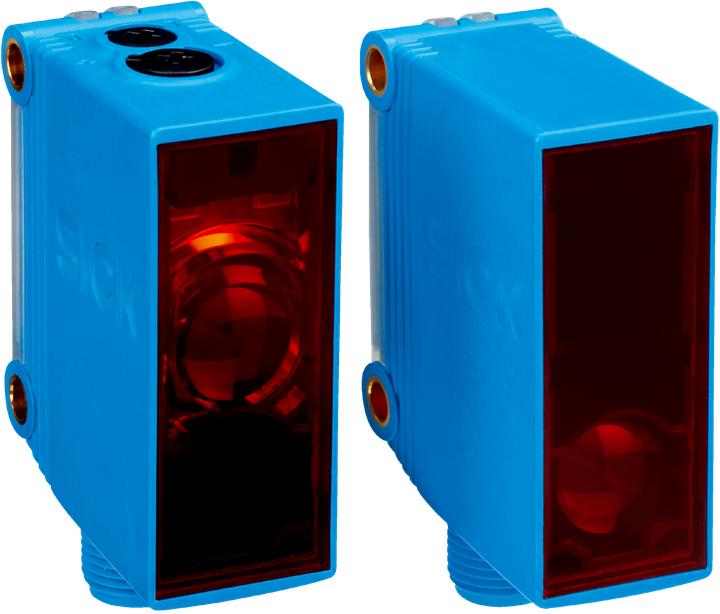

Sick Mini Light Barrier GSE10-P4211

Manufacturer: Sick
Designation: Mini Light Barrier G10
Type: GSE10-P4211

Scope of delivery for the one-way system: Transmitter and receiver

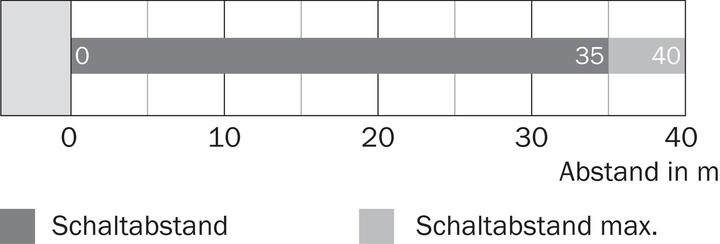

Rated switching distance: 35,000 mm
Max. switching distance: 40,000 mm
Max. output current: 100 mA
Adjustment method: Parameterization
Number of contact outputs with signaling function: 1
Interface design for safety-related communication: other

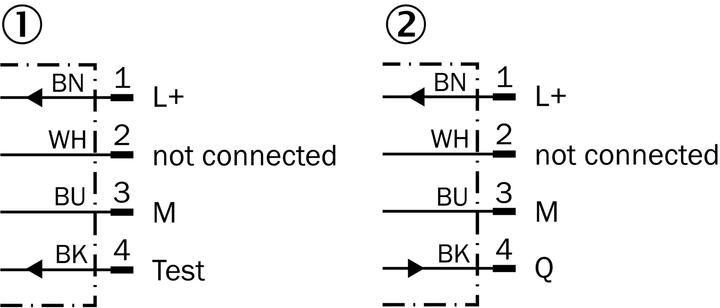

Electrical connection design: M12 connector
Output type: PNP
Degree of protection: Protection class 3
Explosion protection category for gas: none
Explosion protection category for dust: none

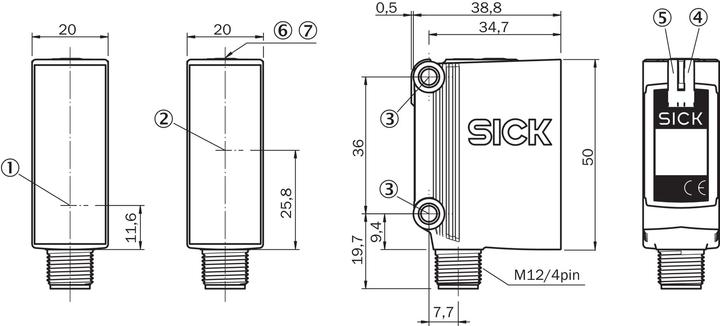

Housing design: Rectangular
Sensor width: 20 mm
Sensor height: 50 mm
Sensor length: 39 mm
Switching function: light/dark switching
Housing material: Plastic
Max. output current at the safe output: 100 mA
Response time: 0.5 ms
Range of the protective field: 15 m
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Rated control supply voltage Us at DC: 10..30 V
Voltage type: DC
Wavelength of the sensor: 625 nm
Light type: Polarized red light

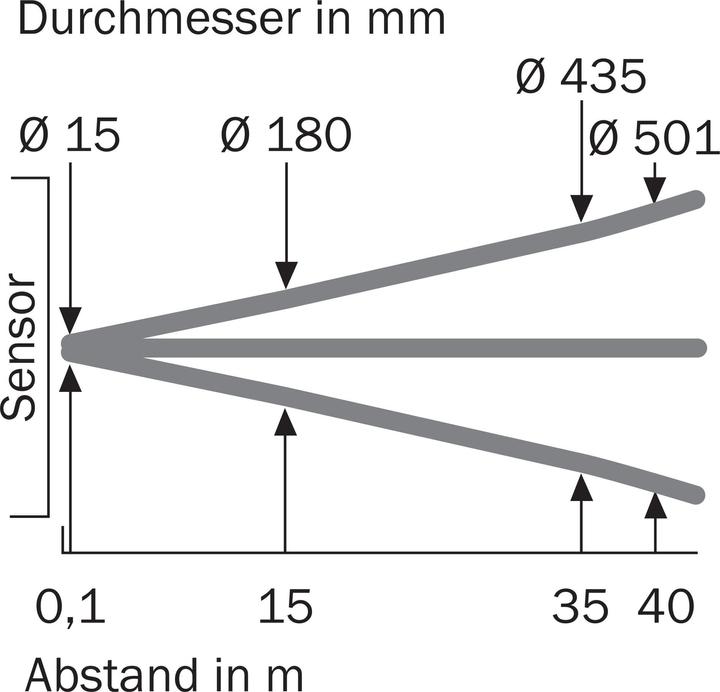

Light spot: 180 mm²
Cable sheath material: Polyvinyl chloride (PVC)
Suitable for safety functions: yes
Protection class (IP): IP67

Sick Mini Light Barrier GSE10-P4211: additional details
Mini light barriers, G10, GSE10-P4211, max. switching distance: 0 m ... 40 m, Sensor principle: One-way light barrier, Output type: PNP, Switching type: light/dark switching, Connection type: M12 connector, 4-pole, Light emitter: PinPoint LED, Adjustment: Potentiometer, Communication interface: -, EAN: 4047084307454.

Key specifications

type of sensor
Optical
Range
35 m

General information

Item number
31350368
Manufacturer
Sick
Category
Motion sensors
Manufacturer No.
1064706
Release date
24.9.2022

Material

Material group
Plastic
Material
ABS/PMMA, Plastic

Motion sensor properties

type of sensor
Optical
Range
35 m
Protection type (IP code)
IP67

Power supply

Power supply
USB power delivery

Origin

Country of origin
Malaysia

Scope of delivery

Scope of delivery
4-pole, Communication interface: -, Electrical connection design: M12 plug connector, Light emitter: PinPoint LED, Max. Output current: 100 mA, Max. Switching distance: 40000 mm, Number of contact-based outputs with signalling function: 1, Rated operating distance: 35000 mm, Setting procedure: Parameterisation, Setting: Potentiometer, Transmitter and receiver

Product dimensions

Length
3.90 cm
Width
2 cm
Height
5 cm
Weight
70 g
