Sick GL6-P0311S40

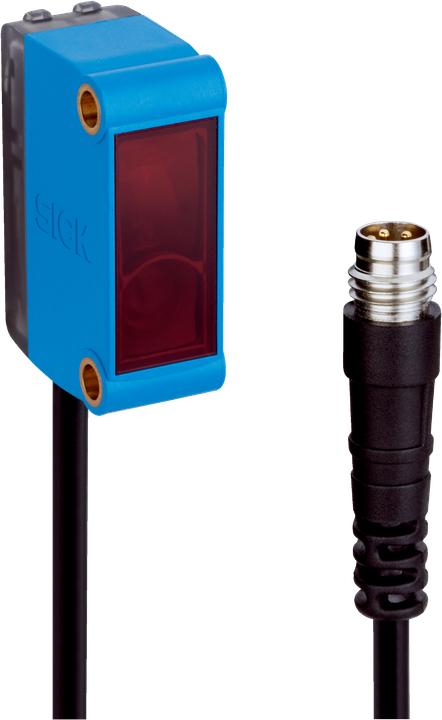

Sick miniature photoelectric sensor GL6-P0311S40

Manufacturer: Sick
Designation: Miniature photoelectric sensor
Type: GL6-P0311S40
Rated switching distance: 5000 mm
Max. switching distance: 6000 mm
Design of interface for safety-related communication: Other

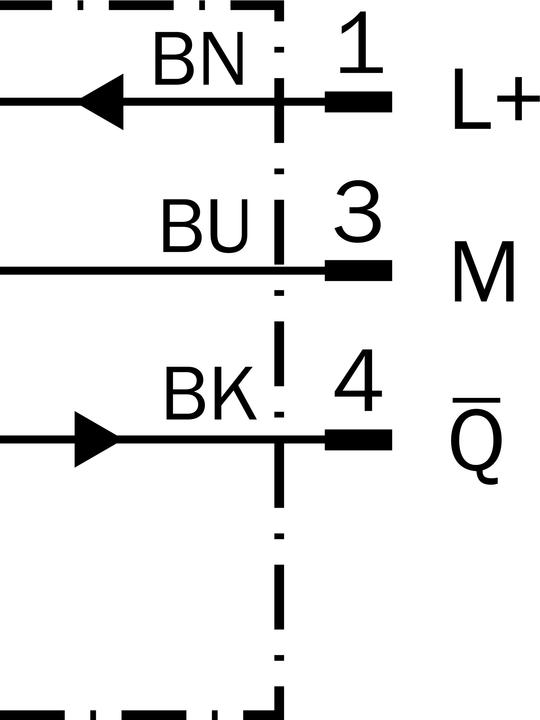

Design of electrical connection: Cable with plug connector
Design of switching output: PNP
Equipment protection class: Protection class 3
Housing design: Cuboid

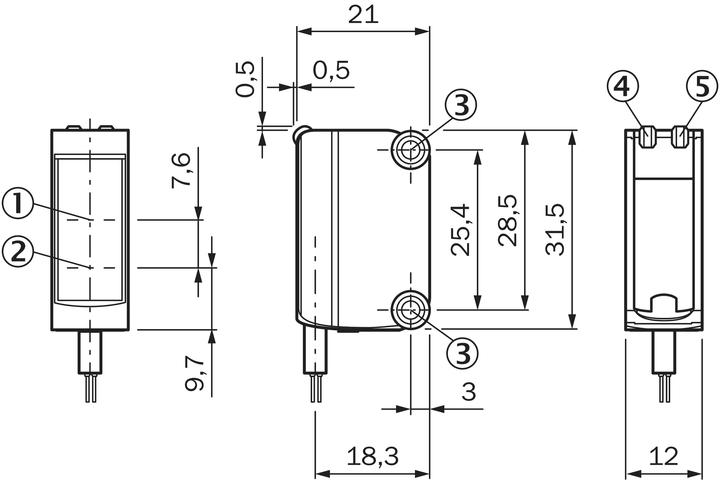

Width of sensor: 12 mm
Height of sensor: 31.5 mm
Length of sensor: 21 mm
Scanning function: Dark switching
Material of optical surface: Plastic
Material of housing: Plastic
Max. output current at safe output: 100 mA
Ambient temperature: 55 °C
Response time: 0.625 ms
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Voltage type: DC
Wavelength of sensor: 650 nm
Light type: Red light polarized
Protection class (IP): IP67

Further details:
Miniature photoelectric sensors, G6, GL6-P0311S40, Device type: photoelectric proximity switches and photoelectric sensors, Switching distance max.: 6 m, Sensor principle: Retro-reflective photoelectric sensor, Detection principle: Double lens, Switching output: PNP, Switching type: Dark switching, Connection type: Cable with plug M8, 3-pin, Light emitter: PinPoint LED, Light type: Visible red light, Housing material: ABS/PC, Setting: None, EAN: 4047084375927.
