Product details

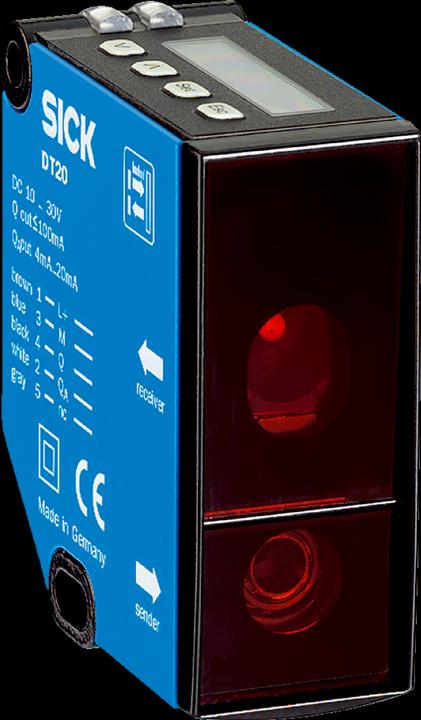

Sick distance sensor pushbutton DT20-P214B Manufacturer :Sick Designation :Distance sensor pushbutton Type :DT20-P214B Type of electrical connection :other Equipment protection class :Protection class 2 Supply voltage :10..30 V Width of sensor :24.3 mm Height of sensor :72.4 mm Length of sensor :54.1 mm Laser protection class :Class 2 Type of light :Red light polarised Max. output current :20 mA Measuring range Length :600 mm Measuring method for optical distance measurement :other Protection class (IP) :DC Voltage type :DC Ambient temperature :-20..55 °C Output current :20 mA Measuring range length :600 mm Measuring method for optical distance measurement :other Protection class (IP) :IP65 Voltage type :DC Ambient temperature :-20..55 °C Material of optical surface :Plastic Material of housing :other Sick distance sensor DT20-P214B: more details Displacement measurement sensors, DT20 Hi, DT20-P214B, measuring range: 100 mm ... 600 mm, Type of analogue output: Current output, Type. Light spot size (distance): 3 mm x 6 mm (600 mm), Housing material: Metal, Laser class: 2, Connection type: Plug, M12, 5-pin, rotatable plug unit, Digital output: 1 x PNP , EAN: 4047084140440.
Accessory type | Replacement parts |
Suitable for | Motion sensor |
Smart Home | Not compatible |
Items per sales unit | 1 x |
Item number | 36807587 |
Manufacturer | Sick |
Category | Home security accessories |
Manufacturer no. | 1040012 |
Release date | 28.6.2023 |
Material group | Metal |
Material | Metal (die-cast zinc), Plastic (PMMA) |
Accessory type | Replacement parts |
Suitable for | Motion sensor |
Smart Home | Not compatible |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Distance sensor push-button DT20-P214B |
Weight | 135 g |
Length | 5.41 cm |
Width | 2.43 cm |
Height | 7.24 cm |
